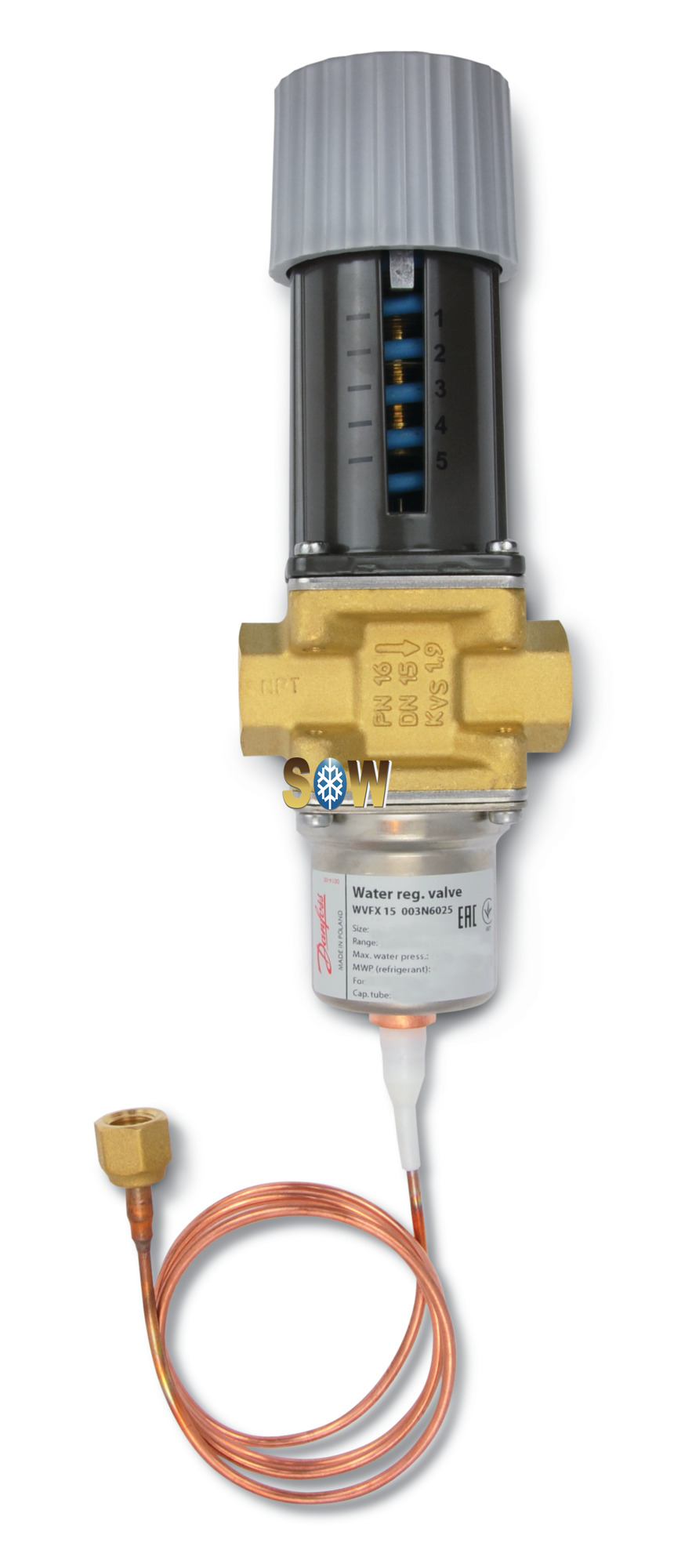

Name:	Danfoss Pressure operated water valve, WVFX 15, 003N6025
Brand:	Danfoss
Model No.:	WVFX 15
Part No.:	003N6025
Country of origion:	Poland
G.W:	1.446kgs/pc
Connection type:	NPT
Connection size [in]:	1/2-14
Cv value [gal/min]:	2.2
configuration:	Opens on rising cond. pressure
Control pressure range [bar]:	4 bar - 23 bar
Kv value [m³/h]:	1.9 m³/h

Danfoss Pressure operated water valve, WVFX 15, 003N6025

Product details

Gross weight	1.446 Kilogram
Net weight	1.13 Kilogram

Volume	4.082 Liter
EAN	5702428866842

Approval	C UL US LISTED EAC LLC CDC TYSK PED RoHS RoHS China
Approval file name	REFRIGERANT VALVE 53R0
Body material	Brass
Cap. tube length fraction [in]	31 31/64 in
Capillary tube length [mm]	800 mm
China RoHS compliance	Yes
Connection Internal/External	Internal
Connection size [in]	1/2-14
Connection standard	ANSI/ASME B1.20.1
Connection type	NPT
Contain batteries	No
Control pressure range [bar] [Max]	23 bar
Control pressure range [bar] [Min]	4 bar
Control pressure range [psig] [Max]	333 psig
Control pressure range [psig] [Min]	60 psig
Cv value [gal/min]	2.2 gal/min
Differential pressure [bar]	10 bar
Differential pressure [psi]	145 psi
Equipment	Schrader valve
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(b) 6(c)
Kv value [m³/h]	1.9 m³/h
Lubricants compatibility	Oilfree applications
Max. test pressure [bar] Pe	24 bar
Max. test pressure [psig]	348 psig
Max. Working Pressure [bar]	16 bar
Max. Working Pressure [psig]	232 psig

Max.test press.(refrig.)[bar]	29 bar
Max.test press.(refrig.)[psig]	420.6 psig
Media	Fresh water Neutral brine
Medium temperature range [°C] [Max]	130 °C
Medium temperature range [°C] [Min]	-25 °C
Medium temperature range [°F] [Max]	266 °F
Medium temperature range [°F] [Min]	-13 °F
MWP (refrigerant) [bar]	26.4 bar
MWP (refrigerant) [psig]	383 psig
Oil free refrigerants	R513A
Opening configuration	Opens on rising cond. pressure
Orifice size [mm]	15 mm
Orifice size fraction [in]	3/5 in
Packing format	Multi pack
Product accessories	Generic accessories Water valves accessories
Product group	Water regulating valves
Product name	Pressure operated water valve
Quantity per packing format	10 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R1234yf R1270 R134a R22 R290 R404A R407A R407C R407F R407H R422B R422D R448A R449A R449B R450A R452A R454A R454C R455A R507A R513A R515B R516A R600 R600a
SCIP dossier no.	fc3470cc-5810-44ef-89ac-d393613841da
SCIP dossier product name	WV Valves
Serviceable	Water valve spare parts
Type	WVFX 15
UL approved refrigerants	R134a R22 R404A R407A R407C R407F R407H R422B R422D R448A R449A R449B R450A R452A R507A R513A R515B R516A
UL evaluated	Yes
