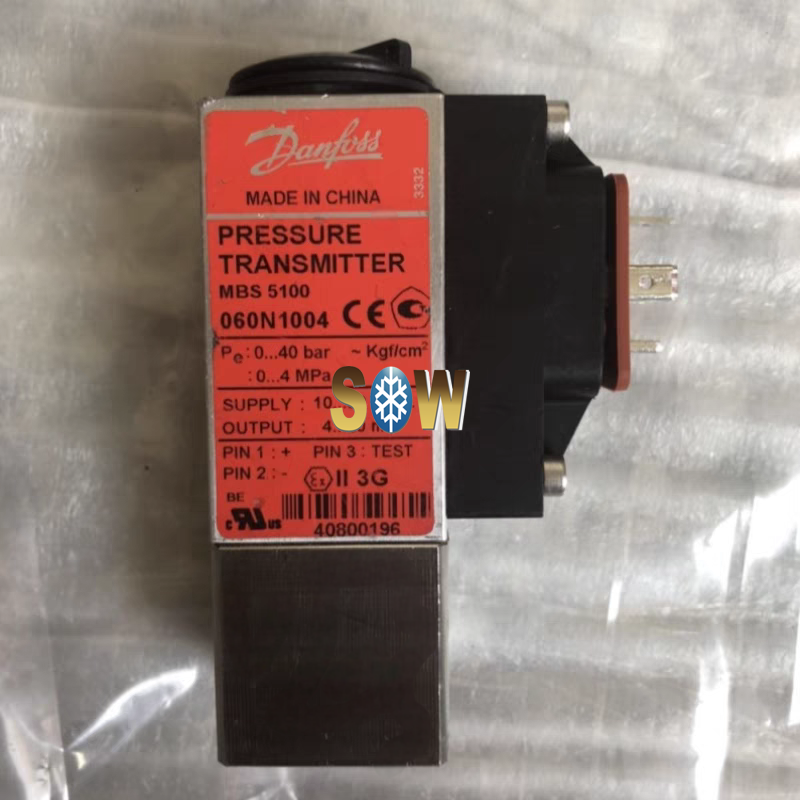

Name:	Danfoss Pressure transmitter, MBS 5100, 060N1004
Brand:	Danfoss
Model No.:	MBS 5100
Part No.:	060N1004
Country of origion:	China
G.W:	0.393kgs/pc
Pressure connection type:	G
Pressure connection size:	1/4
Specification key:	MBS 5100-2631-A6CB04-4
Pressure range [bar]:	0 bar - 40 bar,
Pressure range [psi]:	0 psi - 580 psi

Danfoss Pressure transmitter, MBS 5100, 060N1004

Product details

Gross weight	0.393 Kilogram
Net weight	0.321 Kilogram

Volume	0.647 Liter
EAN	5702423059584

+ supply	Pin 1
- common	Pin 2
Accuracy, max. +/- FS [%]	0.3 %
Accuracy, typical +/- FS [%]	0.1 %
Adj. zero point and span	No
Ambient temperature range [°C] [max]	85 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [Max]	185 °F
Ambient temperature range [°F] [Min]	-40 °F
Approval	CE C UL US UL Recognized
CE evaluated	Yes
China RoHS compliance	Yes
Compensated temp. range [°C] [Max]	80 °C
Compensated temp. range [°C] [Min]	0 °C
Compensated temp. range [°F] [Max]	176 °F
Compensated temp. range [°F] [Min]	32 °F
Contain batteries	No
EEE category	5 small equipment (any external dimension < 50 cm)
Electrical conn. Male/Female	Male and Female
Electrical connection	Angular connector
Electrical connection size	Pg 11
Electrical connection standard	EN 175301-803-A
Enclosure rating IP	IP65
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
Flush diaphragm	No
High Clipping Level	22.4
In scope of WEEE	Yes
International Article Number	5702423059584
Intrinsically safe	No
Low Clipping Level	3.6
Medium temperature range [°C] [Max]	85 °C

Medium temperature range [°C] [Min]	-40 °C
Medium temperature range [°F] [Max]	185 °F
Medium temperature range [°F] [Min]	-40 °F
Non-linearity BFSL ±FS [%]	0.2 %
Output signal	Current
Output signal [mA] [Max]	20 mA
Output signal [mA] [Min]	4 mA
Overload pressure max. [bar]	100 bar
Packing format	Multi pack
Pressure connection size	1/4
Pressure connection standard	ISO 228-1
Pressure connection type	G
Pressure Male/Female	Female
Pressure range [bar] [Max]	40 bar
Pressure range [bar] [Min]	0 bar
Pressure range [psi] [Max]	580 psi
Pressure range [psi] [Min]	0 psi
Pressure unit reference	Sealed gauge
Product group	Sensors
Product name	Pressure transmitter
Pulse-snubber	No
Quantity per packing format	8 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Response time max. [ms]	4 ms
SCIP dossier no.	16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d
SCIP dossier product name	AKS/MBS
Specification key	MBS 5100-2631-A6CB04-4
Supply voltage [V] DC [max]	32 V
Supply voltage [V] DC [min]	9 V
Test Signal	Pin 3
Type	MBS 5100
UL evaluated	Yes
