Dixell Digital Temperature Controller XR30CX-5N1C1

XR30CX-5N1C1 Digital Temperature Thermostat Controller,230V/50Hz-60Hz Off Cycle Defrost Compressor with NTC Probes for Commercial Home Refrigerators Cold Storage.

The XR30CX-5N1C1 thermostat controller ensures precise temperature control for refrigeration applications at normal temperatures

This controller is suit for including Chest Freezer,Compact Fridge,Compressor Wine Fridge,Kegerator Tank/Cartridge,Larder Fridge,Mini Freezer,Mini Fridge.

The off cycle defrost function helps to prevent ice buildup on the evaporator coils.

User-friendly digital interface allows easy setup and adjustment of temperature settings for system control.

Includes 2 NTC probes for accurate temperature sensing in demanding environments like food service or industrial storage.

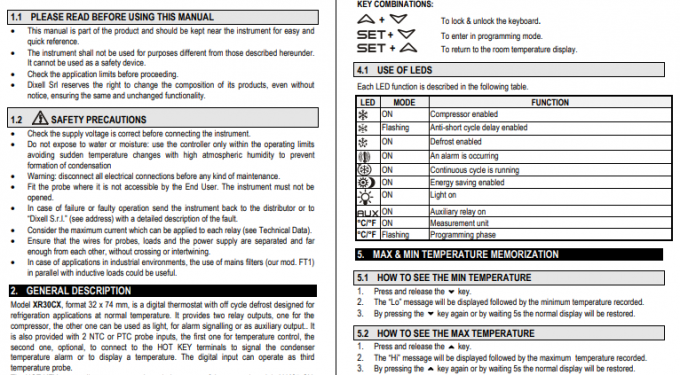

GENERAL DESCRIPTION

Model XR30CX, format 32 x 74 mm, is a digital thermostat with off cycle defrost designed for refrigeration applications at normal temperature.

It provides two relay outputs, one for the compressor, the other one can be used as light, for alarm signalling or as auxiliary output..

It is also provided with 2 NTC or PTC probe inputs, the first one for temperature control, the second one, optional, to connect to the HOT KEY terminals to signal the condenser temperature alarm or to display a temperature.

The digital input can operate as third temperature probe. The HOT KEY output allows to connect the unit, by means of the external module XJ485-CX, to a network line ModBUS-RTU compatible such as the Dixell monitoring units of X-WEB family. It allows to program the controller by means the HOT KEY programming keyboard.

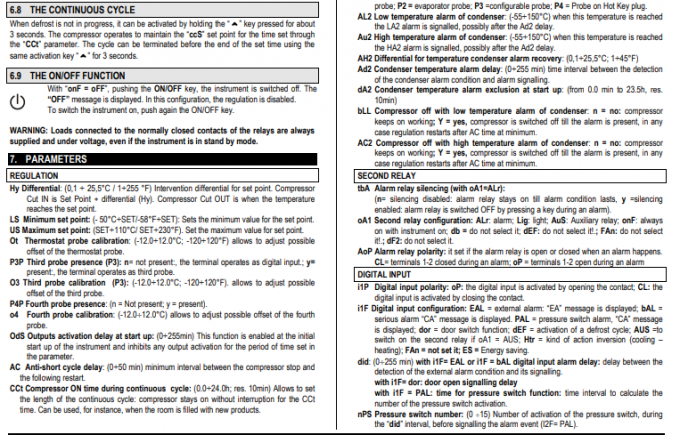

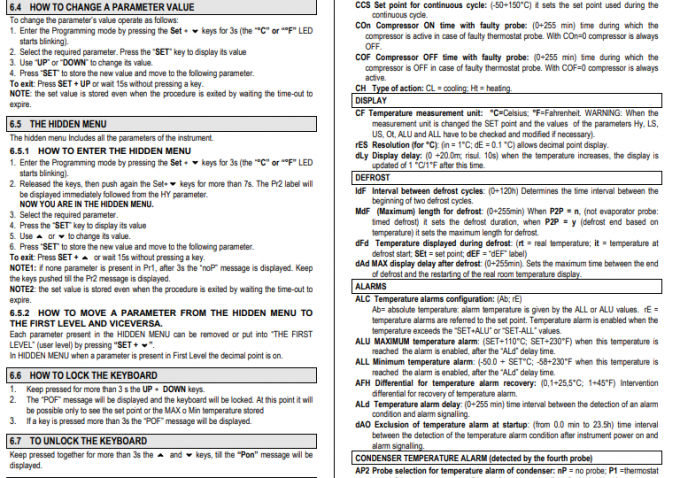

The instrument is fully configurable through special parameters that can be easily programmed through the keyboard.

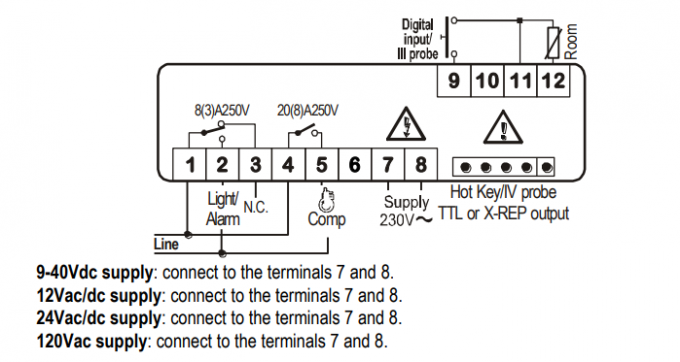

Connection diagram:
