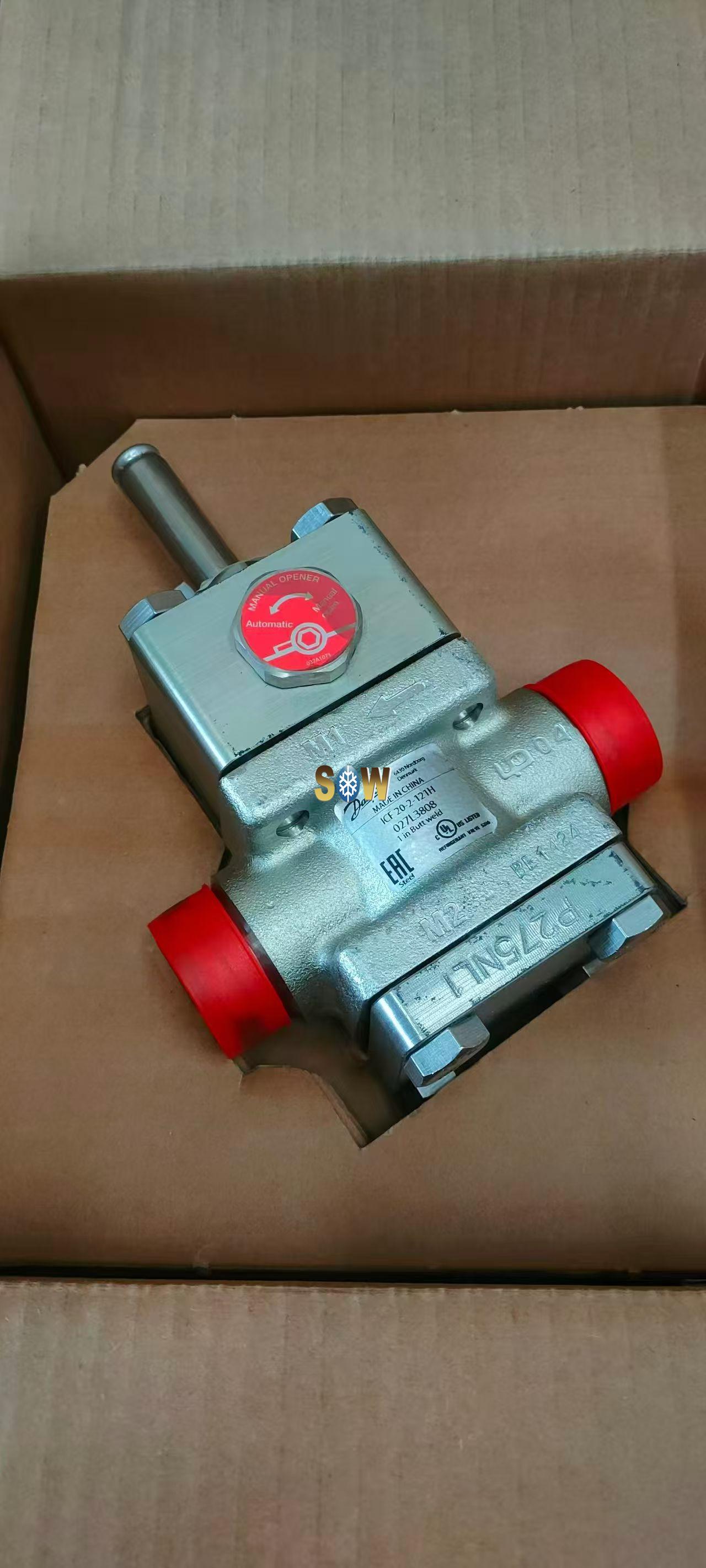

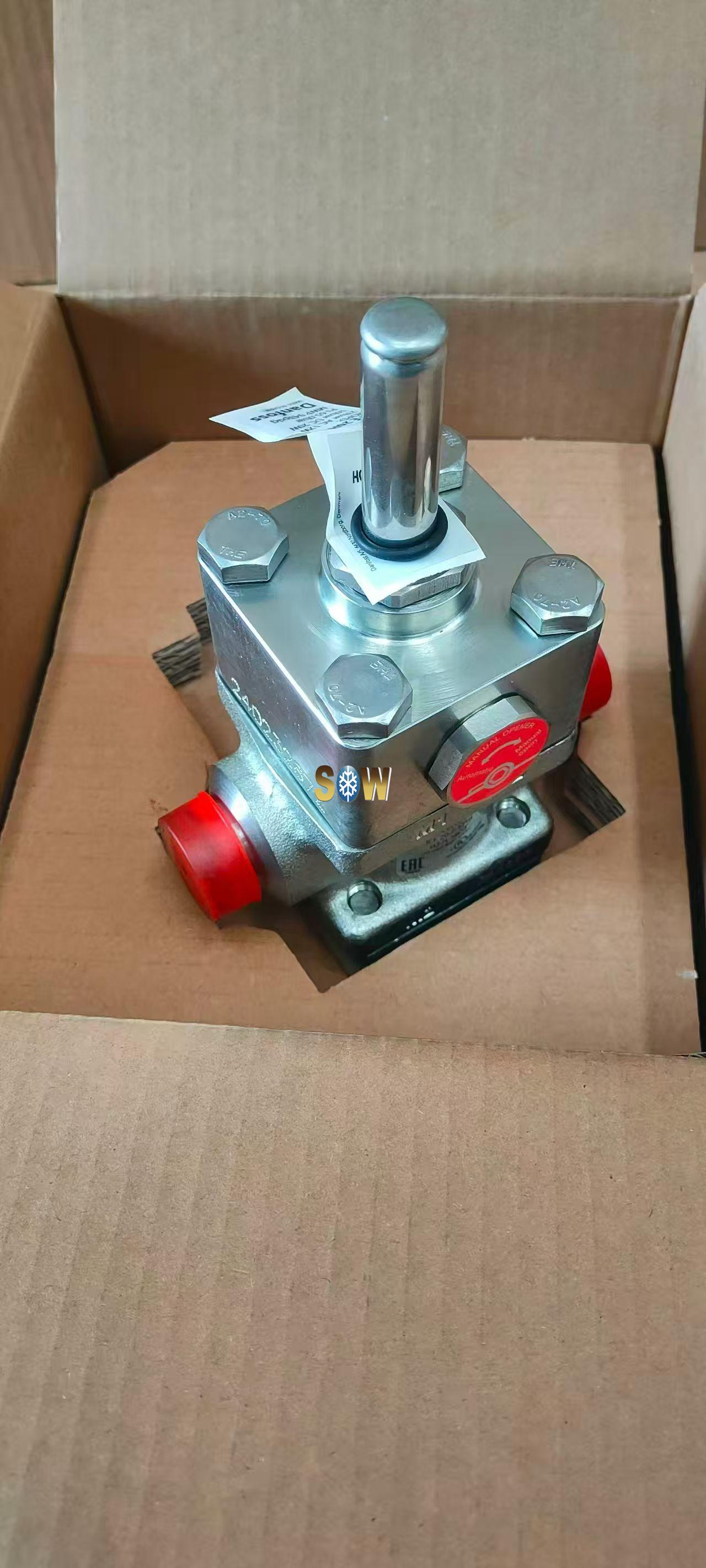

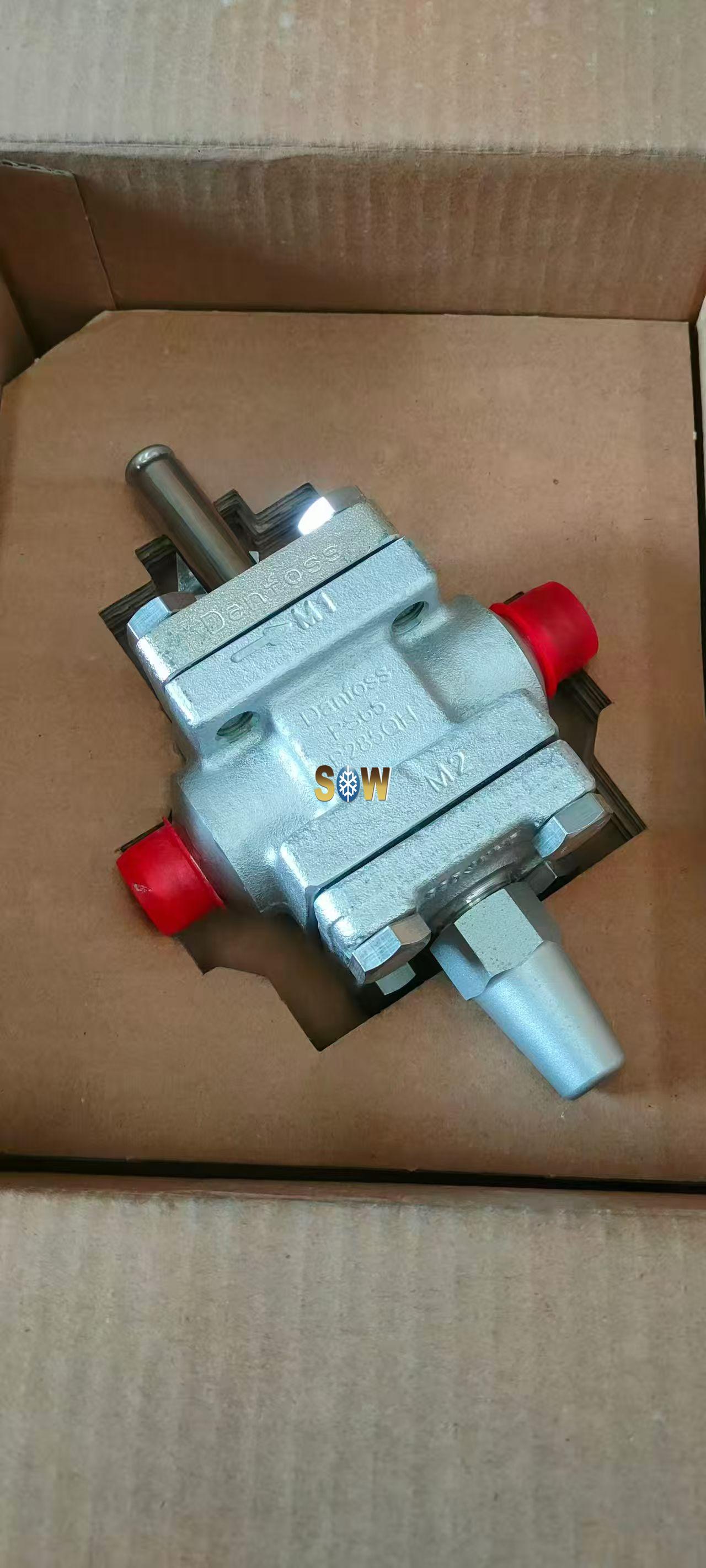

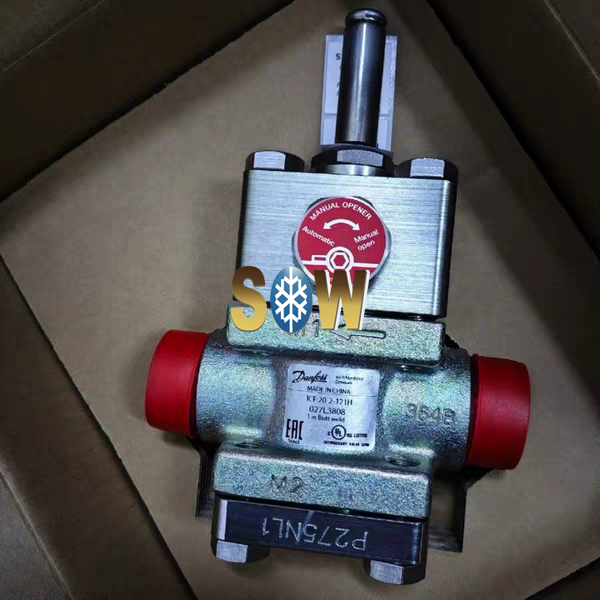

Danfoss Valve station, ICF 20-2-121H, 027L3808

Characteristic	Value
Approval	EAC, LLC CDC TYSK, TÜV, UL
Body material	Steel
China RoHS compliance	Yes with exemptions
China RoHS exemption clause	7.1, 7.2
Connection material	Steel
Connection size [in]	1 in
Connection size [mm]	25 mm
Connection standard	ANSI B 36.10
Connection type	Butt weld
Contains batteries	No
DG Indicator Profile	Not relevant for dangerous goods
Direction	Straightway
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(a), 6(b)
Flow direction indicator	Embossed 1-way arrow
Fluid Group	1
Material Description	Valve Station ICF 20-2-121H
Max. Working Pressure [bar]	65.0 bar
Max. Working Pressure [psig]	943 psig
Module 1	Solenoid valve
Module 1 type	ICFE 20-H
Module 2	Blank top cover

Characteristic	Value
Module 2 type	ICFB 20
Packing format	Single pack
PED category	Art. 4, par. 3
Product accessories	ICF accessories
Product description	Control Solution
Product group	Multifunction valves
Product line	Industrial Refrigeration
Product name	Valve station
Product Type	ICF 20-2-121H
Quantity per packing format	1 pc
REACH Candidate List substances
