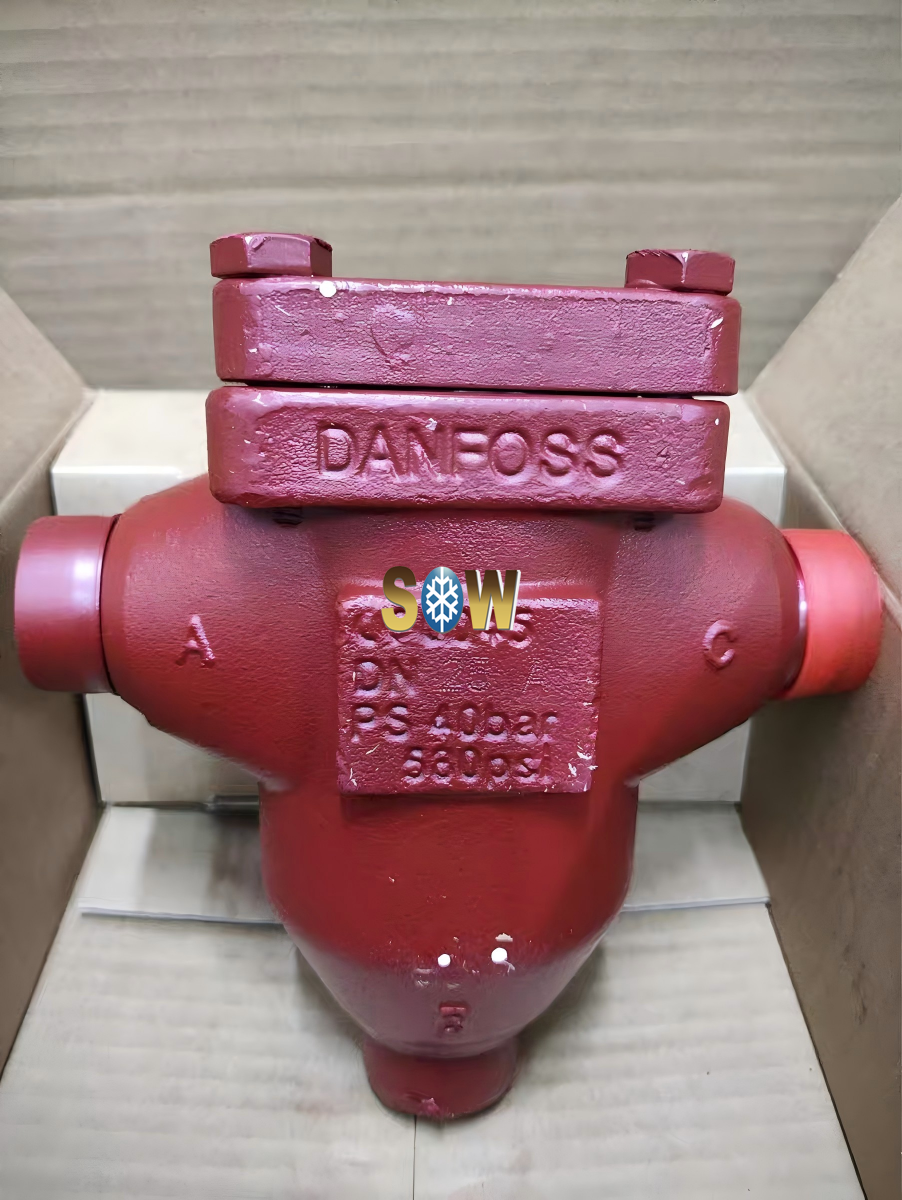

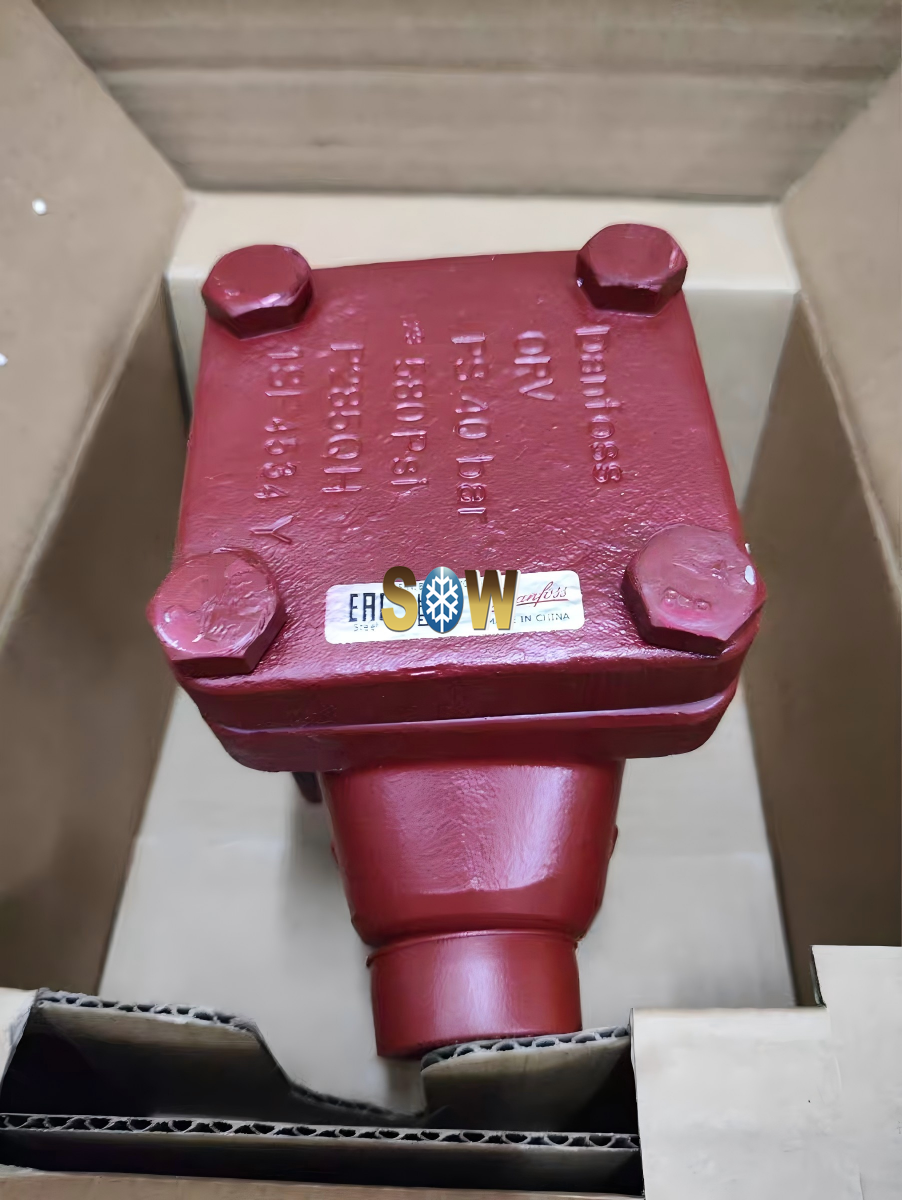

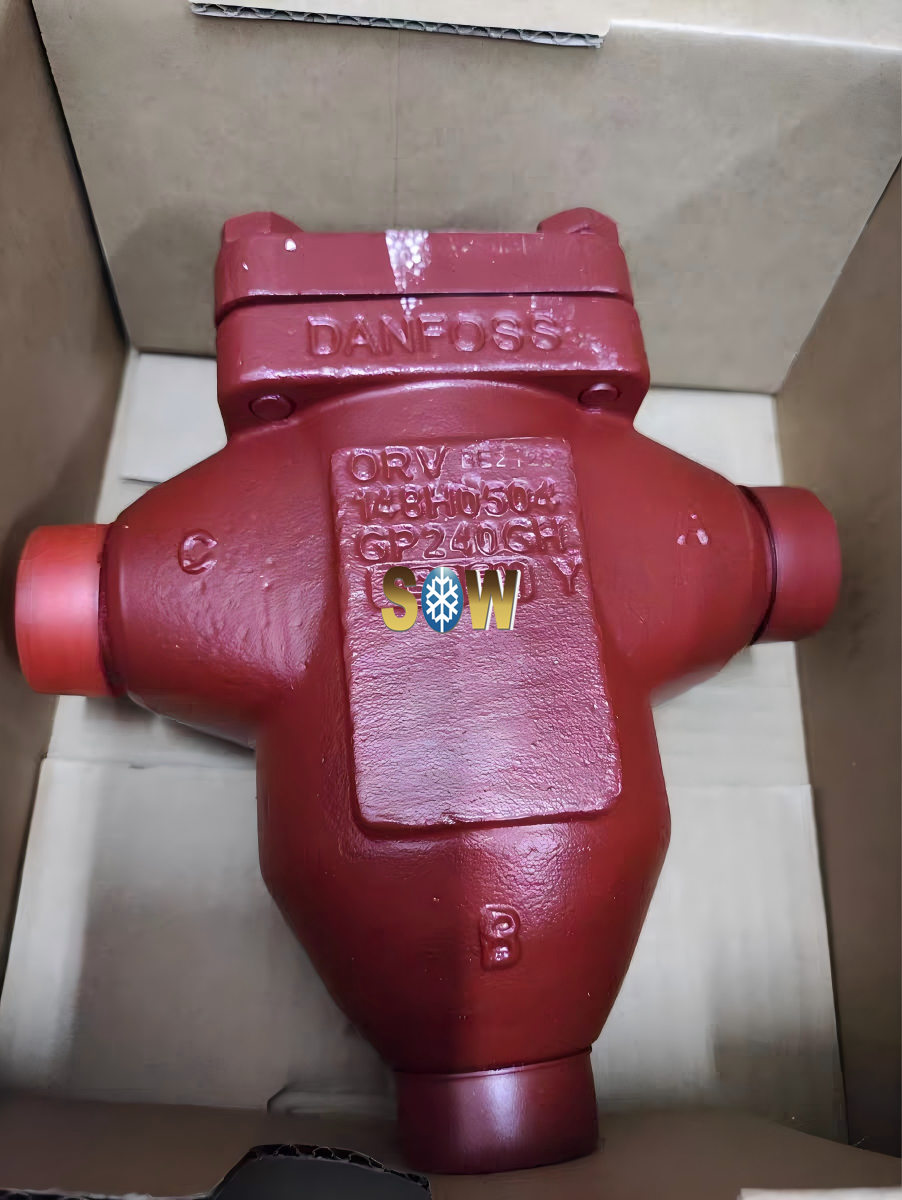

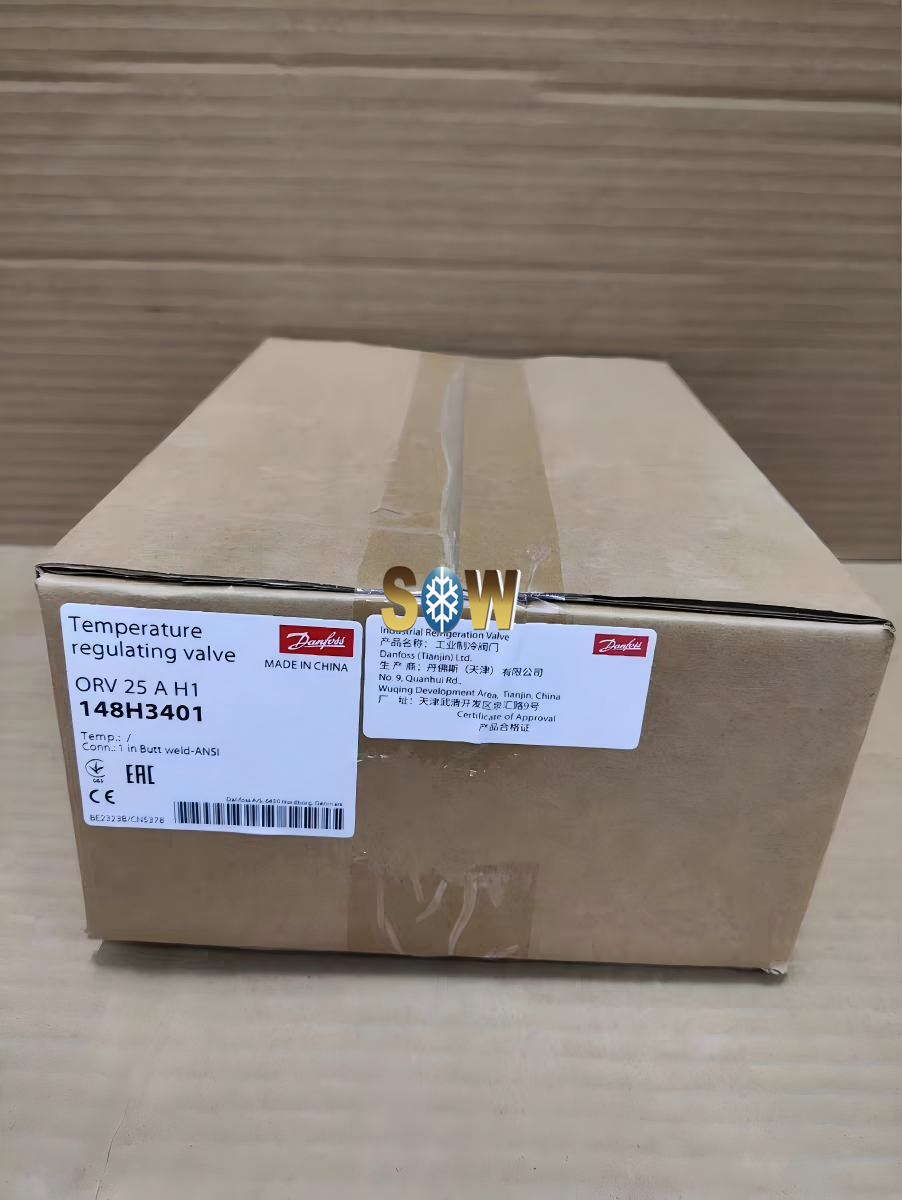

Name:	Danfoss Temperature regulating valve, ORV 25, Steel 148H3401
Brand:	Danfoss
Model No.:	ORV 25
Part No.:	148H3401
Country of origin:	China
G.W:	4.53kgs/pc
Connection size [mm]:	25
Connection type:	Butt weld
Kv value [m³/h]:	15
Max.Working Pressure [bar]::	40

Product Description

Danfoss Temperature regulating valve, ORV 25, Steel 148H3401

Product details

Gross weight	4.53 Kilogram
Net weight	4.219 Kilogram
Volume	5.899 Liter
EAN	5702428229296

Type	ORV 25
Product group	Press. and temp. regul. valves
Product Line	40
Product Name Description	Temperature regulating valve

Approval	CRN LLC CDC TYSK
CE mark	Yes
China RoHS compliance	Yes
China RoHS exemption clause	No
Colour Paint	Reddish brown
Connection material	Steel
Connection size [in]	1 in
Connection size [mm]	25 mm
Connection standard	ASME B 36.10M SCHEDULE 80
Connection type	Butt weld
Contains batteries	No
Cv value [gal/min]	17 gal/min
Direction	Threeway
EU RoHS compliance	Yes
EU RoHS exemption clause	No
Flow direction indicator	Embossed A, B, C

Fluid Group	1 2
Inlet connection size [mm]	25 mm
Kv value [m³/h]	15 m³/h
Lubricants compatibility	AB
Max. Working Pressure [bar]	40 bar
Max. Working Pressure [psig]	580 psig
Packing format	Single pack
Parts Program name	ORV
PED category	Art. 4, par. 3
Product accessories	ORV accessories
Product description	Oil Regulating valve
Quantity per packing format	1 pc
REACH Candidate List substances	No
Refrigerants	R134a R170 R22 R290 R401A R402A R404A R407A Read more
Serviceable	ORV spare parts
Valve housing type	H1
