Location:Index--->Product Center >> HVAC Control cools spare parts >> Danfoss Change-over valve, DSV 2,148F3006

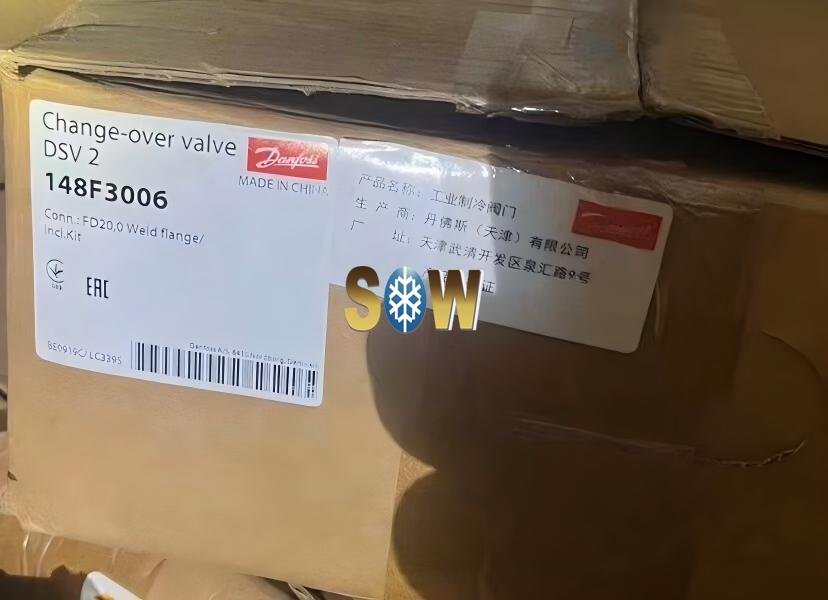

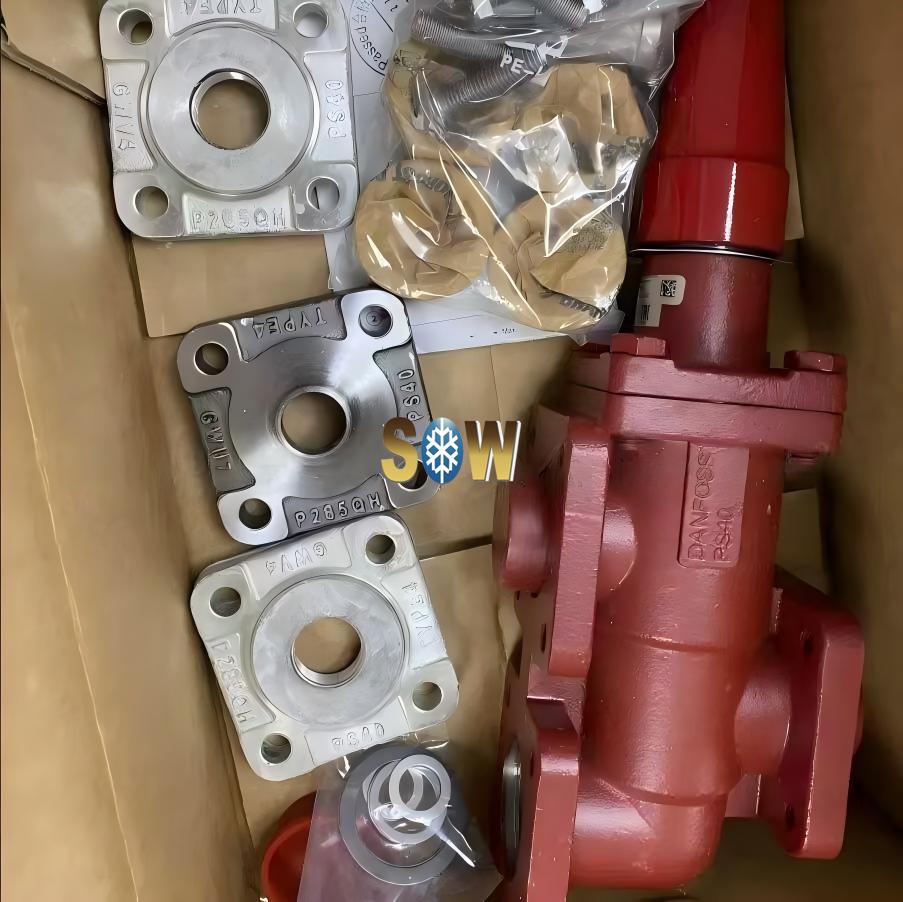

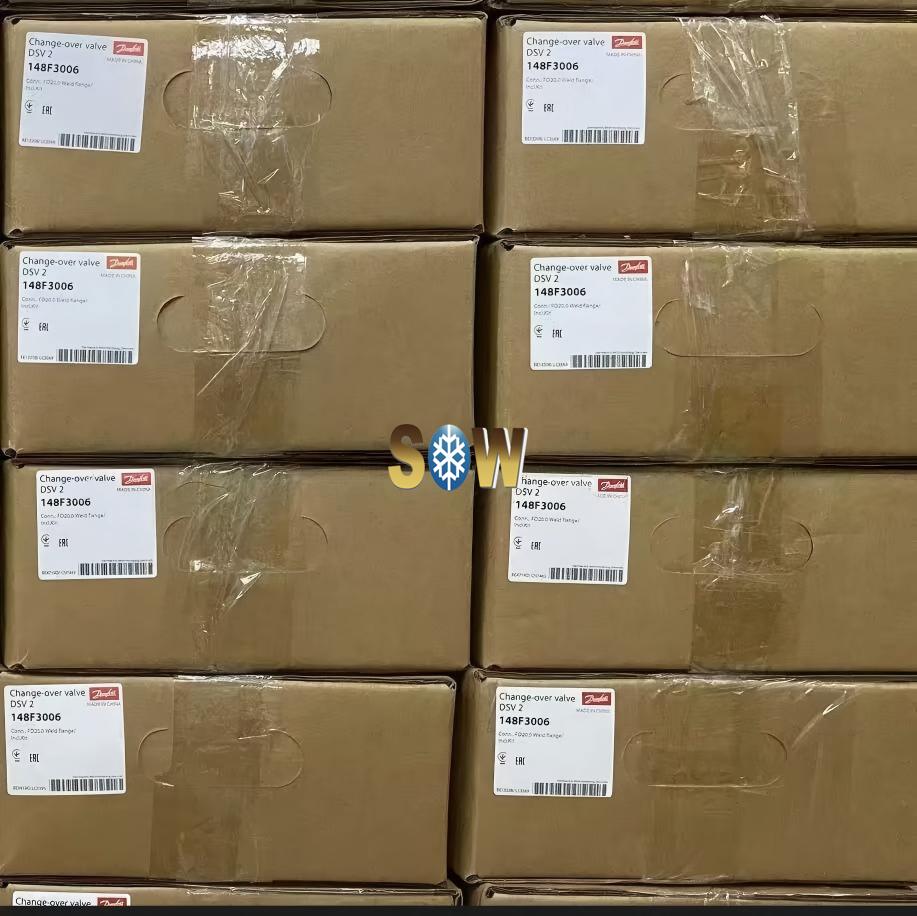

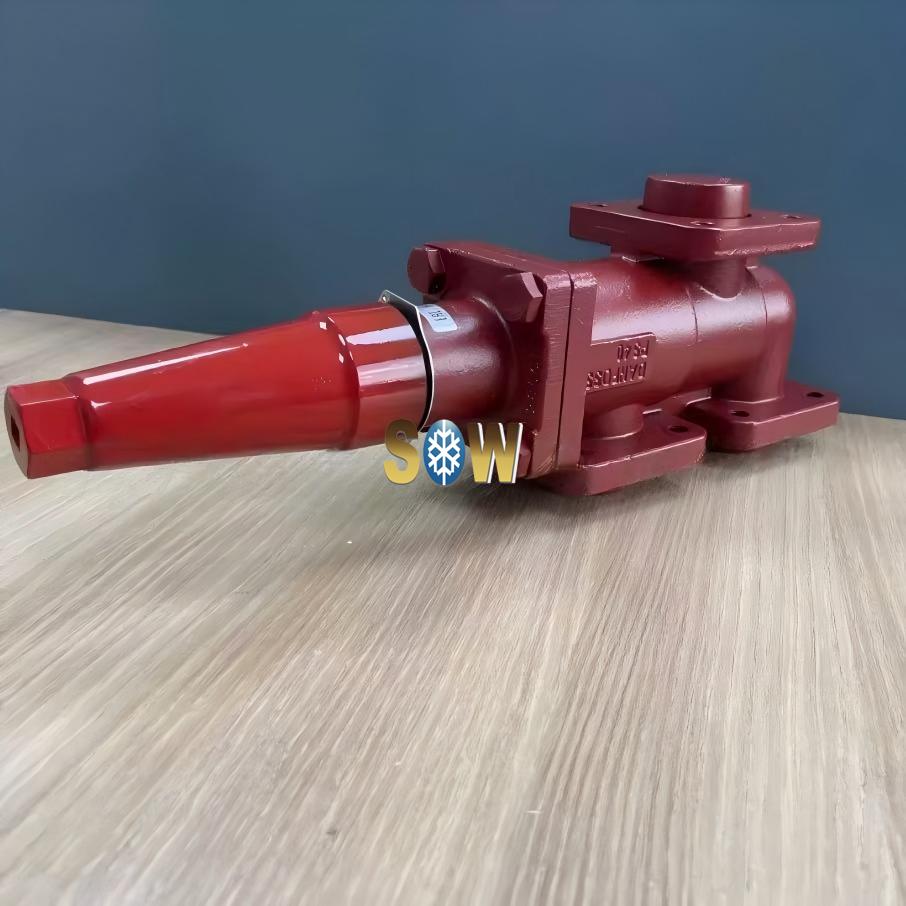

Name:Danfoss Change-over valve, DSV 2,148F3006
Brand:Danfoss
Model No.:DSV 2
Part No.:148F3006
Country of origin:China
G.W:9.74kgs/pc
Inlet connection type:Weld flange
Outlet connection type:G
Inlet connection size [mm]:20
Inlet connection size [in]:3/4 in
Outlet connection size [in]:3/4

Product Description

Danfoss Change-over valve, DSV 2, 148F3006

General specifications

Characteristic
Value
Gross weight
9.74 Kilogram
Net weight
5.9 Kilogram
Volume
10.275 Liter
Characteristic
Value
EAN/UPC
5702428242530
Proposition 65
Cancer and Reproductive Harm

Product specifications

Characteristic
Value
Approval
EAC, LLC CDC TYSK
Category
Art. 3, par. 3
CE evaluated
Yes
China RoHS compliance
Yes
China RoHS exemption clause
No
Colour Paint
Reddish brown
Connection standard
EN 10220, ISO 228-1
Contains batteries
No
Cv value [gal/min]
34.800 gal/min
DG Indicator Profile
Not relevant for dangerous goods
Direction
Threeway
Equipment
Cap
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Fluid Group
1
Inlet connection size [in]
3/4 in
Inlet connection size [mm]
20.00 mm
Inlet connection type
Weld flange
Kv value [m³/h]
30.000 m³/h
Material Description
DSV2 FD20/ND20, DUAL STOPVALVE+KIT
Max. Working Pressure [bar]
40.0 bar
Max. Working Pressure [psig]
580 psig
Outlet connection comments
Thread flange
Characteristic
Hits: 【Print】
Pre:Danfoss Safety relief valve, SFA 15, 148F3211     Next:Danfoss Change-over valve, DSV 2, 148F3009
