Location:Index--->Product Center >> HVAC Control cools spare parts >> Danfoss Shut-off ball valve, GBC 67s 009L7036

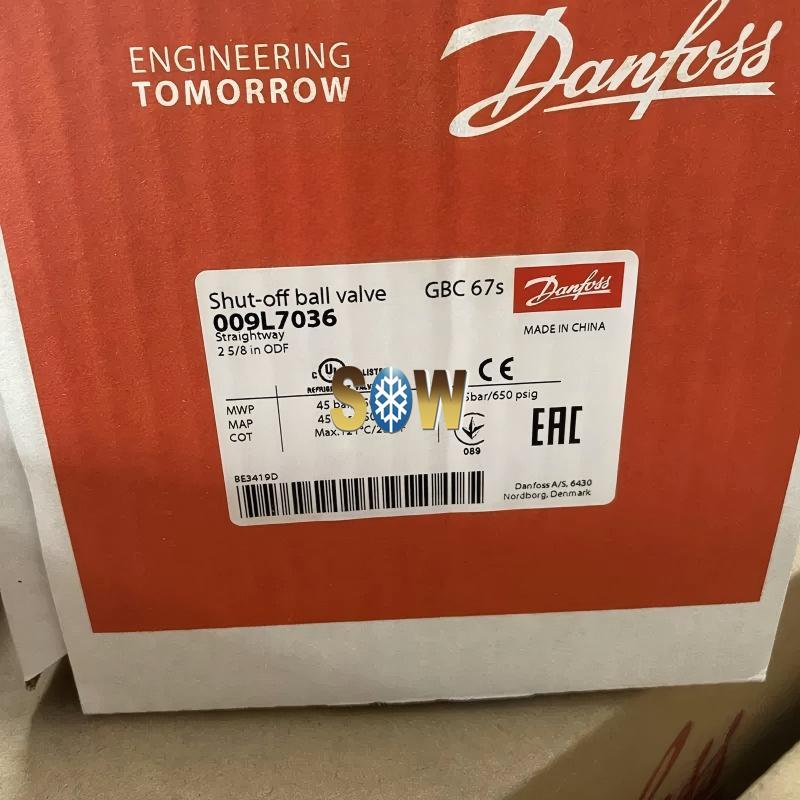

Name:Danfoss Shut-off ball valve, GBC 67s 009L7036
Brand:Danfoss
Model No.:GBC 67s
Part No.:009L7036
Country of origin:China
G.W:4.847kgs/pc
Inlet connection type:Solder, ODF
Outlet connection type:Solder, ODF
Inlet sizein [in]:2 5/8
Outlet size [in]:2 5/8 in

Product Description

Danfoss Shut-off ball valve, GBC 67s  009L7036

General specifications

Characteristic
Value
Gross weight
4.847 Kilogram
Net weight
4.351 Kilogram
Volume
8.251 Liter
Characteristic
Value
EAN/UPC
5702428007993
Proposition 65
Cancer and Reproductive Harm

Product specifications

Characteristic
Value
Access port
No
Approval
C UL US LISTED, CE, EAC
Body material
Brass
CE mark
Yes
China RoHS compliance
Yes with exemptions
Connection material
Copper
Contains batteries
No
Cv value [gal/min]
234.810 gal/min
DG Indicator Profile
Not relevant for dangerous goods
Direction
Straightway
Equipment
Cap w. wire seal
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Flow direction
Bi-flow
Flow direction indicator
Embossed 2-way arrow
Fluid Group
2
Ignition source assessment
Yes
Inlet connection type
Solder, ODF
Inlet size [in]
2 5/8 in
Kv value [m³/h]
203.120 m³/h
Material Description
GBC 67s Ball Valve M/2
Max. media temp. Oil free [°C]
80 °C
Max. Working Pressure [bar]
45.0 bar
Max. Working Pressure [psig]
650 psig
