Danfoss Shut-off ball valve, GBC 16s 009L7023-Product Center-Star-Worths Refrigeration Co.,Ltd.-

Name:	Danfoss Shut-off ball valve, GBC 16s 009L7023
Brand:	Danfoss
Model No.:	GBC 16s
Part No.:	009L7023
Country of origin:	China
G.W:	0.284kgs/pc
Inlet connection type:	Solder, ODF,
Outlet connection type:	Solder, ODF
Inlet size [mm]:	16
Outlet size [mm]:	16
Inlet size [in]:	5/8 in
Outlet size [in]:	5/8 in

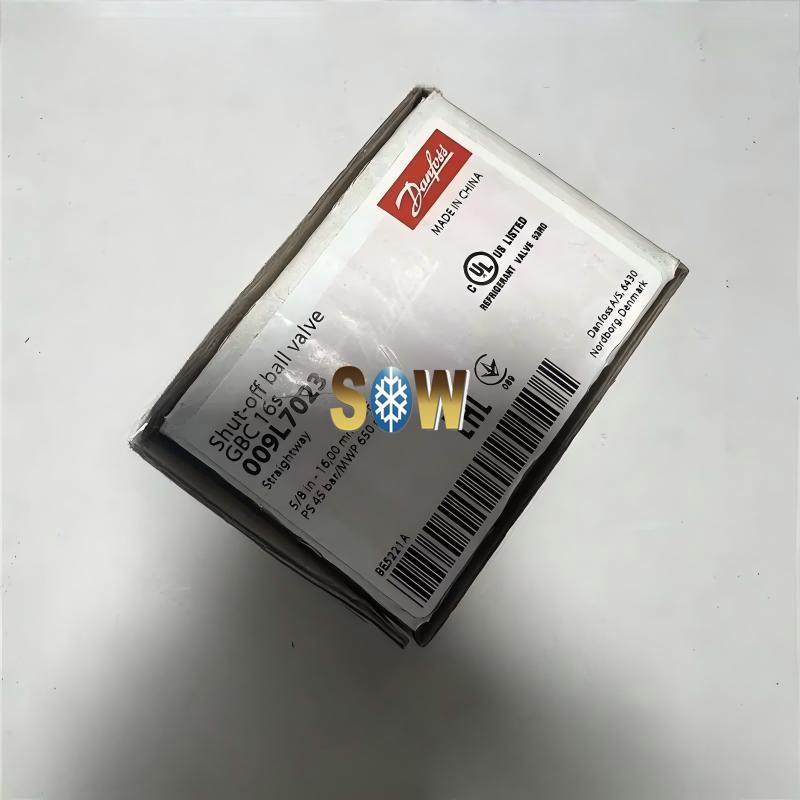

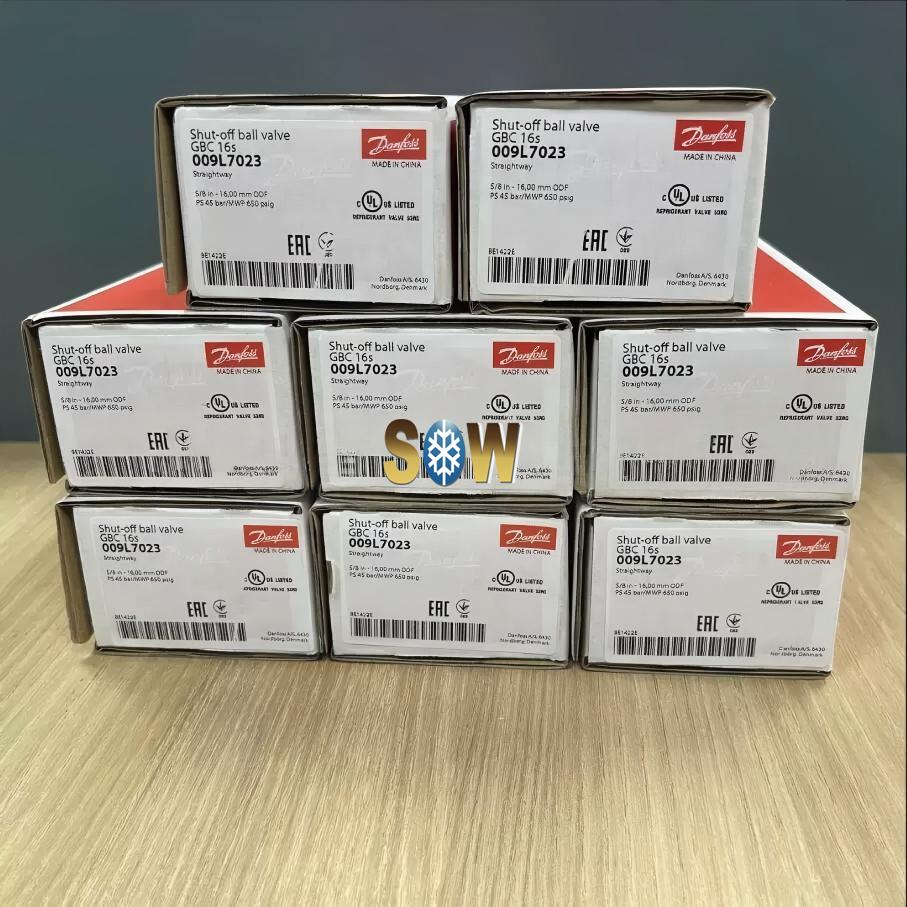

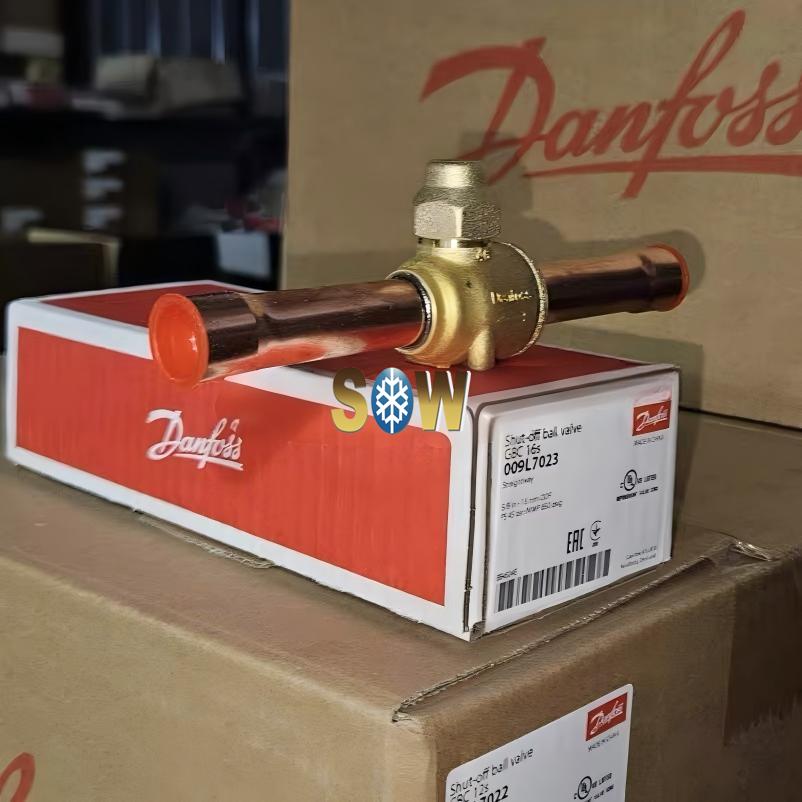

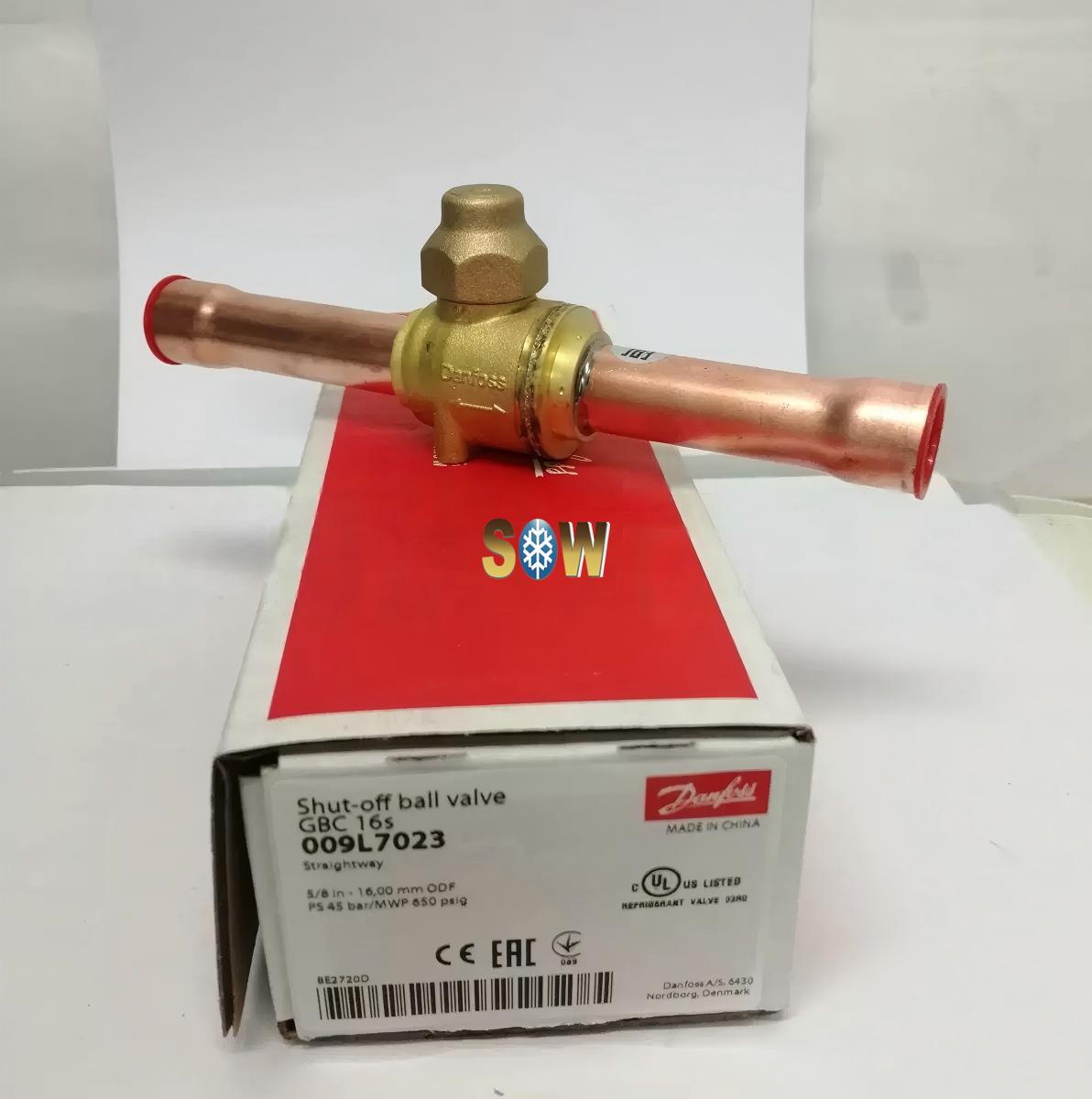

Danfoss Shut-off ball valve, GBC 16s 009L7023

Product details

Type	GBC 16s
Product group	Shut-off and regulating valves
Product Name Description	Shut-off ball valve

Max. Working Pressure [bar]	45 bar
Max. Working Pressure [psig]	650 psig
Oil free refrigerants	R1234ze(E) R134a R513A R515B R516A
Outlet connection type	Solder, ODF
Outlet size [in]	5/8 in
Outlet size [mm]	16 mm
Packing format	Multi pack
Panel mounting option	M4 × 0.7 (2 PC)
PED category	Art. 4, par. 3
Product accessories	BM/GBC valve accessories
Quantity per packing format	25 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R1234yf R1234ze(E) R134a R22/R407C R290 R32 R404A/R507A R407A Read more
SCIP dossier no.	cd366ef8-4459-476d-a84f-e93798ef01dc
SCIP dossier product name	GBC V2 16s-79s & 6s E-79s E without AP
Serviceable	BM/GBC valve spare parts
Temperature range [°C] [max]	100 °C
Temperature range [°C] [min]	-40 °C
Temperature range [°F] [max]	212 °F
Temperature range [°F] [min]	-40 °F
UL approved refrigerants	R1234yf R1234ze(E) R134a R22 R290 R32 R404A R407A Read more
UL mark	Yes
