Location:Index--->Product Center >> HVAC Control cools spare parts >> Danfoss AME 55 QM, 24 V AC, 40 mm 082H3078


|
|
||||||||||||||||
Product Description

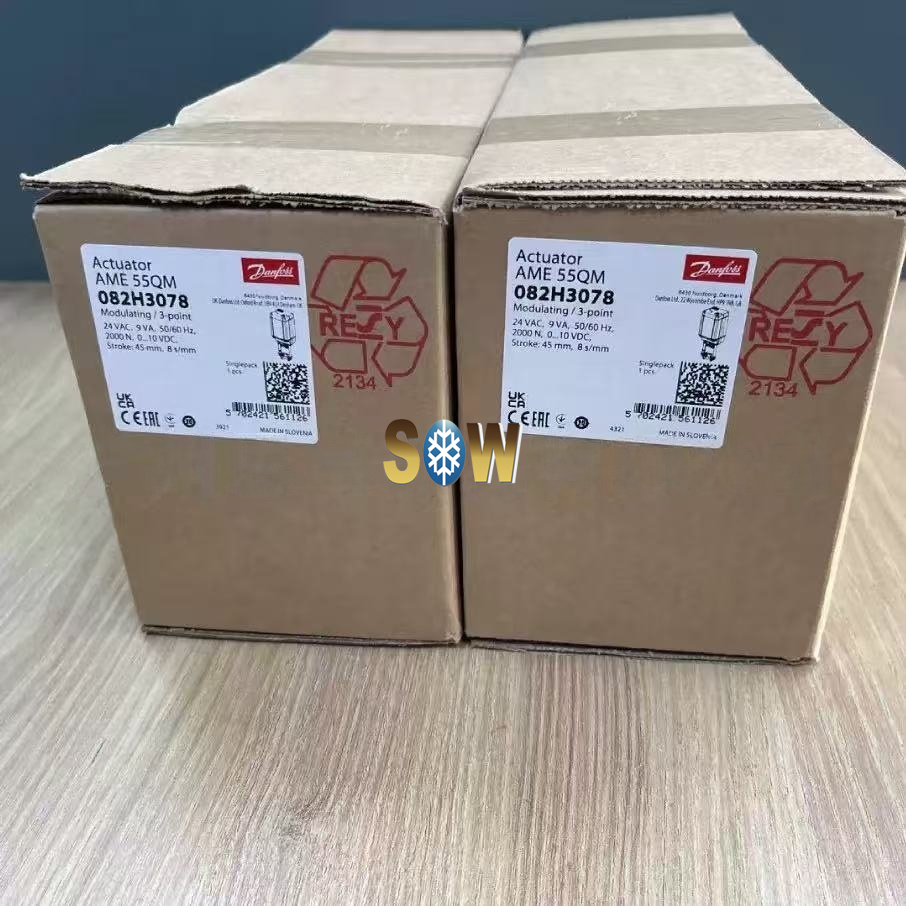

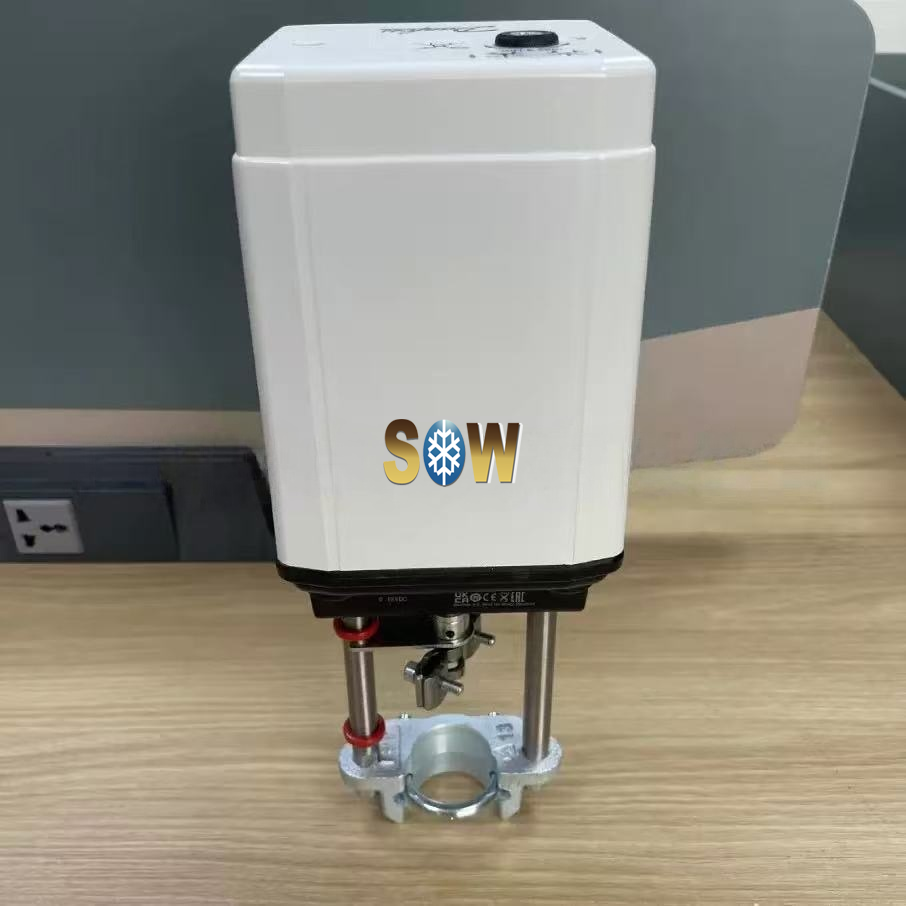

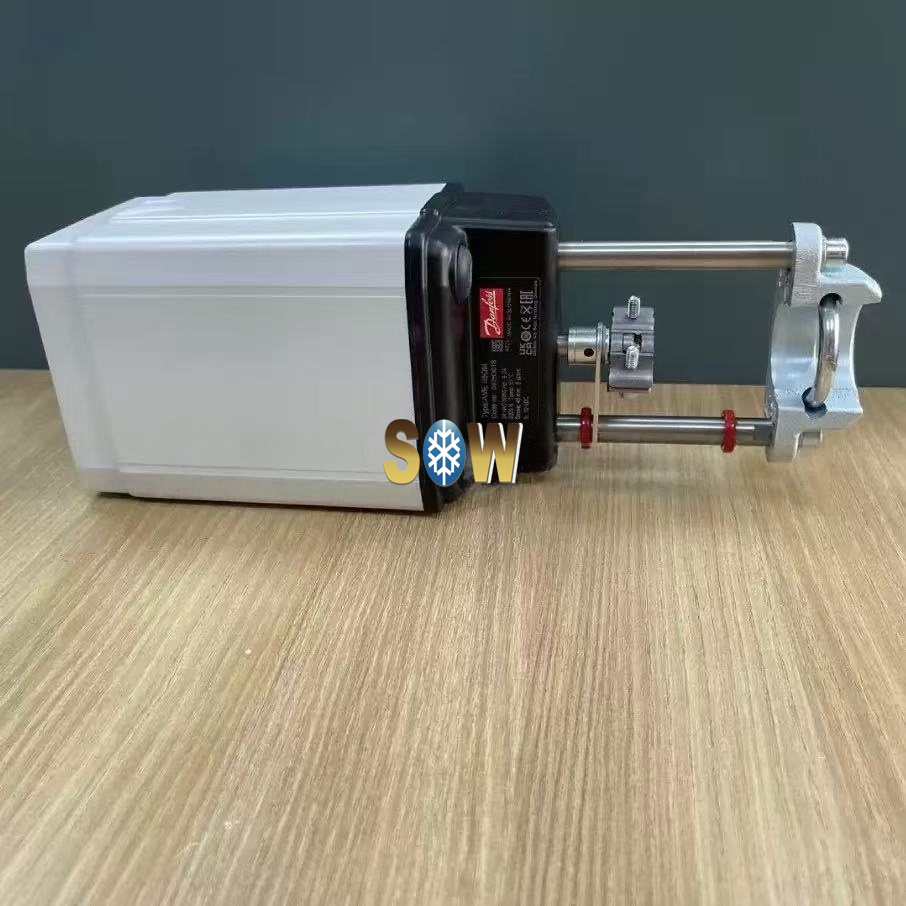

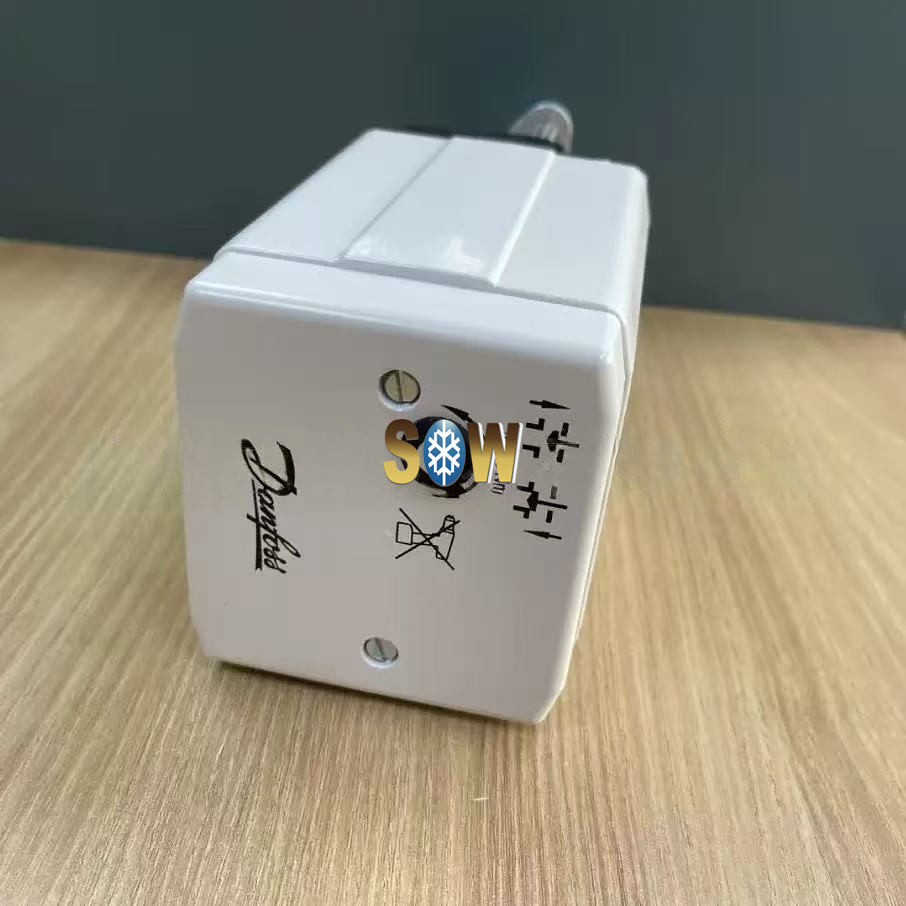

Danfoss AME 55 QM, 24 V AC, 40 mm 082H3078
Product details
| Gross weight | 2.98 Kilogram |
| Net weight | 2.97 Kilogram |
| Volume | 7.2 Liter |
| EAN | 5702421561126 |
| Type | AME 55 QM |
| Product group | Gear actuators |
| Approval standard | EC EN 60730 |
| Cable included | No |
| China RoHS compliance | Out of scope |
| Compatibility with valve | AB-QM DN 125-150 |
| Contains batteries | No |
| Control characteristic | LOG LIN |
| Control input signal Y [mA] | 0(4) - 20 mA |
| Control input signal Y [V] | 0(2) - 10 V |
| Control signal type | Modulating/3-point |
| Description | AME 55 QM, 24 V, 40 mm, actuator for modulating control for AB-QM DN 125-150 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| IP protection class | IP54 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 9b3425d2-c0c8-494d-b6f7-7ce03417a8c7 |
| SCIP dossier product name | 082H3078 |
| Spindle speed [s/mm] | 8 s/mm |
| Stroke [mm] | 40 mm |
| Supply voltage [V] | 24 V AC |
