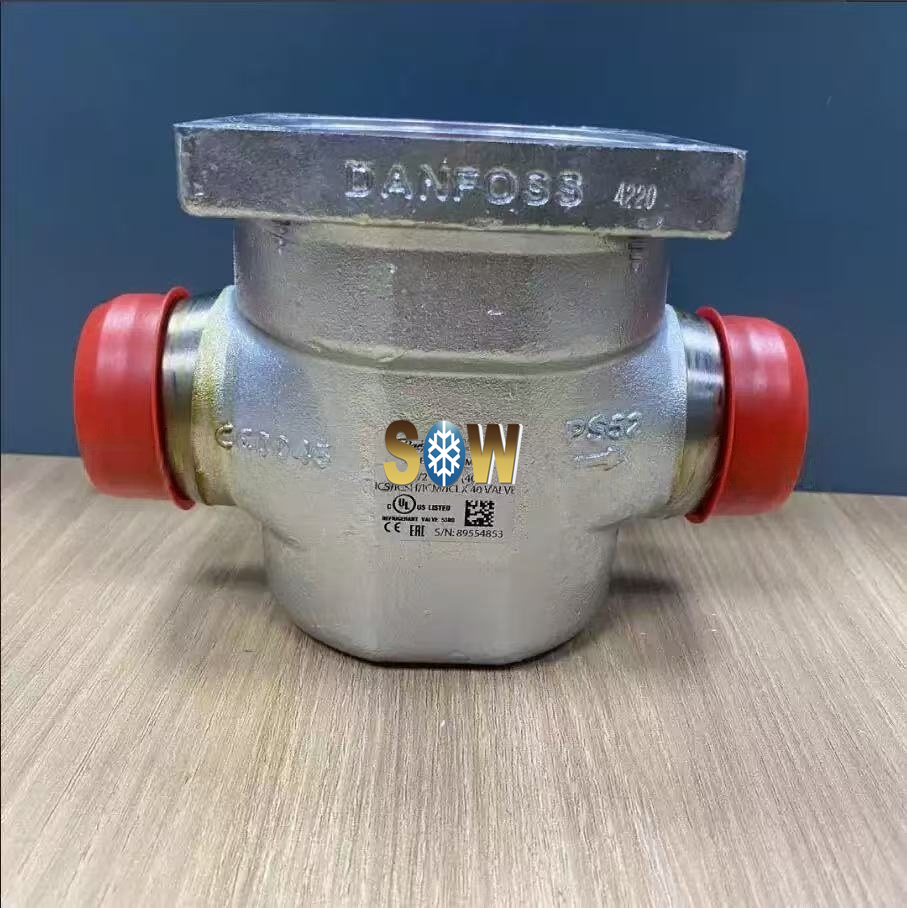

Name:	Danfoss Multifunction valve body, ICV 40, Butt weld 027H4121
Brand:	Danfoss
Model No.:	ICV 40
Part No.:	027H4121
Country of origin:	Denmark
G.W:	3.408kgs/pc
Connection type:	Butt weld
Connection material:	Steel
Max. Working Pressure [bar]:	65
Temperature range [°C]:	-60 - 120
Used for product:	ICM 40; ICS 40; ICLX 40

Danfoss Multifunction valve body, ICV 40, Butt weld 027H4121

Product details

Max. Working Pressure [psig]	943 psig
Packing format	Single pack
Parts Program name	ICLX ICM ICS
Product accessories	ICM / ICS / ICLX accessories
Quantity per packing format	1 pc
REACH Candidate List substances	No
Refrigerants	R113 R114 R1233zd(E) R1234yf R1234ze(E) R125 R1270 R1336mzz(Z) Read more
Serviceable	ICM / ICS / ICLX spare parts
Temperature range [°C] [max]	120 °C
Temperature range [°C] [min]	-60 °C
Temperature range [°F] [max]	248 °F
Temperature range [°F] [min]	-76 °F
Used for product	ICLX 40 ICM 40 ICS 40
Valve operation	Function module
