Location:Index--->Product Center >> Danfoss Solenoid Valve&Coil >> Danfoss Solenoid valve EVR 15 Valve Flare 5/8in 032F8101

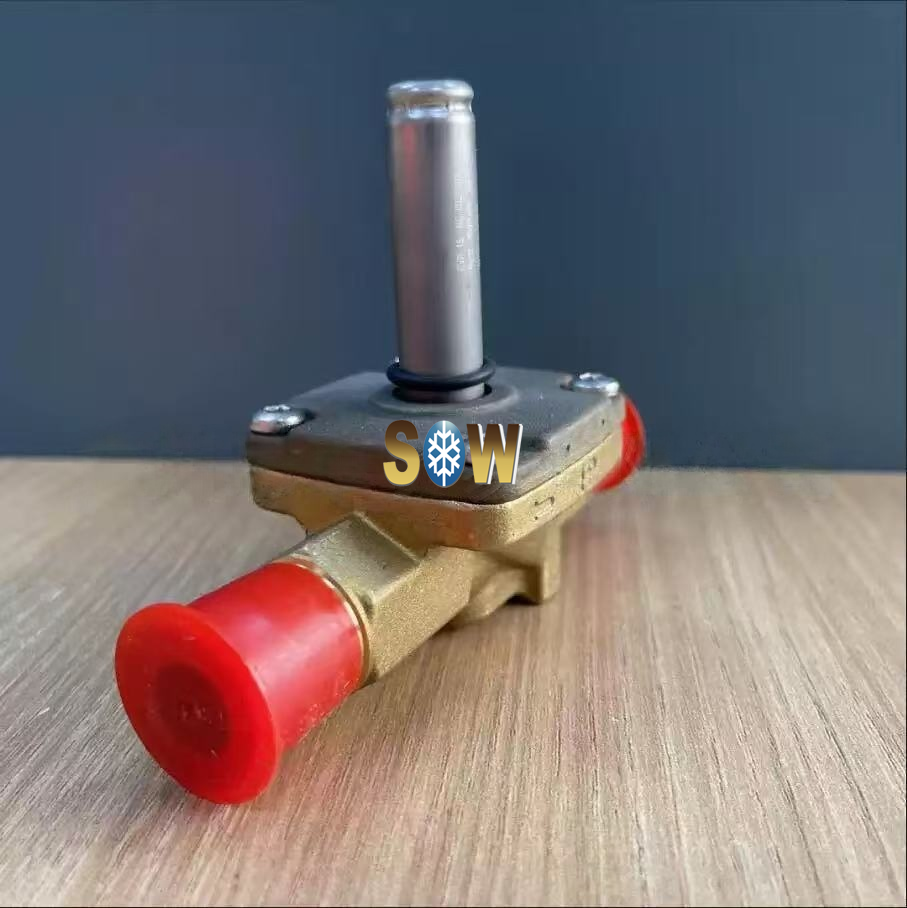

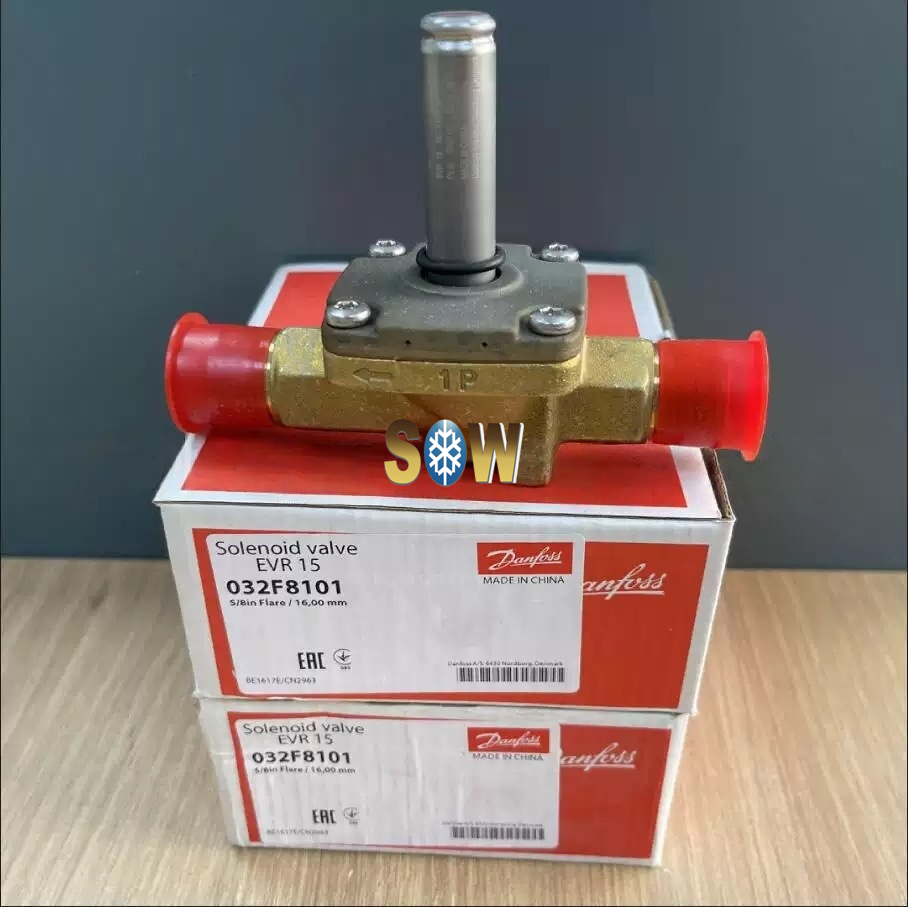

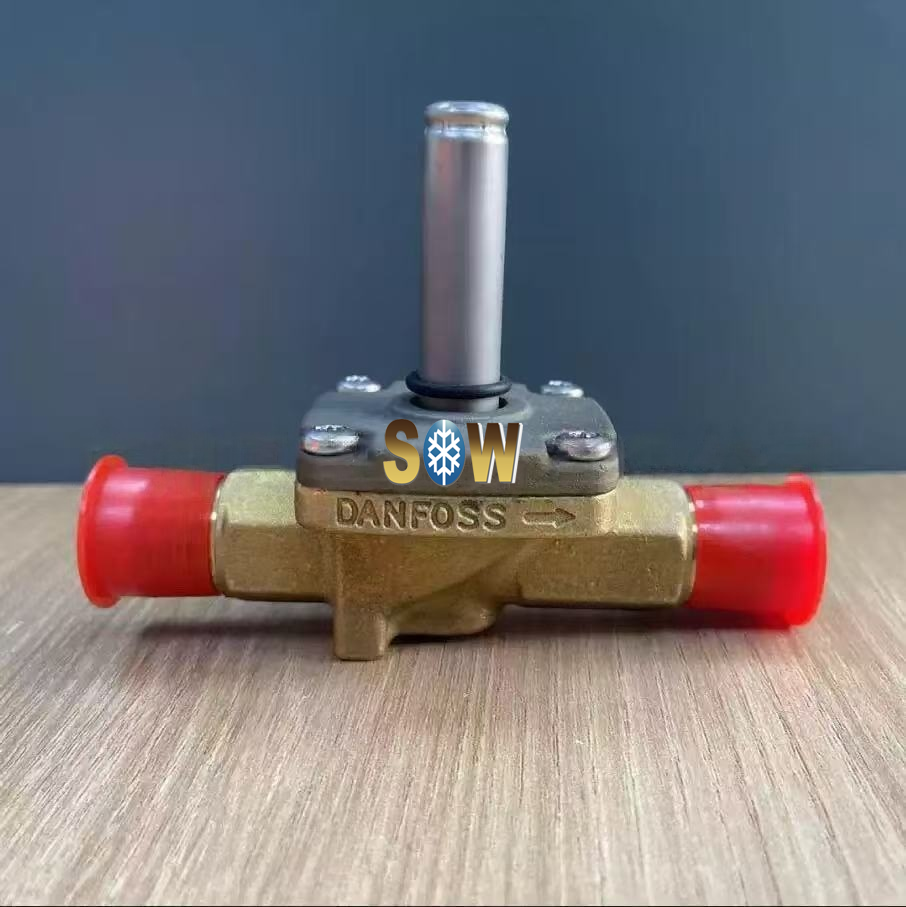

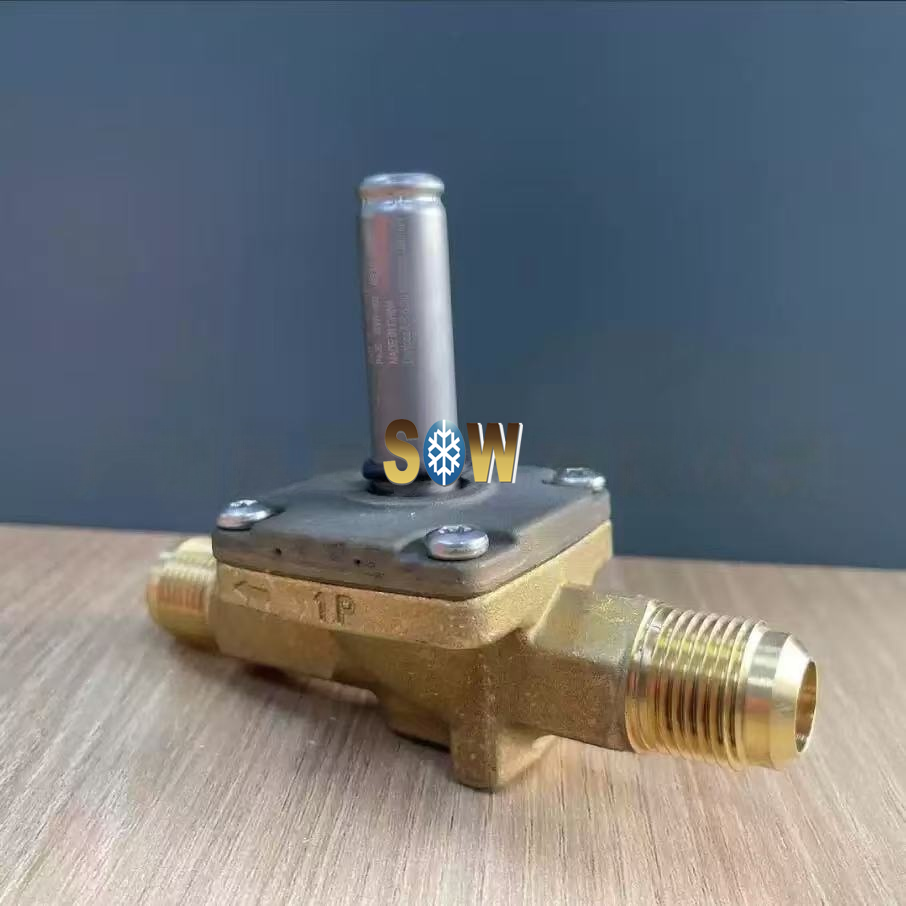

Name:Danfoss Solenoid valve EVR 15 Valve Flare 5/8in 032F8101
Brand:Danfoss
Model No.:EVR 15
Part No.:032F8101
Country of origin:China
G.W:0.666kgs/pc

Product Description

Danfoss Solenoid valve EVR 15 Valve Flare 5/8in 032F8101


Type Code EVR 15
Weight 0.666 Kg
Actuator system 13,5 mm
Ambient temp. -40 - 80 °C
Ambient temp. range -40 - 175 °F
Approval EAC, LLC CDC TYSK
Coil No
Cv value 3,010 gpm US
Direction Straightway
EAN no. 5702428093347
Function N C
Inlet type Flare
Inlet size 5/8 IN
Inlet size 16,00 mm
Kv value 2,600 m3/h
Man. Operat. No
MWP 32,0 bar
MWP 460 psig
Medium temp. -40 - 105 °C
Medium temp. -40 - 221 °F
Min. ODP 0,050 bar
MOPD Coil Dependend
Orifice size 14,00 mm
Outlet type Flare
Outlet size 5/8 IN
Outlet size 16,00 mm
Prod. Group Solenoid valves
Prod. name Solenoid valve
Refrigerant R134a
Refrigerant R22/R407C
Refrigerant R23
Refrigerant R404A/R507
Refrigerant R407A
Refrigerant R410A
Type design. Solenoid valve
