Location:Index--->Product Center >> Danfoss Solenoid Valve&Coil >> Danfoss Solenoid valve, EV310A,032H8125


|
|
||||||||||||||||||||||
Product Description

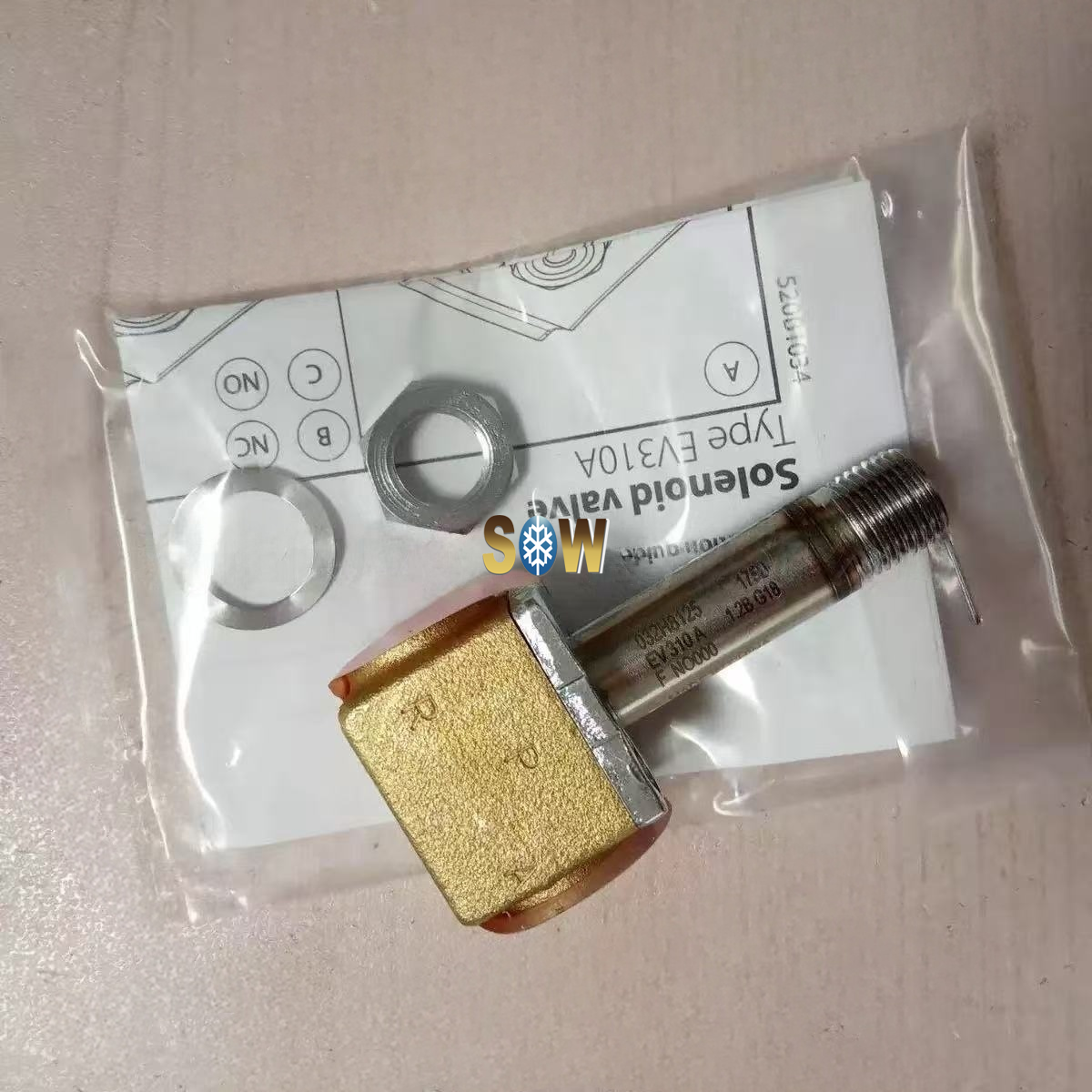

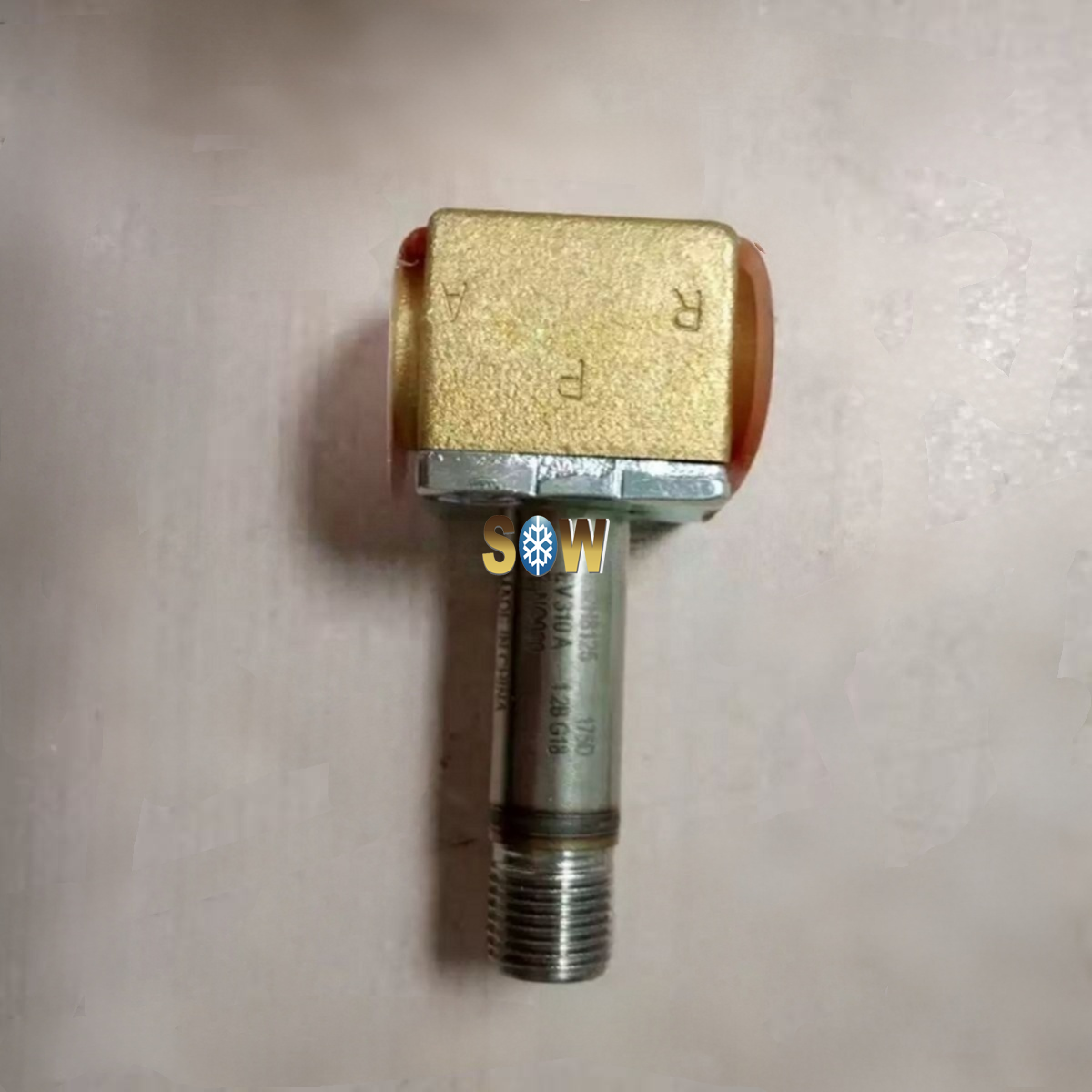

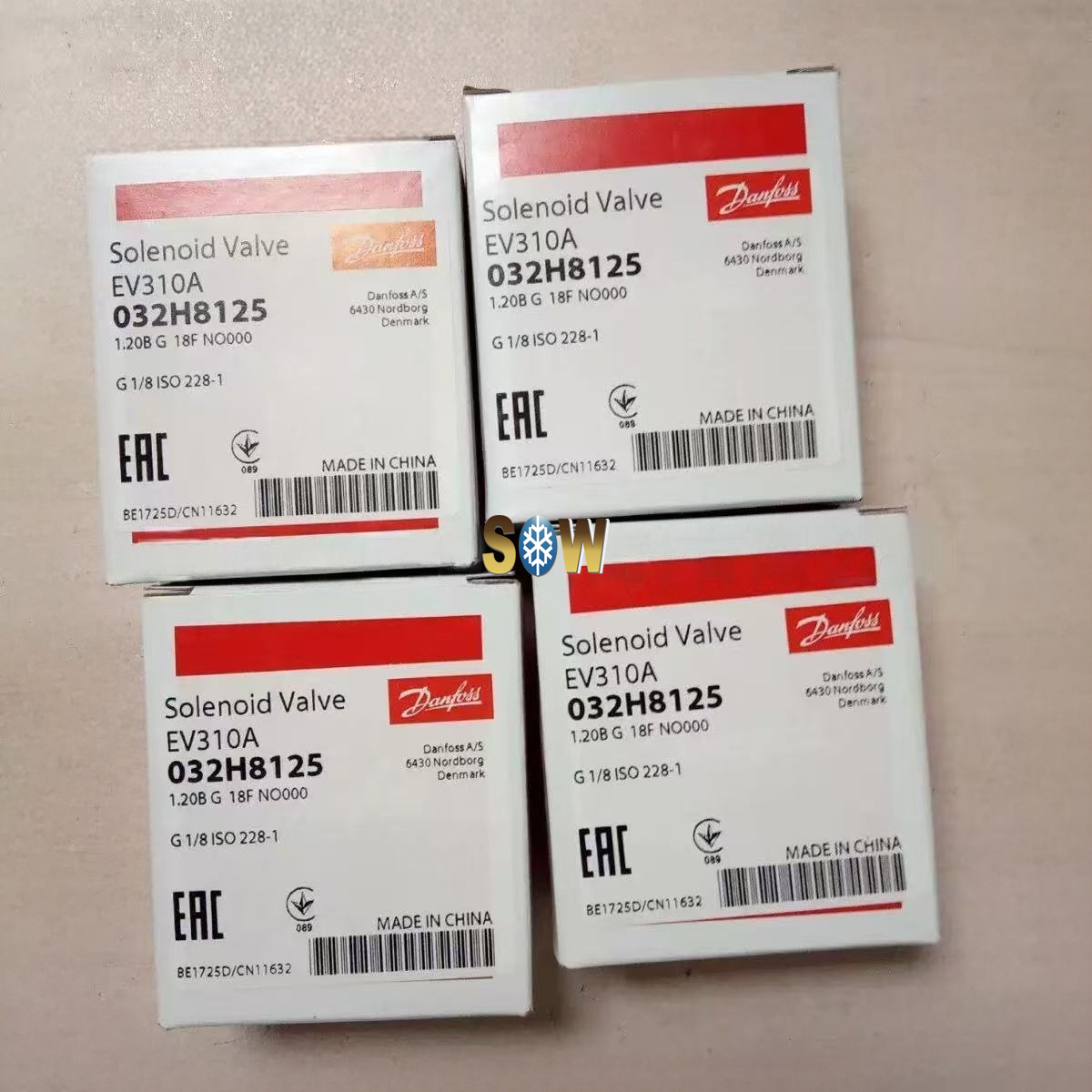

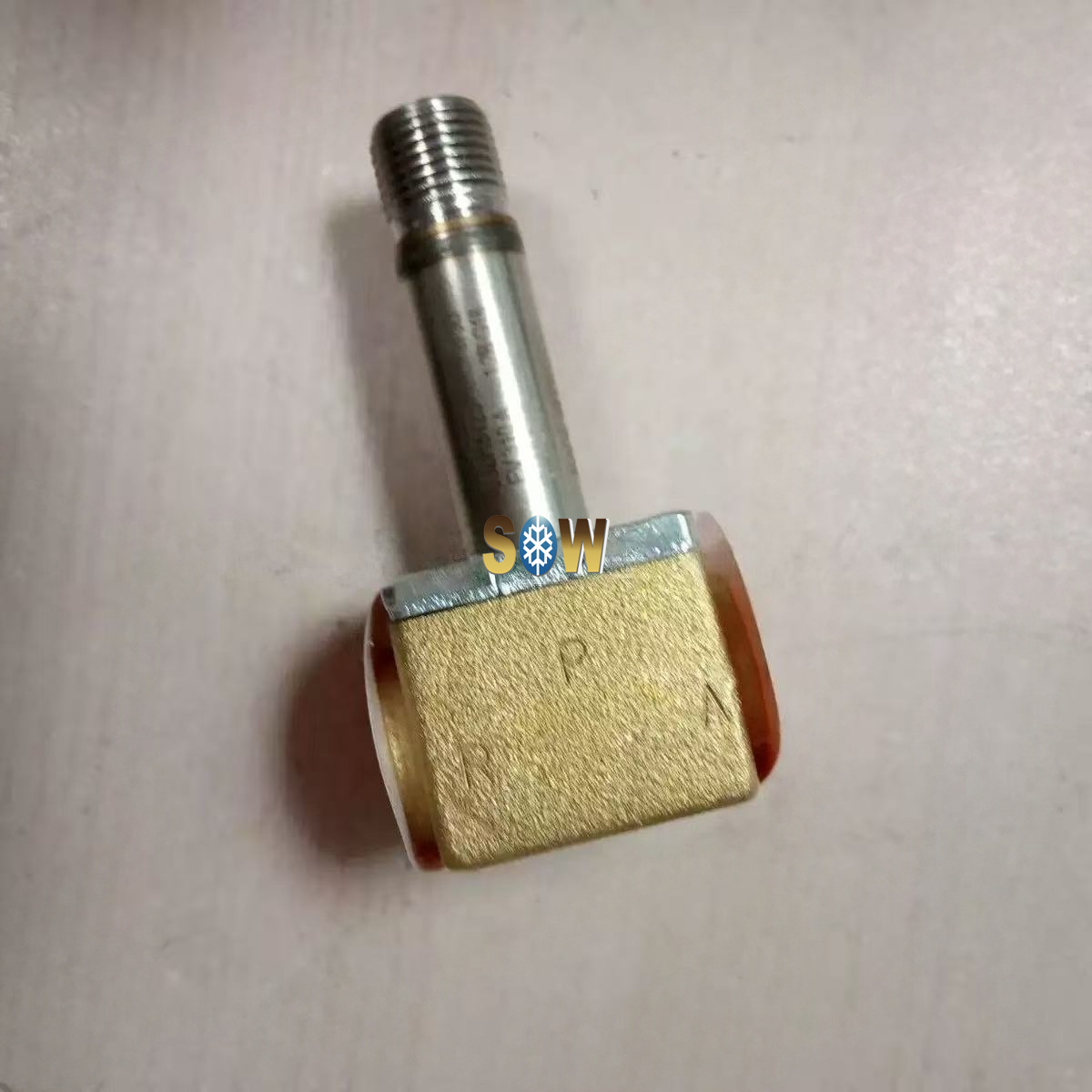

Danfoss Solenoid valve, EV310A,032H8125
Product details
| Gross weight | 0.096 Kilogram |
| Net weight | 0.089 Kilogram |
| Volume | 0.113 Liter |
| EAN | 5702423050291 |
| Type | EV310A |
| Product group | Solenoid valves |
| Product Name Description | Solenoid valve |
| Actuator | A |
| Actuator size | 9 mm |
| Actuator size [in] | 0.35 in |
| Actuator system [mm] | 9 mm |
| Ambient temperature max. [°C] | 50 °C |
| Ambient temperature max. [°F] | 122 °F |
| Application | Closed and Drain |
| Body material | Brass |
| China RoHS compliance | Out of scope |
| Connection Internal/External | Internal |
| Connection material | Brass |
| Connection size [in] | 1/8 |
| Connection standard | ISO 228-1 |
| Connection type | G |
| Contains batteries | No |
| Cv value [gal/min] | 0.05 gal/min |
| Differential pressure [bar] [max] | 13 bar |
| Differential pressure [bar] [Min] | 0 bar |
| Differential pressure [psi] [Max] | 189 psi |
| Differential pressure [psi] [Min] | 0 psi |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Est. time to close, water [ms] | 10 ms |
| Est. time to open, water [ms] | 10 ms |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow direction indicator | Engraved A-P-R |
| Fluid Group | 1 |
| Function | NO |
| In scope of WEEE | Yes |
| Kv value [m³/h] | 0.04 m³/h |
| Max media viscosity [cSt] | 20 cSt |
| Max. test pressure [bar] | 19.5 bar |
| Max. test pressure [psig] | 283 psig |
| Max. Working Pressure [bar] | 13 bar |
| Max. Working Pressure [psig] | 189 psig |
| Media recommendations | Oil,Comp.Air,Vacuum |
| Media tolerance comments | Neutral media |
| Medium temperature range [°C] [Max] | 100 °C |
| Medium temperature range [°C] [Min] | 0 °C |
| Medium temperature range [°F] [Max] | 212 °F |
| Medium temperature range [°F] [Min] | 32 °F |
| Number of ways | 3/2 |
| Operation | Direct-operated |
| Orifice size [mm] | 1.2 mm |
| Orifice size fraction [in] | 3/64 in |
| Packing format | Multi pack |
| Parts Program name | EV310A |
| Product accessories | Solenoid coil accessories Solenoid valve accessories |
| Quantity per packing format | 16 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 049058ad-6d73-4ec9-9d2b-b574054e817d |
| SCIP dossier product name | EV310A - solenoid valve |
| Seal Material | FKM |
| Serviceable | Solenoid valve spare parts |
| Specification key | EV310A 1.2B G 18F NO000 |
| Type designation | EV310A 1.2 |
| Proposition 65 |
