Danfoss Hand operated regulating valve, REG-SB 65, Steel 148B5809-Product Center-Star-Worths Refrigeration Co.,Ltd.-

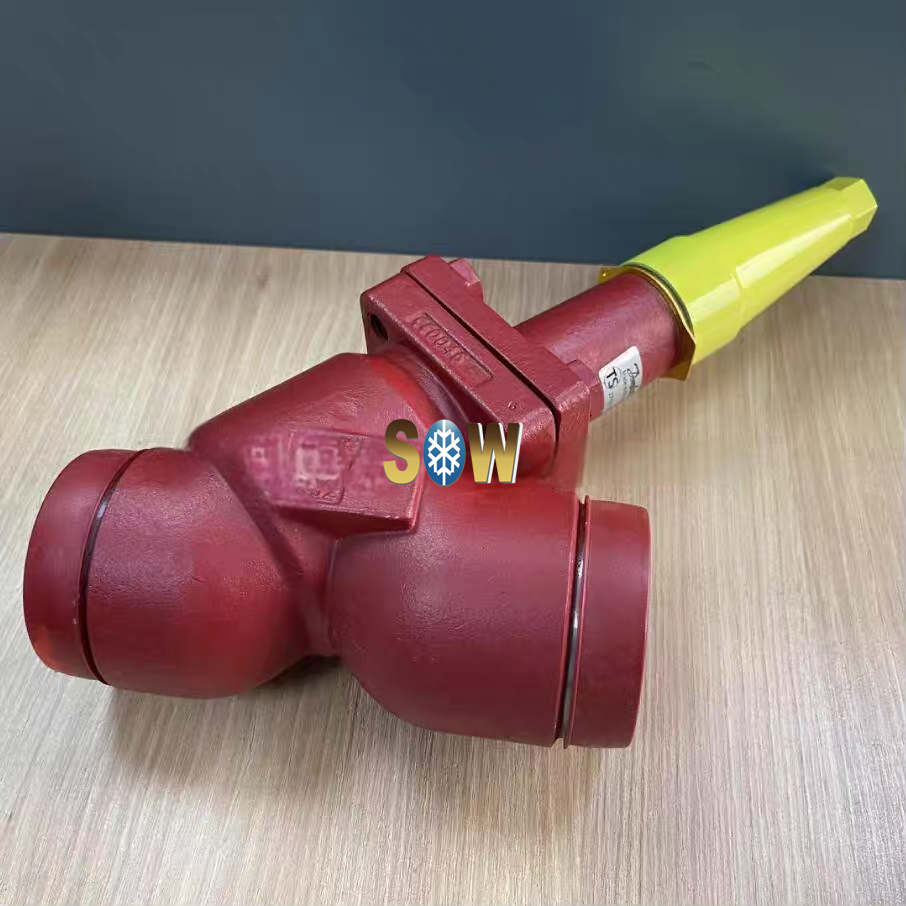

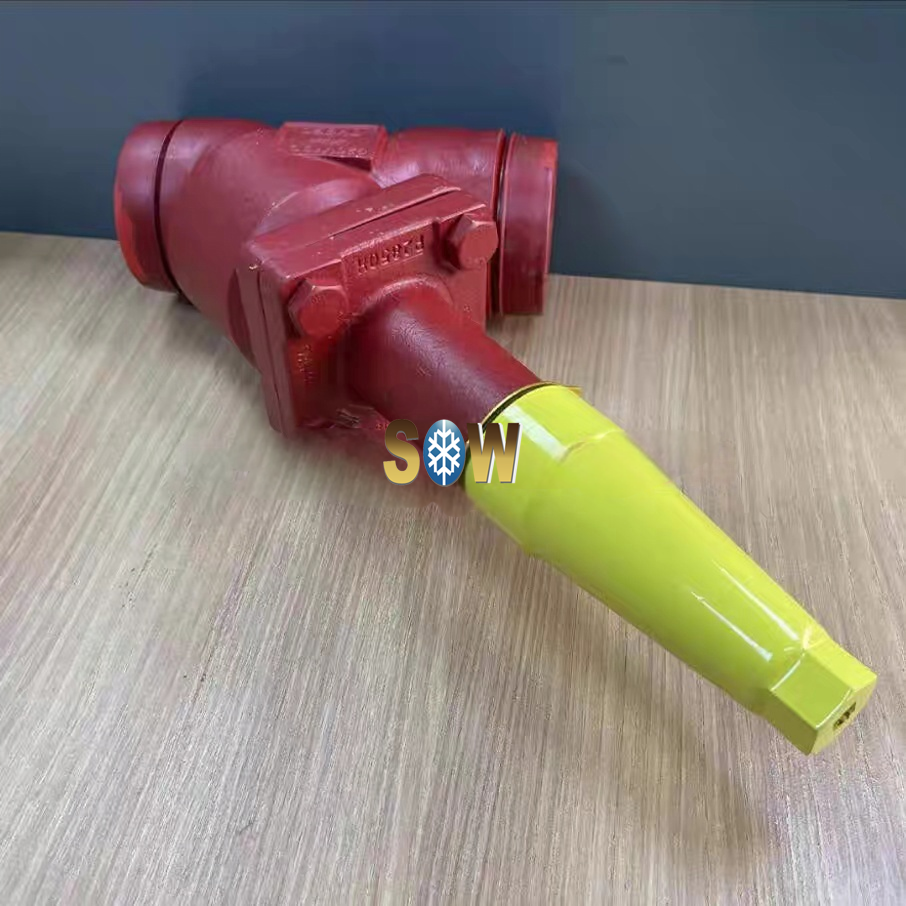

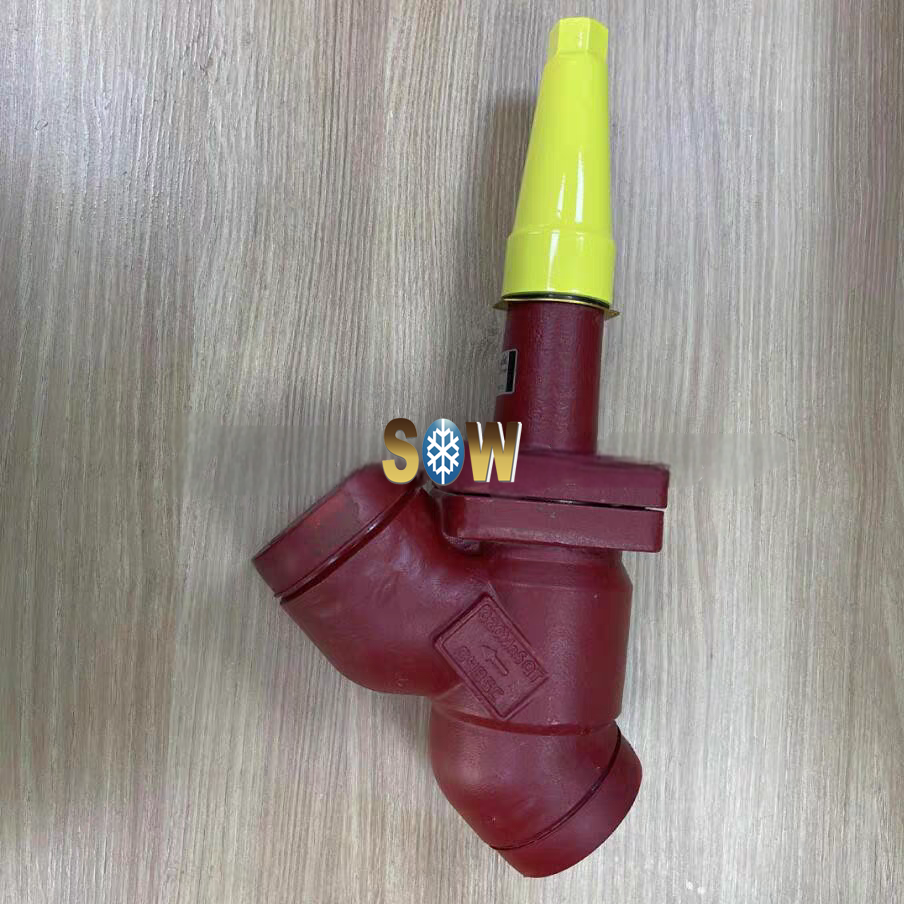

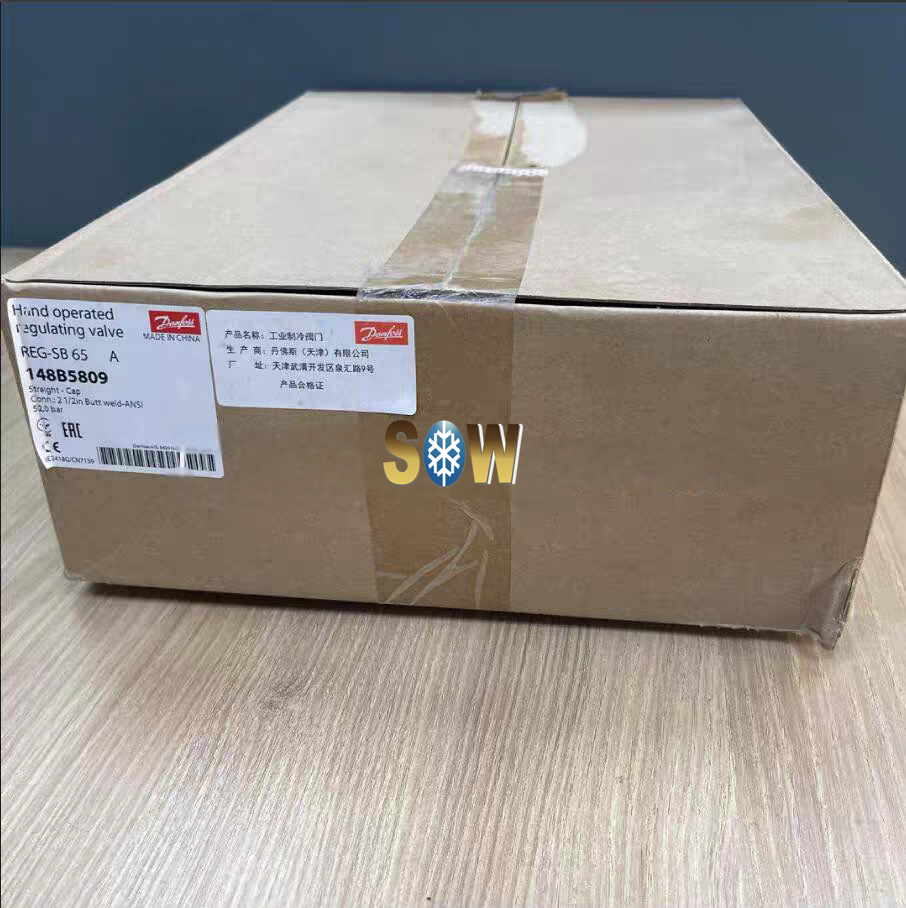

Name:	Danfoss Hand operated regulating valve, REG-SB 65, Steel 148B5809
Brand:	Danfoss
Model No.:	REG-SB 65
Part No.:	148B5809
Country of origion:	China
G.W:	8.701kgs/pc
Outlet connection size [mm]:	65
Inlet connection size [mm]:	65
Inlet connection type:	Butt weld
Outlet connection type:	Butt weld
Kv value [m³/h]:	80
Max. Working Pressure [bar]:	52
Equipment:	Cap

Danfoss Hand operated regulating valve, REG-SB 65, Steel 148B5809

Product details

Type	REG-SB 65
Product group	Shut-off and regulating valves
Product Name Description	Hand operated regulating valve

Max. Working Pressure [bar]	52 bar
Max. Working Pressure [psig]	754 psig
Neck	Standard
Outlet connection size [in]	2 1/2 in
Outlet connection size [mm]	65 mm
Outlet connection type	Butt weld
Packing format	Single pack
Parts Program name	REG-SA / REG-SB
PED category	II
Product accessories	SVL Flexline accessories
Product description	Hand Regulating Valve
Quantity per packing format	1 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R134a R22 R290 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R600 R600a R717 R744 R507A R1234yf R1234ze(E) R125 R152a R227ea R236fa R245fa R32 R407H R413A R417A R422A R422B R422D R438A R442A R444B R447A R447B R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R463A R512A R513A R513B R515A R515B R516A R170 R452C
Serviceable	SVL Flexline spare parts
Temperature range [°C] [max]	150 °C
Temperature range [°C] [min]	-60 °C
Temperature range [°F] [max]	302 °F
Temperature range [°F] [min]	-76 °F
Valve version	Standard version
