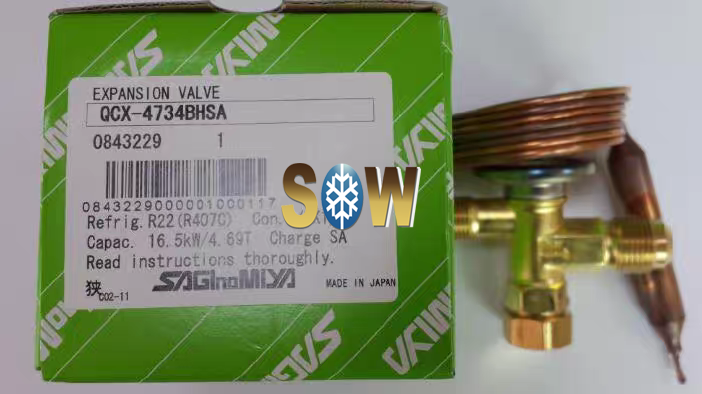

Saginomiya expansion valve QCX-4734BHSA

Type QCX/RCX Thermostatic Expansion Valves

Features

Compatible with refrigeration and air conditioning systems operating at a wide temperature range (uni-directional).

Flared connections come with built-in strainers.

Also compatible with equipment with hot gas defrost lines.

Refrigerating capacity of 1.03 to 15.5kW (R448A)

UL/c-UL certified products also available.

Applications

Product display cases, refrigerated containers, freezers, refrigerators, air conditioning systems

Common Specifications

Maximum working pressure: 3.0 MPa

Maximum temperature for main structure and sensing element: 80℃

Connections: Flare and solder connections

Refrigerants: R410A, R448A, R449A, R407H, R463A-J

(Please inquire about other refrigerants)
