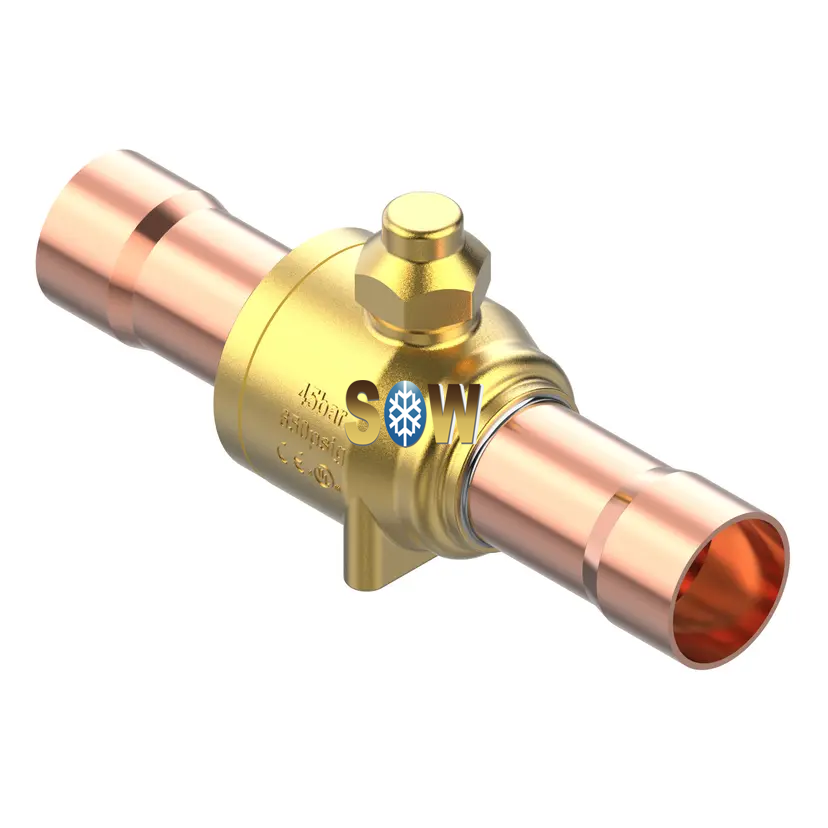

Name:	Danfoss Shut-off ball valve, GBC 54s 009L7029
Brand:	Danfoss
Model No.:	GBC 54s
Part No.:	009L7029
Country of origin:	China
G.W:	4.753kgs/pc
Inlet connection type:	Solder, ODF
Outlet connection type:	Solder, ODF
Inlet size [mm]:	54
Outlet size [mm]:	54
Inlet size [in]:	2 1/8 in
Outlet size [in]:	2 1/8 in

Danfoss Shut-off ball valve, GBC 54s 009L7029

Characteristic	Value
EAN/UPC	5702428515726
Proposition 65	Cancer and Reproductive Harm

Characteristic	Value
Access port	No
Approval	C UL US LISTED, CE, EAC
Body material	Brass
CE mark	Yes
China RoHS compliance	Yes with exemptions
Connection material	Copper
Contains batteries	No
Cv value [gal/min]	277.570 gal/min
DG Indicator Profile	Not relevant for dangerous goods
Direction	Straightway
Equipment	Cap w. wire seal
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
Flow direction	Bi-flow
Flow direction indicator	Embossed 2-way arrow
Fluid Group	2
Ignition source assessment	Yes
Inlet connection type	Solder, ODF
Inlet size [in]	2 1/8 in
Inlet size [mm]	54.00 mm
Kv value [m³/h]	240.110 m³/h
Material Description	GBC 54s Ball Valve M/2
Max. media temp. Oil free [°C]	80 °C
Max. Working Pressure [bar]	45.0 bar
Max. Working Pressure [psig]	650 psig
