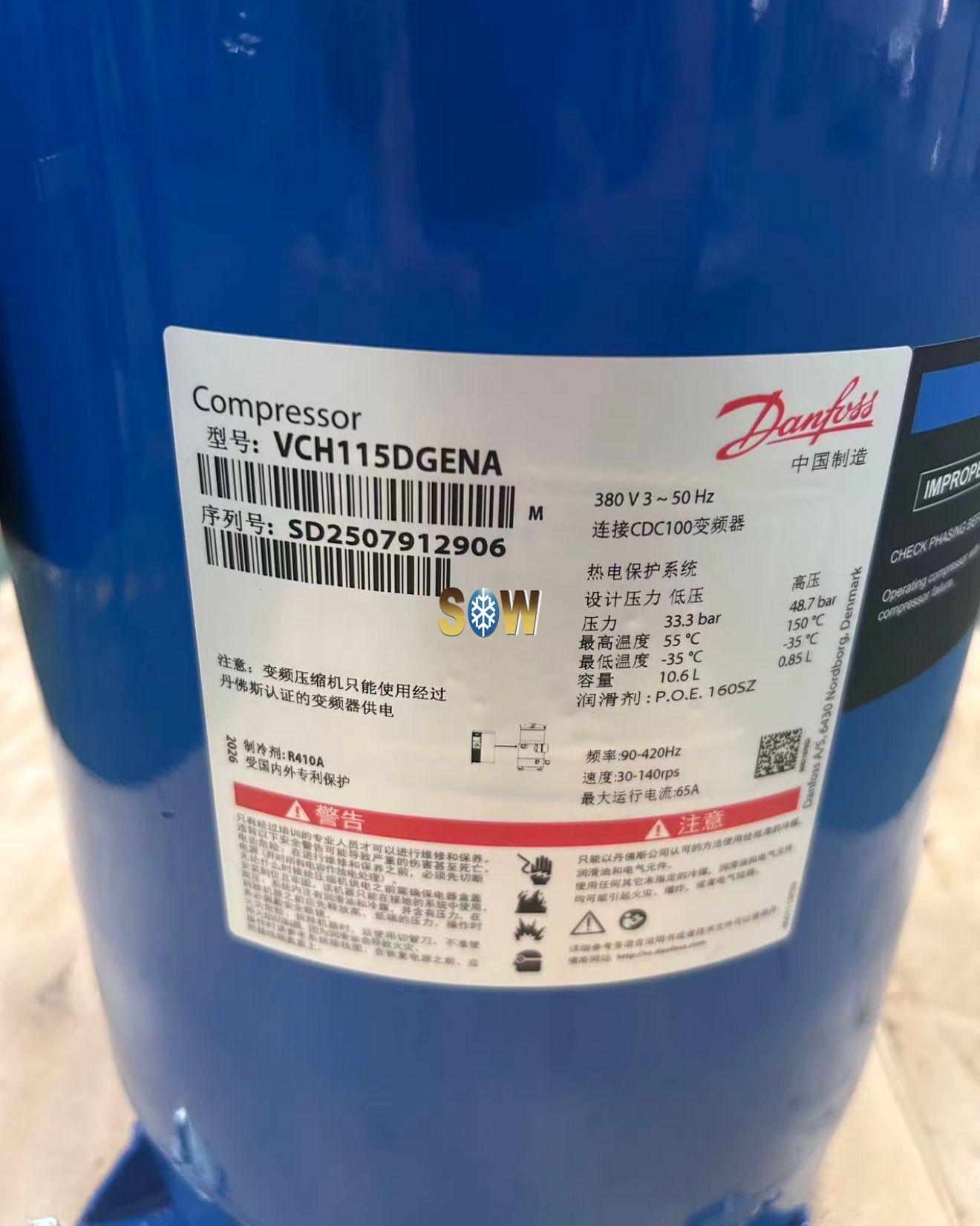

Name:	Danfoss Scroll compressor, VCH115DGENA
Brand:	Danfoss
Model No.:	VCH115DGENA
Country of origion:	China
N.W:	77kgs/pc
Refrigerants:	R410A
Segment usage:	Heating; Air conditioning
Compressor power supply [V]:	380/3/50
Packing format:	Single pack

Danfoss Scroll compressor, VCH115DGENA

Product details

Approval	Out of scope
Brand technique	Scroll compressor
Capacity Control	Inverter
CE mark	No
China RoHS compliance	Yes with exemptions
China RoHS exemption clause	7.3
Colour	Blue
Compressor power supply [V]	380/3/50
Connection type	Brazed
Contains batteries	No
Description	VCH115DG
Discharge connection pipe size [in]	1 1/8 in
Discharge connection size [in]	1 1/8 in
Economizer	Yes
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
Family	VCH
Frequency [Hz]	30 - 140
High Side TS Max	150 °C
High Side TS Min	-35 °C
High Side Volume	0.9 L
High value of nominal voltage at 50Hz [V]	380 V
High value of voltage range at 50Hz [V]	418 V
IDV	No
In scope of WEEE	No
IP protection class	IP22 (with U plug on Ebox)
Low Side TS Max	55 °C
Low Side TS Min	-35 °C
Low Side Volume	10.6 L
Low value of nominal voltage at 50Hz [V]	380 V
Low value of voltage range at 50Hz [V]	342 V
Max pressure (PS) - high side	48.7 bar

Max pressure (PS) - low side	33.3 bar
Maximum Operating Current [MOC]	65 A
Model number	VCH115DGENA
Motor protection	Motor protection by frequency converter
Mounting torque [Nm]	15 N-m
Network power supply [V/Ph/Hz]	380-415/3/50 460/3/60
Number of starts per hour [Max]	12
Oil charge [L]	3.3 L
Oil level switch port	No
Oil reference	160SZ
Oil type	POE
Packing format	Single pack
Packing quantity	1
Phase	3
Power connections	Screw 10-32 UNF 2A
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]	13 kg
Refrigerants	R410A
Segment usage	Heating Air conditioning
Suction connection material	-
Suction connection pipe size [in]	1 5/8 in
Suction connection size [in]	1 5/8 in
Swept volume [cm3]	115 cm³
Technology	Scroll
Test dif [bar] [Max]	37 bar
Test HP [bar] [Max]	53.6 bar
Test LP [bar] [Max]	36.7 bar
Torque earth [Nm]	2 N-m
Torque power [Nm]	3 N-m
Viscosity [cP]	32 cP
Winding resistance for three-phase compressors with identical windings [Ohm]	0.037 Ohm
