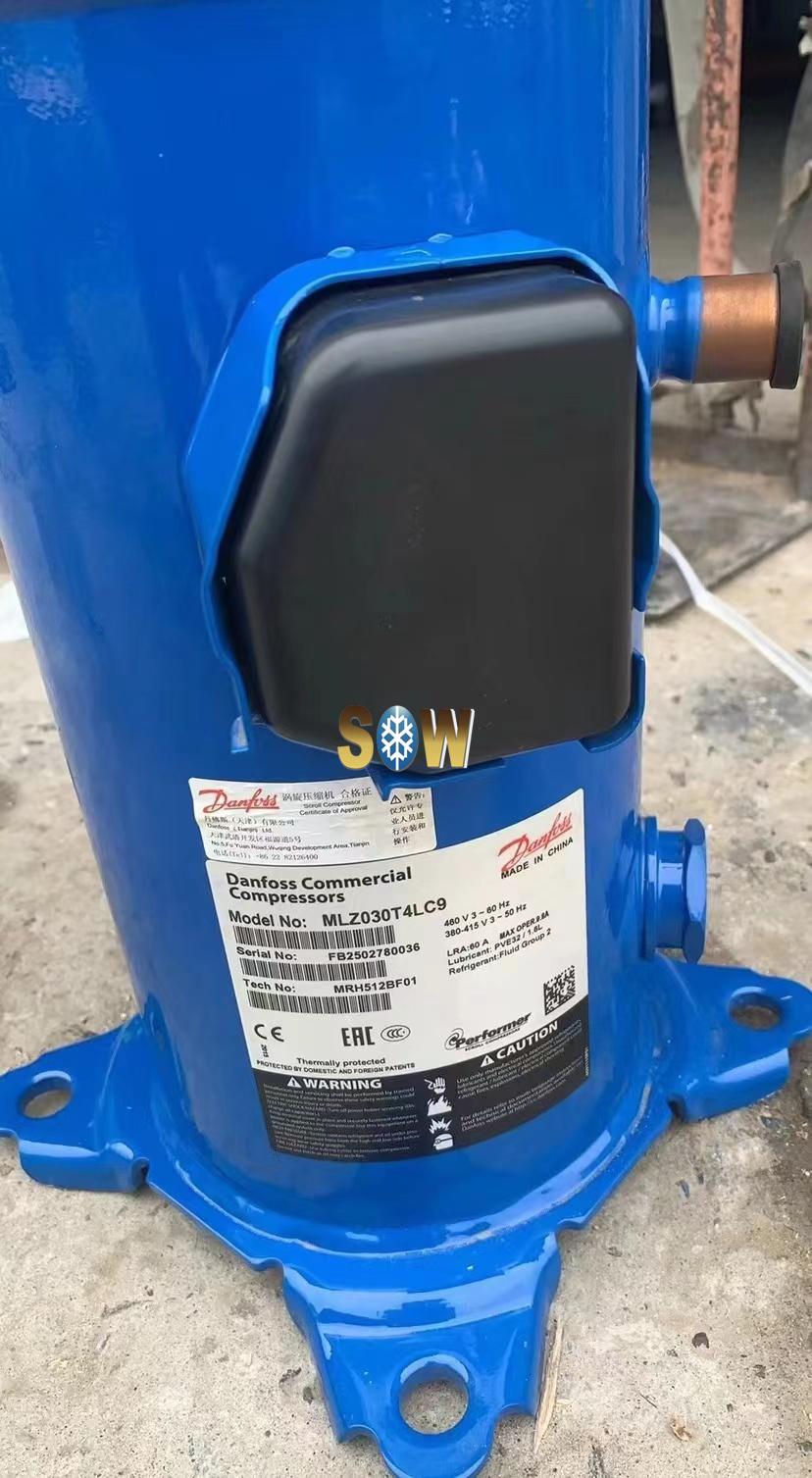

Name:	Danfoss Scroll compressor, MLZ030T4LC9
Brand:	Danfoss
Model No.:	MLZ030T4LC9
Country of origional:	China
N.W:	37.42kgs/pc
Refrigerants:	R404A; R407C; R407A; R134a; R407F; R22
Segment usage:	Refrigeration MT
Compressor power supply [V]:	380-415/3/50 460/3/60
Packing format:	Single pack

Danfoss Scroll compressor, MLZ030T4LC9

This product has been discontinued

Replacement model is:Danfoss Scroll compressor, MLZ030T4LC9A

Product details

Gross weight	41.42 Kilogram
Net weight	37.42 Kilogram

Volume	64.75 Liter
EAN	5702428250016

Approval	CE UL UKCA
Brand technique	Scroll compressor
Capacity control	Fixed speed
China RoHS compliance	Out of scope
Colour	Black
Compressor power supply [V]	380-415/3/50 460/3/60
Configuration code	Single
Connection type	Brazed
Description	MLZ030T4
Diameter [mm]	184 mm
Discharge connection height [mm]	422 mm
Discharge connection pipe size [in]	1/2 in
Discharge connection size [in]	1/2 in
Drawing number	0XR6025B-2
Economizer	No
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(a), 6(a)-I, 7(a), 7(c)-I, 8(b), 9(b)
Family	MLZ
Fitting standard	ODF
Frequency [Hz]	50/60
Gauge port HP	None
Gauge port LP	None
Glass mounting	Threaded
Glass torque [Nm]	53 N-m
High value of nominal voltage at 50Hz [V]	400 V
High value of nominal voltage at 60Hz [V]	460 V
High value of voltage range at 50Hz [V]	460 V
High value of voltage range at 60Hz [V]	506 V
In scope of WEEE and contain batteries	No
IP protection class	IP22
Low value of nominal voltage at 50Hz [V]	380 V
Low value of nominal voltage at 60Hz [V]	460 V
Low value of voltage range at 50Hz [V]	340 V
Low value of voltage range at 60Hz [V]	414 V
LRA	60 A
Max pressure (PS) - high side	31.1 bar
Max pressure (PS) - low side	26.2 bar
MCC	13 A
Model number	MLZ030T4LC9
Motor protection	Internal overload protector

Network power supply [V/Ph/Hz]	380-415/3/50 460/3/60
Number of starts per hour [Max]	12
Oil charge [L]	1.57 L
Oil drain	1/4'' flare
Oil equalization	none
Oil reference	160HV
Oil type	PVE
Packaging weight [Kg]	40 kg
Packing format	Single pack/pallet
Packing quantity	6
Phase	3
Power connections	Screw connectors 10-32 UNF x 9.5
Product group	Hermetic compressors
Product Name Description	MLZ
REACH Candidate List substances	Lead (CAS no. 7439-92-1) Di-isodecyl phthalate (DIDP) (CAS no. 26761-40-0) Diisononyl phthalate (DINP) (CAS no. 28553-12-0)
Refrigerant charge [kg] [Max]	5.44 kg
Refrigerants	R134a R22 R404A R407A R407C R407F
RLA	8.3 A
Rotational speed at 50Hz [rpm]	2900 rpm
Rotational speed at 60Hz [rpm]	3500 rpm
SCIP dossier no.	9f3eb380-2376-4d7e-8e20-14d0789b1562
Segment usage	Refrigeration MT
Shipped instructions	Installation instructions
Shipped mounting	Mounting kit with grommets and sleeves
Shipped oil	Initial oil charge
Suction connection height [mm]	280 mm
Suction connection material	-
Suction connection pipe size [in]	7/8 in
Suction connection size [in]	7/8 in
Swept volume [cm3]	68.79 cm³
Technology	Scroll
Torque earth [Nm]	2 N-m
Torque power [Nm]	3 N-m
Total height [mm]	455 mm
Type	MLZ030
UK RoHS compliance	Out of scope
Viscosity [cP]	32 cP
Winding resistance 1-2 [Ohm]	2.6
Winding resistance 1-3 [Ohm]	2.61
Winding resistance 2-3 [Ohm]	2.65
