Location:Index--->Product Center >> Danfoss Thermostatic Expansion Valves T 2/TE 2/TX 2/TEX 2 >> Danfoss Element for expansion valve, TE 5, 067B3358


|
|
||||||||||||||||||||||
Product Description

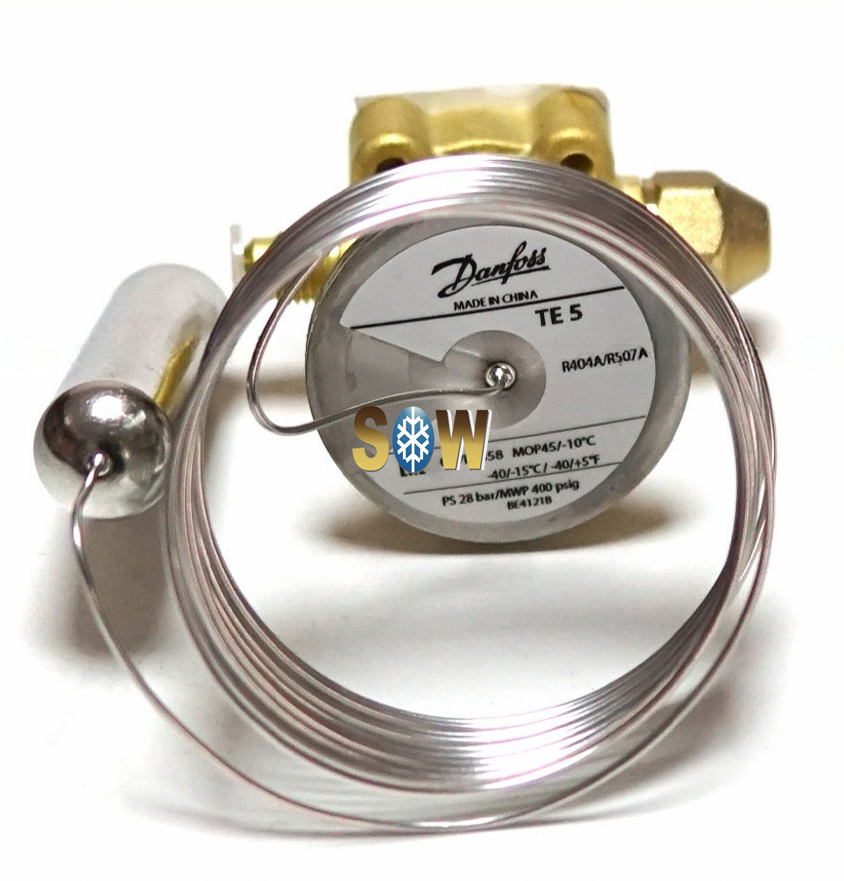

Danfoss Element for expansion valve, TE 5, 067B3358
Product details
| Gross weight | 0.516 Kilogram |
| Net weight | 0.44 Kilogram |
| Volume | 1.645 Liter |
| EAN | 5702428148986 |
| Approval | EAC LLC CDC TYSK |
| Body material | Brass |
| Capillary tube length [in] | 118 in |
| Capillary tube length [mm] | 3000 mm |
| China RoHS compliance | Yes |
| Contain batteries | No |
| Equalization connection type | Flare |
| Equalization size [in] | 1/4 in |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Max. Working Pressure [bar] | 28 bar |
| Max. Working Pressure [psig] | 400 psig |
| MOP Point [psig] | MOP 45 |
| MOP Point [°C] | -10 °C |
| MOP Point [°F] | 15 °F |
| Packing format | Multi pack |
| Parts Program name | TE 5 |
| Pressure equalization | Externally equalized |
| Product group | Expansion valves |
| Product Name Description | Element for expansion valve |
| Quantity per packing format | 12 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R404A/R507A |
| SCIP dossier no. | 7a4717a2-7803-4273-9d94-59ccfb927c1e |
| SCIP dossier product name | TE |
| Temperature range [°C] [max] | -15 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 5 °F |
| Temperature range [°F] [min] | -40 °F |
| Type | TE 5 |
| Type designation | Element |
