Location:Index--->Product Center >> Copeland Compressors >> Copeland Scroll Compressor ZR190KCE-TFD-522

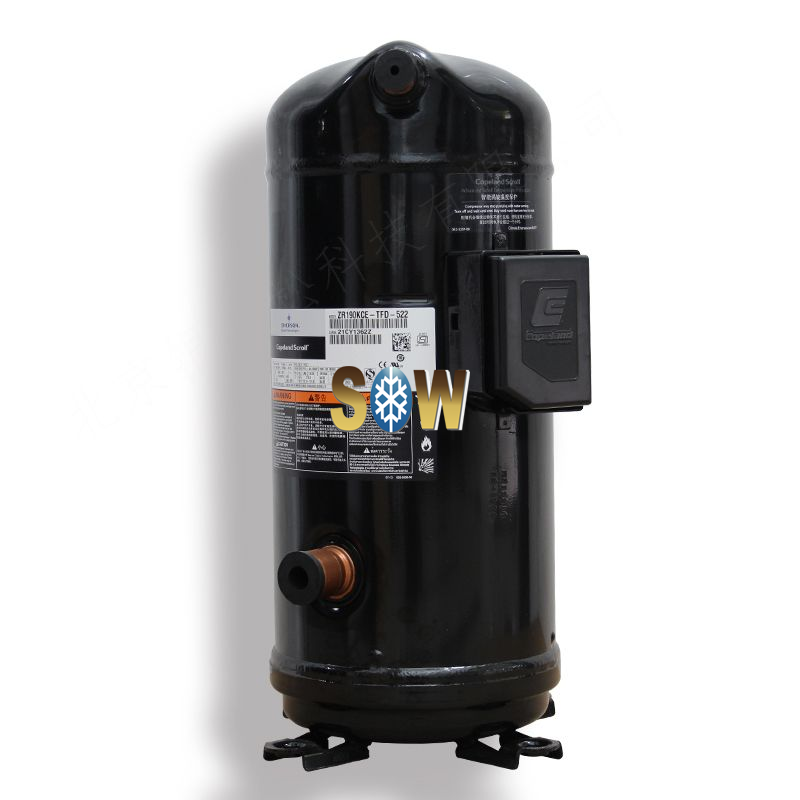

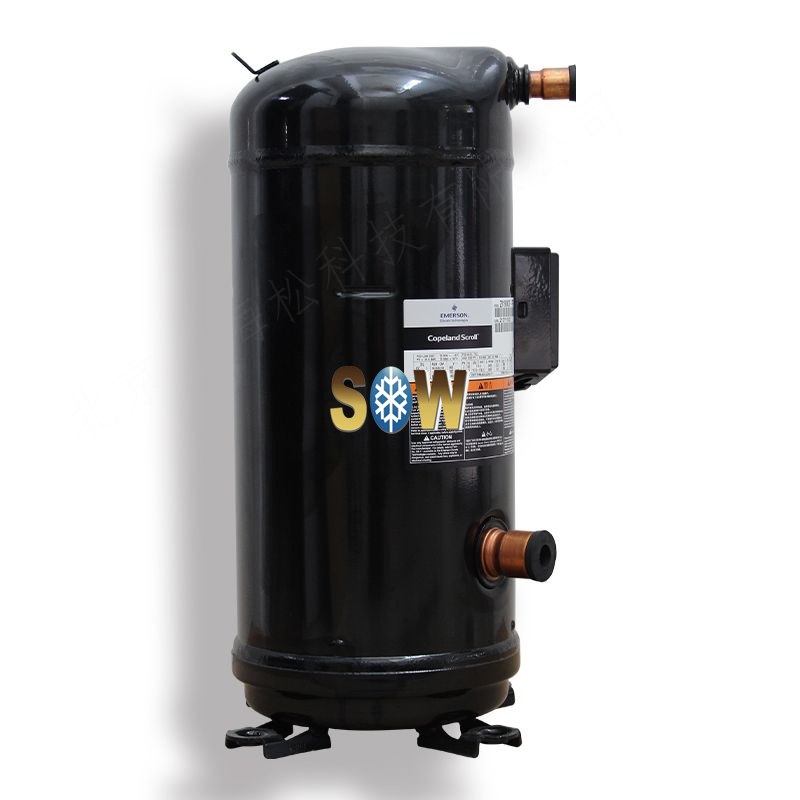

Name:Copeland Scroll Compressor ZR190KCE-TFD-522
Brand:Copeland
Model No.:ZR
Part No.:ZR190KCE-TFD-522
Horse Power:15HP
Packing:16pcs/pallet
N.W:66.2kgs/pc

Product Description

Copeland Scroll Compressor ZR190KCE-TFD-522

Apply 380V,3ph,50hz

Use R407C

Model

名义匹数

HP

 制冷能力

输入功率

(W)

电流

（A）

COP

（W/W）

EER

Btu/Wh

排量

cc/Rev.

注油量

（L）

净重

（kg）

堵转电流

（A）

噪音声功率

（dBA）
(W) (Btu/h)
ZR190KCE-TFD-522 15.0
 44000 150000 13650
 26.5 3.22 11.0
 249.2 3.25
 66.2 174.0
 82.0

Copeland Scroll™ axial and radial flex technology guarantees excellent reliability and high efficiency.

Wide product capacity range.

Lower recirculation rates.

Superior resistance to liquid strikes.

Low noise and vibration levels.

Lower LCCP (life cycle climate performance).

Excellent seasonal energy efficiency ratios with dual and triple units in parallel (subject to verification or validation by Copeland™).
