Location:Index--->Product Center >> HVAC Control cools spare parts >> Danfoss Shut-off valve, STC 20 148B4647


|
|
||||||||||||||||||
Product Description

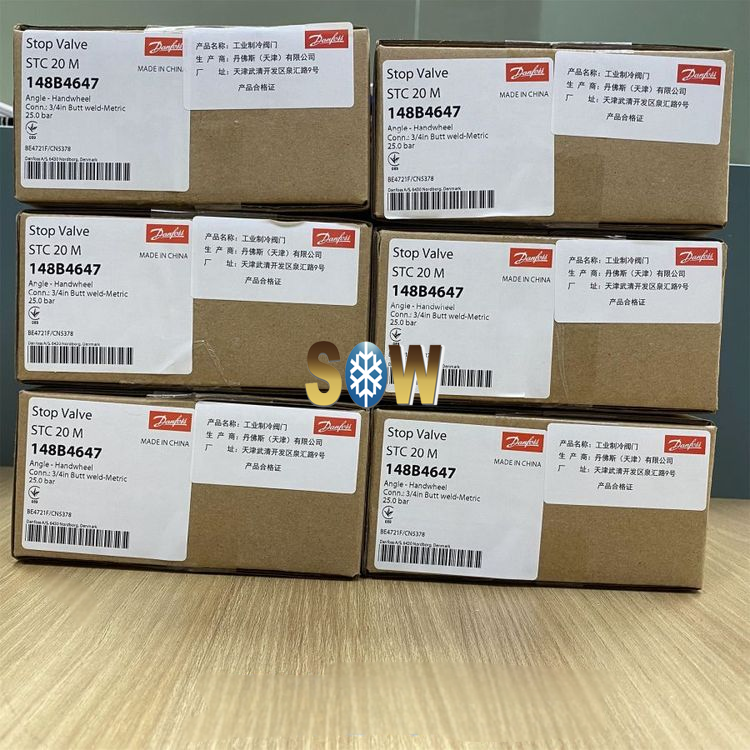

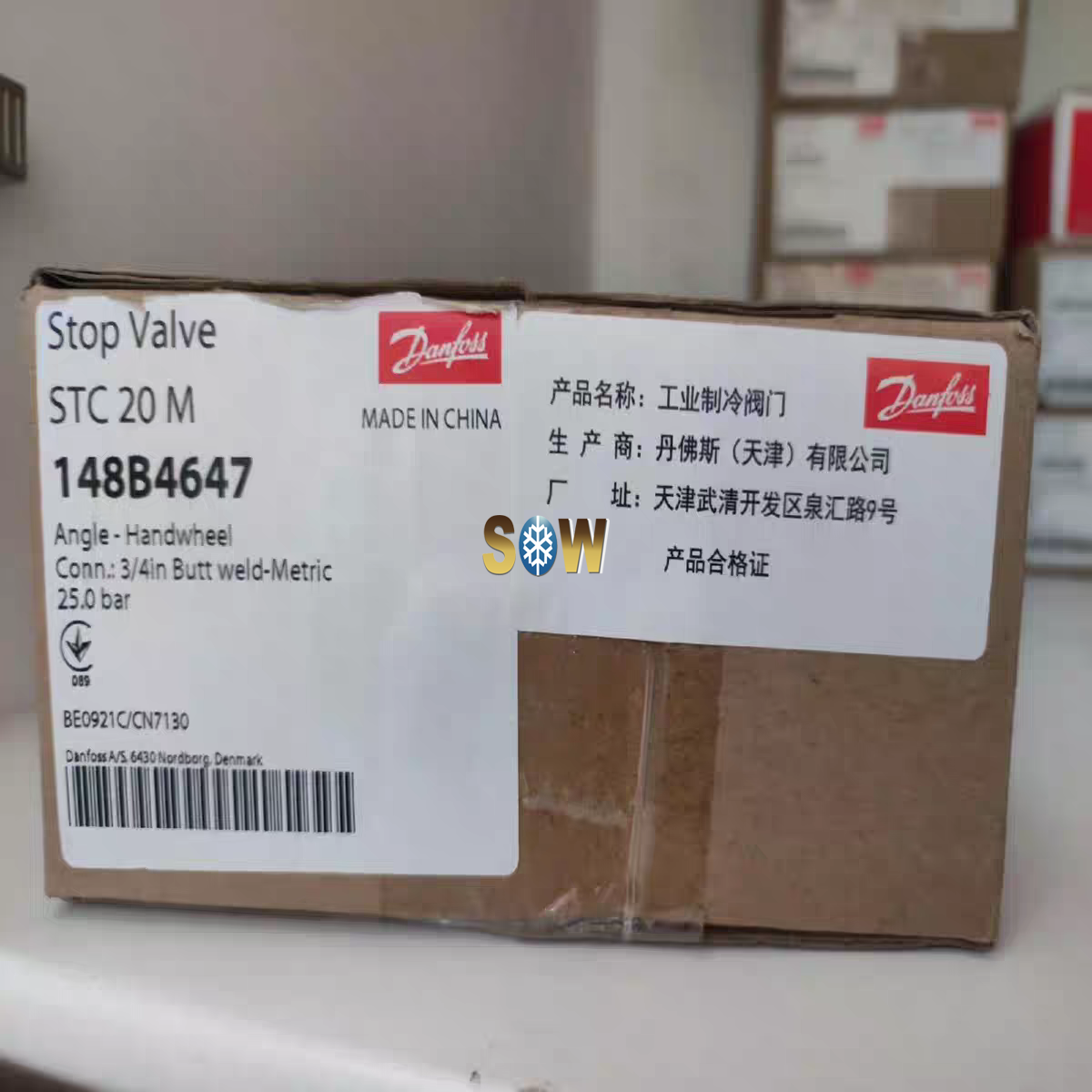

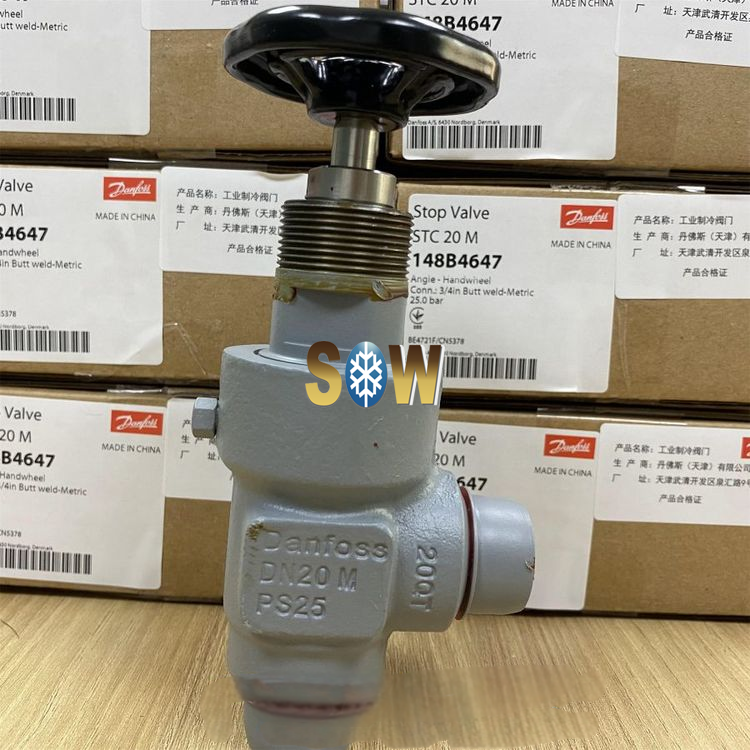

Danfoss Shut-off valve, STC 20 148B4647
Product details
| Gross weight | 1.16 Kilogram |
| Net weight | 1.1 Kilogram |
| Volume | 1.921 Cubic decimeter |
| EAN | 5702428883887 |
| Type | STC 20 |
| Product group | Shut-off and regulating valves |
| Product Name Description | Shut-off valve |
| Approval | LLC CDC TYSK |
| China RoHS compliance | Out of scope |
| Colour Paint | Gray |
| Connection standard | GB/T 17395 |
| Contain batteries | No |
| Direction | Angleway |
| Equipment | Handwheel |
| EU RoHS compliance | Out of scope |
| Inlet connection size [in] | 3/4 in |
| Inlet connection size [mm] | 20 mm |
| Inlet connection type | Butt weld |
| Max. Working Pressure [bar] | 25 bar |
| Max. Working Pressure [psig] | 365 psig |
| Outlet connection size [in] | 3/4 in |
| Outlet connection size [mm] | 20 mm |
| Outlet connection type | Butt weld |
| Packing format | Single pack |
| Product description | Stop valve |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134a R22 R404A R717 R507A |
| Temperature range [°C] [max] | 150 °C |
| Temperature range [°C] [min] | -50 °C |
| Temperature range [°F] [max] | 302 °F |
| Temperature range [°F] [min] | -58 °F |
