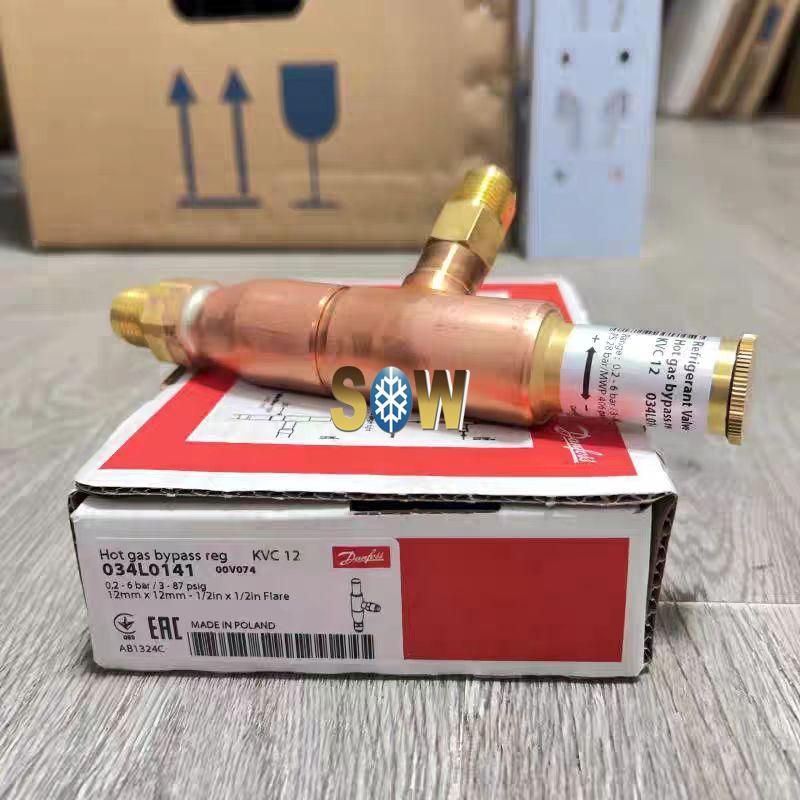

Name:	Danfoss Hot gas bypass regulator, KVC 12 034L0141
Brand:	Danfoss
Model No.:	KVC 12
Part No.:	034L0141
Country of origion:	Poland
G.W:	0.458kgs/pc
Inlet size [mm]:	12
Inlet connection type:	Flare
Outlet size [mm]:	12
Outlet connection type:	Flare
Regulation range [bar]:	0.2 - 6
Kv value [m³/h]:	0.68
Max. Working Pressure [bar]:	28

Danfoss Hot gas bypass regulator, KVC 12 034L0141

Product details

Approval	C UL US LISTED EAC LLC CDC TYSK RoHS RoHS China
Approval file name	REFRIGERANT VALVE 53R0
China RoHS compliance	Yes
Contain batteries	No
Cv value [gal/min]	0.79 gal/min
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
Factory setting [bar]	2 bar
Factory setting [psig]	29 psig
Flow direction indicator	Engraved 1-way arrow
Inlet connection type	Flare
Inlet size [in]	1/2 in
Inlet size [mm]	12 mm
Kv value [m³/h]	0.68 m³/h
Lubricants compatibility	Oilfree applications
Max. test pressure [bar]	31 bar
Max. test pressure [psig]	450 psig
Max. Working Pressure [bar]	28 bar
Max. Working Pressure [psig]	406 psig
Medium temperature range [°C] [max]	105 °C
Medium temperature range [°C] [min]	-45 °C
Medium temperature range [°F] [max]	220 °F
Medium temperature range [°F] [min]	-50 °F
Oil free refrigerants	R1234ze(E) R513A
Other RoHS documentation	EAEU RoHS
Outlet connection type	Flare

Outlet size [in]	1/2 in
Outlet size [mm]	12 mm
P band max. [bar]	2 bar
P band max. [psi]	29 psi
Packing format	Multi pack
Product accessories	No
Quantity per packing format	12 pc
Rated cap. R404A/R507A [kW]	6.9 kW
Rated cap. R404A/R507A [TR]	2.02 TR
Rated capacity R134a [kW]	4.8 kW
Rated capacity R134a [TR]	1.36 TR
Rated capacity R22 [kW]	7.6 kW
Rated capacity R22 [TR]	2.14 TR
Rated capacity R407C [kW]	8.4 kW
Rated capacity R407C [TR]	2.31 TR
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R1234yf R1234ze(E) R134a R22 R404A R407A R407C R407F R407H R422B R422D R448A R449A R449B R450A R452A R454A R454C R455A R507A R513A R515B R516A
Regulation range [bar] [max]	6 bar
Regulation range [bar] [min]	0.2 bar
Regulation range [psig] Pe [max]	87 psig
Regulation range [psig] Pe [min]	3 psig
SCIP dossier no.	842c526f-b213-4baa-869c-a91bb999a318
Serviceable	KV valves spare parts
UL approved refrigerants	R134a R22 R404A R407A R407C R407F R407H R422B R422D R448A R449A R449B R450A R452A R507A R513A R515B
UL evaluated	Yes
