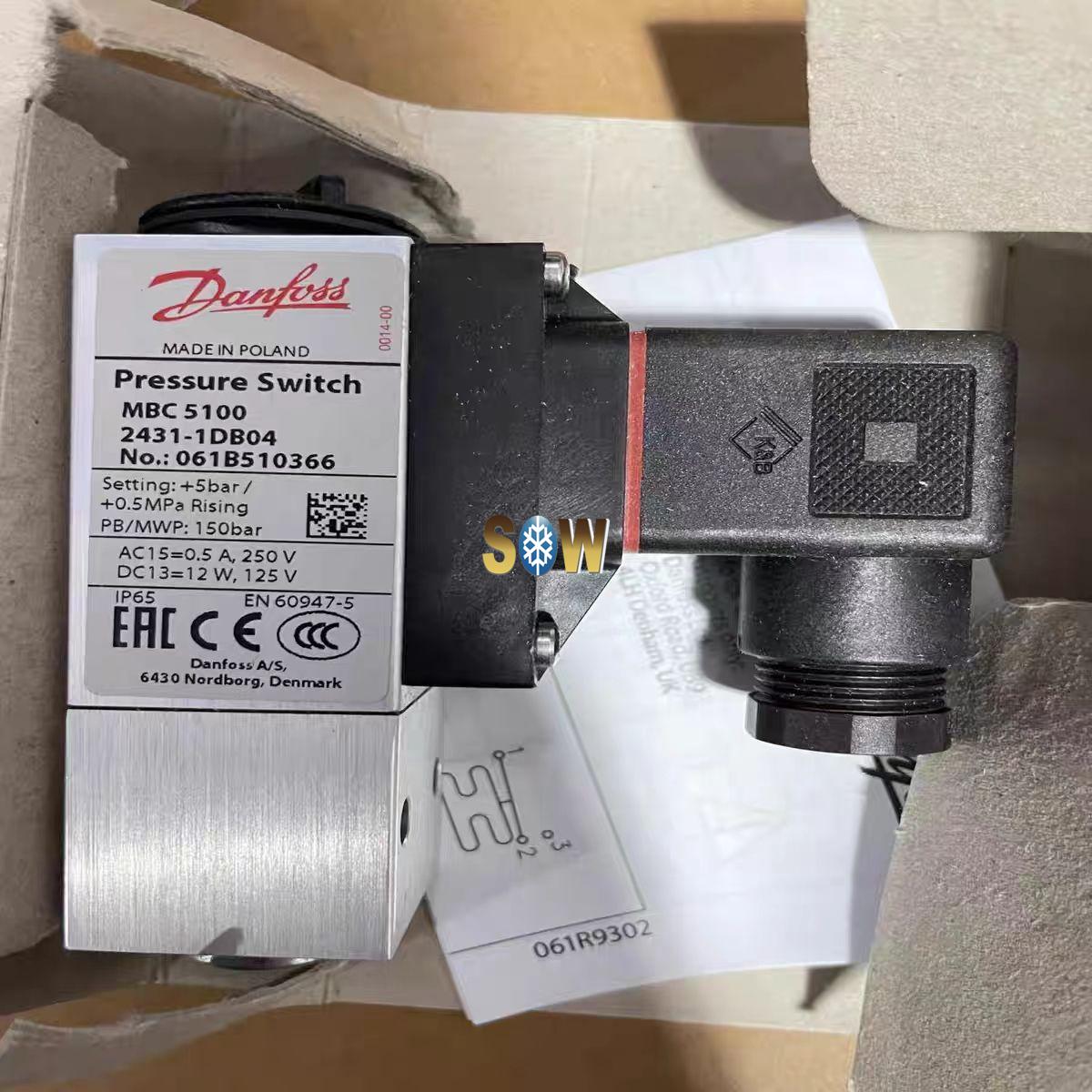

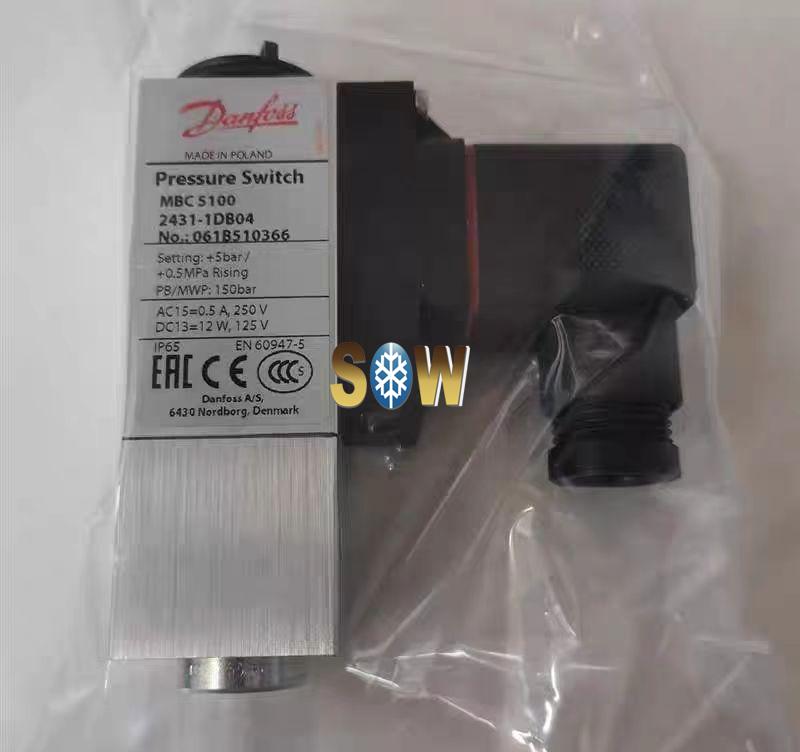

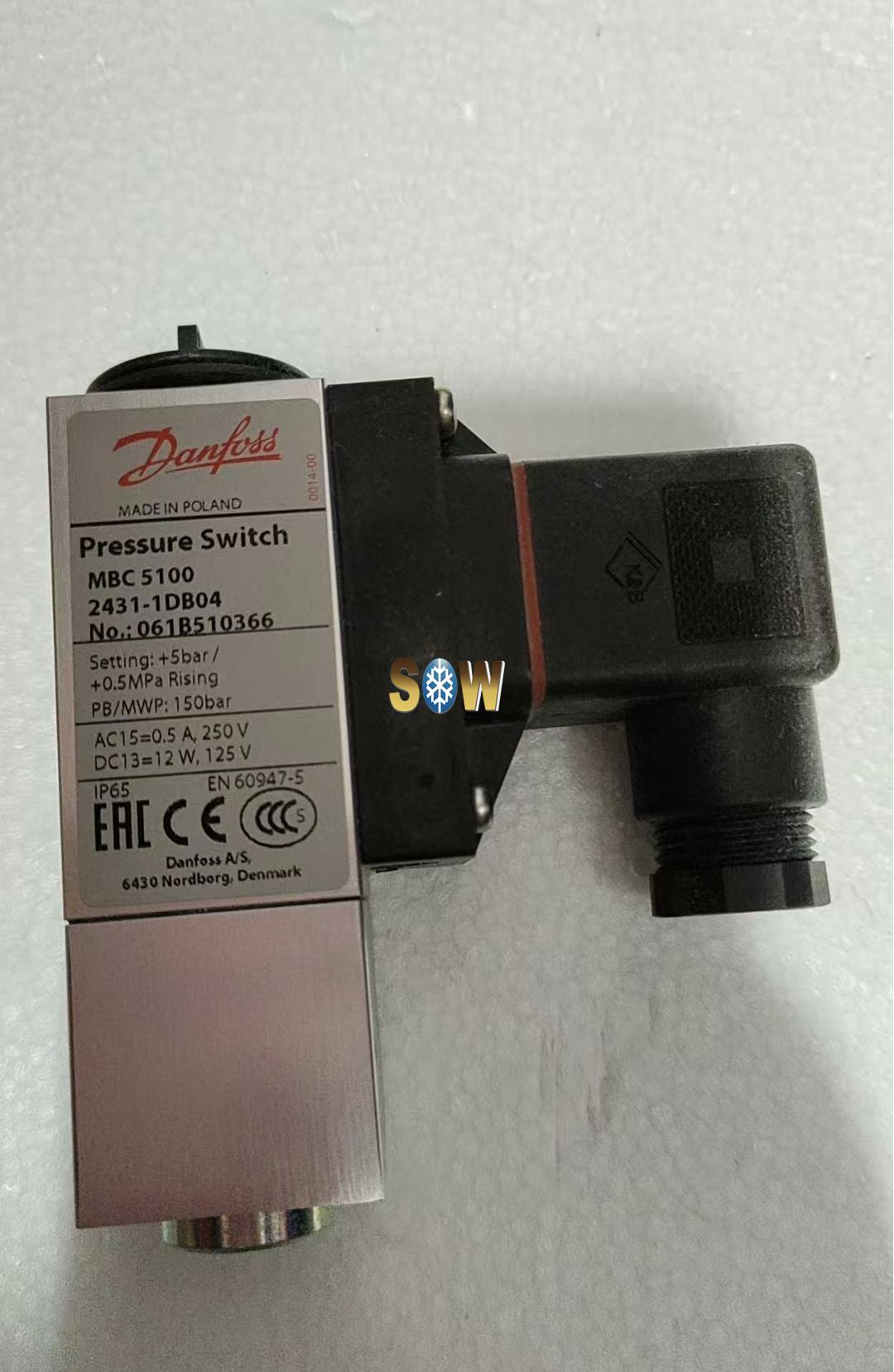

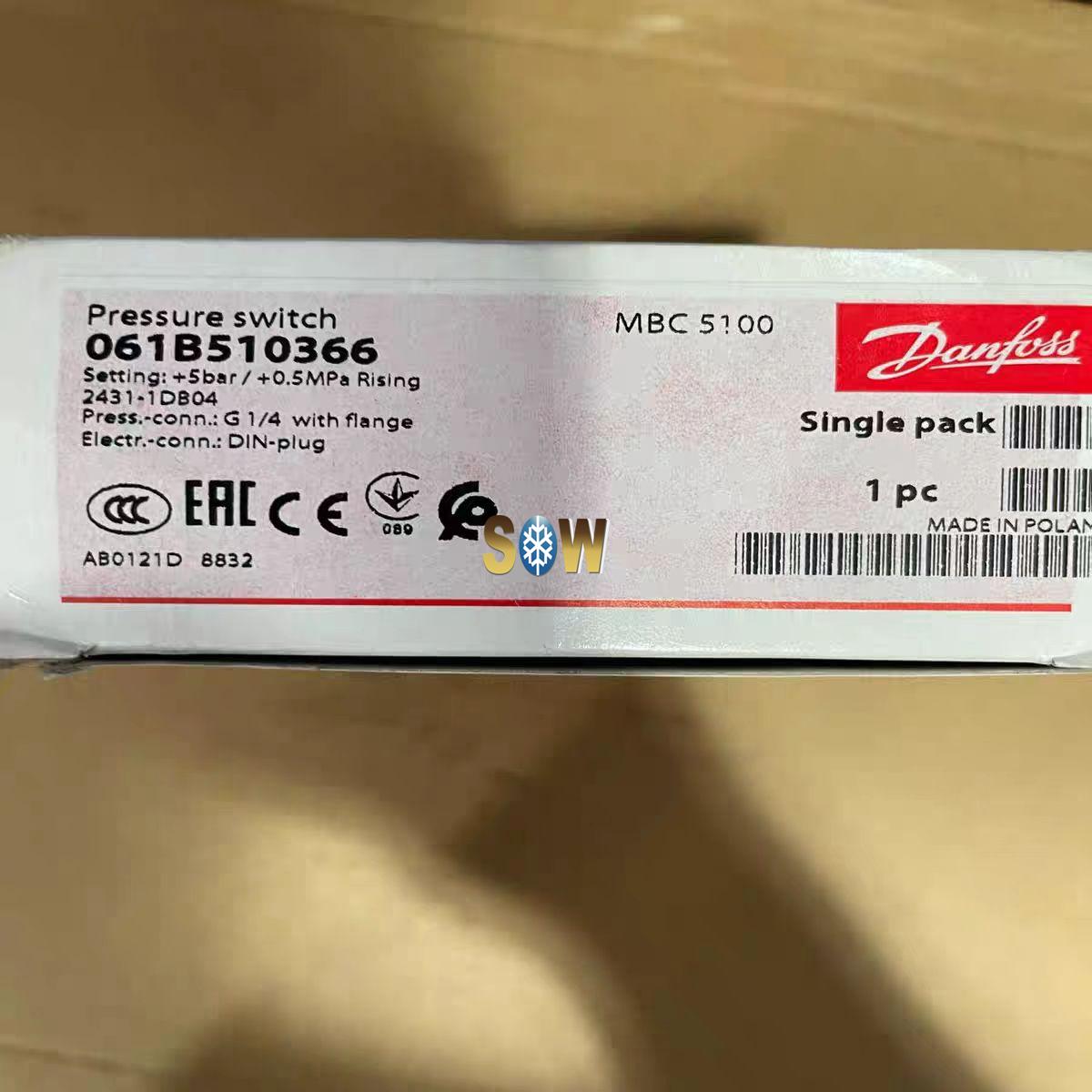

Name:	Danfoss Pressure switch, MBC 5100 061B510366
Brand:	Danfoss
Model No.:	MBC 5100
Part No.:	061B510366
Country of origion:	Poland
Regulation range [bar] Pe:	1 - 10
Reset function:	AutO
Pressure connection type:	G
Pressure connection size::	1/4
Enclosure rating IP:	IP65
Max. Working Pressure [bar]:	150

Danfoss Pressure switch, MBC 5100 061B510366

Product details

Alarm Signal	Rising
Ambient temperature range [°C] [max]	85 °C
Ambient temperature range [°C] [min]	-10 °C
Ambient temperature range [°F] [max]	185 °F
Ambient temperature range [°F] [min]	14 °F
Approval	ABS BV CCC CCS CE CMIM DNV EAC GL KRS LLC CDC EURO-TYSK LR NKK RINA RMRS
Burst pressure [bar]	300 bar
CE evaluated	Yes
China RoHS compliance	Yes
Contact function	SPDT
Contact rating	AC15=0.5 A, 250 V DC13=12 W, 125 V
Contains batteries	No
Diff.@Max. range setting [bar]	2.5 bar
Diff.@Min. range setting [bar]	1 bar
Electrical conn. Male/Female	Female
Electrical connection	DIN-plug
Electrical connection size	Pg 11
Electrical connection standard	EN 175301-803-A
Electrical spec. standard	EN 60947-5
Enclosure rating IP	IP65
EU RoHS compliance	Out of scope
Factory setting [bar]	5 bar
Factory setting [MPa]	0.5 MPa
Max. test pressure [bar] Pe	150 bar

Max. test pressure [psig]	2176 psig
Max. Working Pressure [bar]	150 bar
Max. Working Pressure [psig]	2175 psig
Packing format	Multi pack
Pressure connection notes	With flange
Pressure connection size	1/4
Pressure connection standard	ISO 228-1
Pressure connection type	G
Pressure Male/Female	Female
Pressure sensing element	Diaphragm
Product accessories	Switches accessories
Product description	Pressure Switch
Quantity per packing format	32 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Regulation range [bar] Pe [max]	10 bar
Regulation range [bar] Pe [min]	1 bar
Regulation range [MPa] Pe [max]	1 MPa
Regulation range [MPa] Pe [min]	0.1 MPa
Reset function	Auto
SCIP dossier no.	69958bd3-3b22-42dc-aa8a-888e92c5e7e8
SCIP dossier product name	MBC 5100 5000 Pressure Switch
Serviceable	No
Specification key	2431-1DB04
