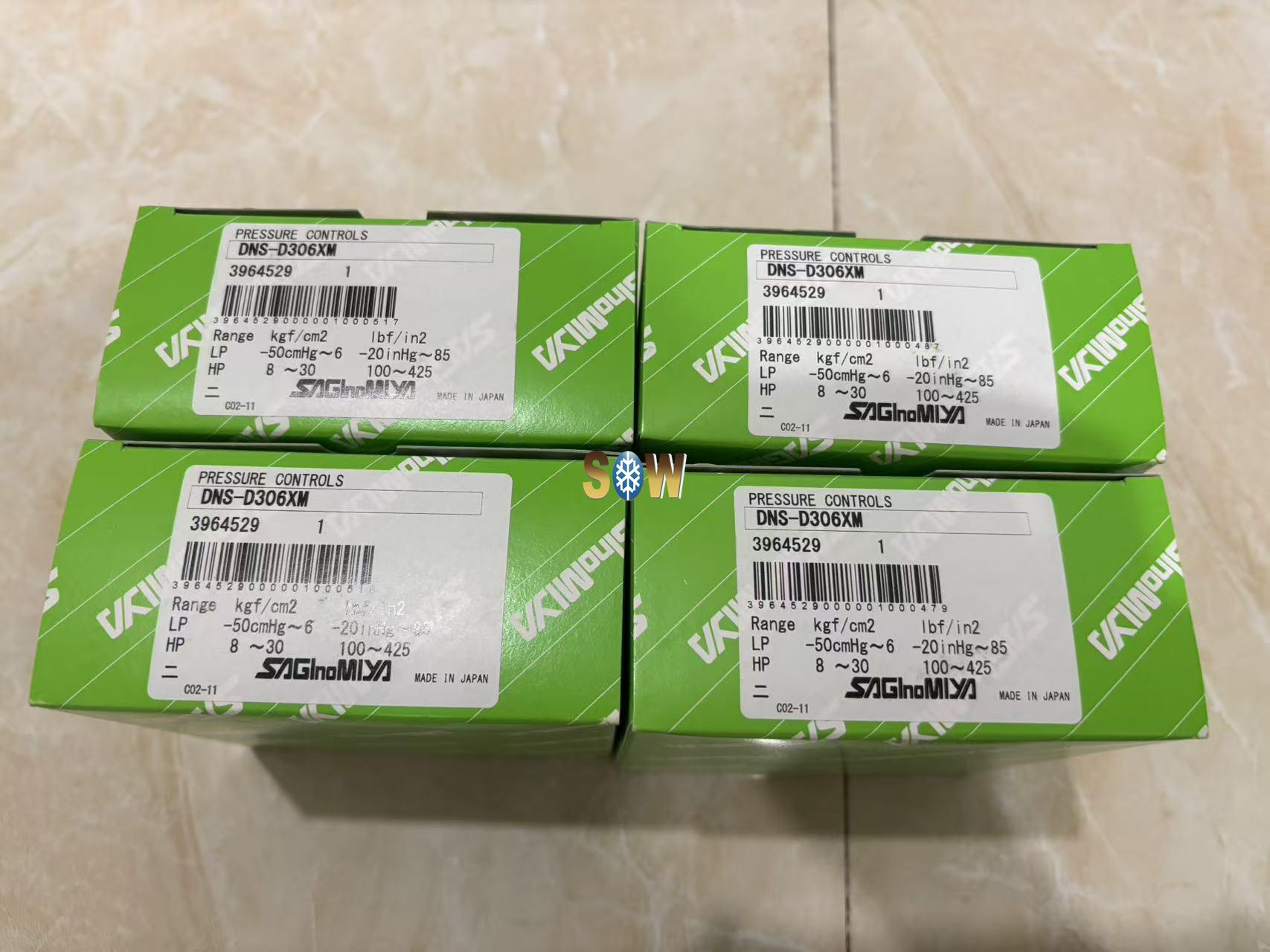

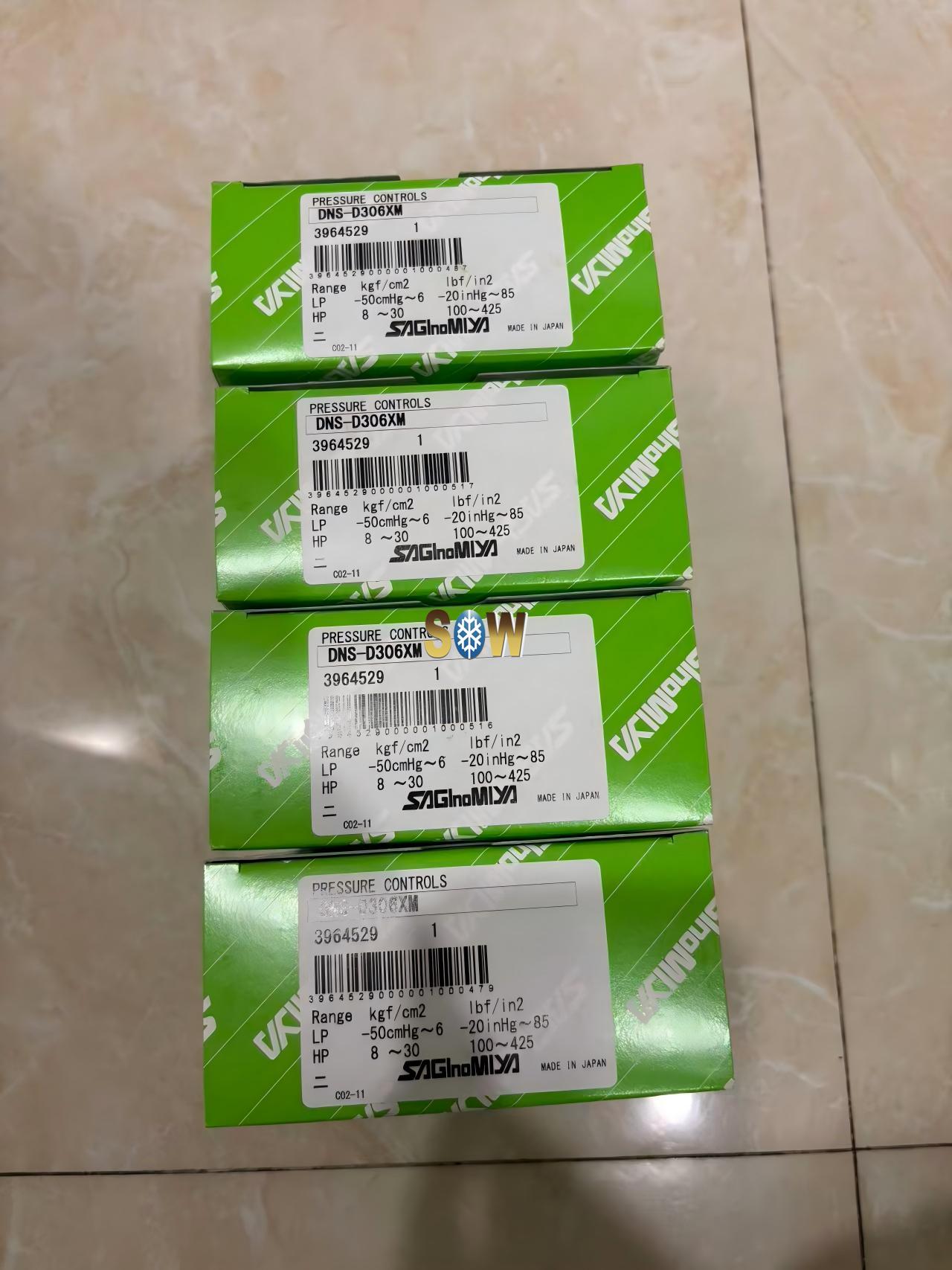

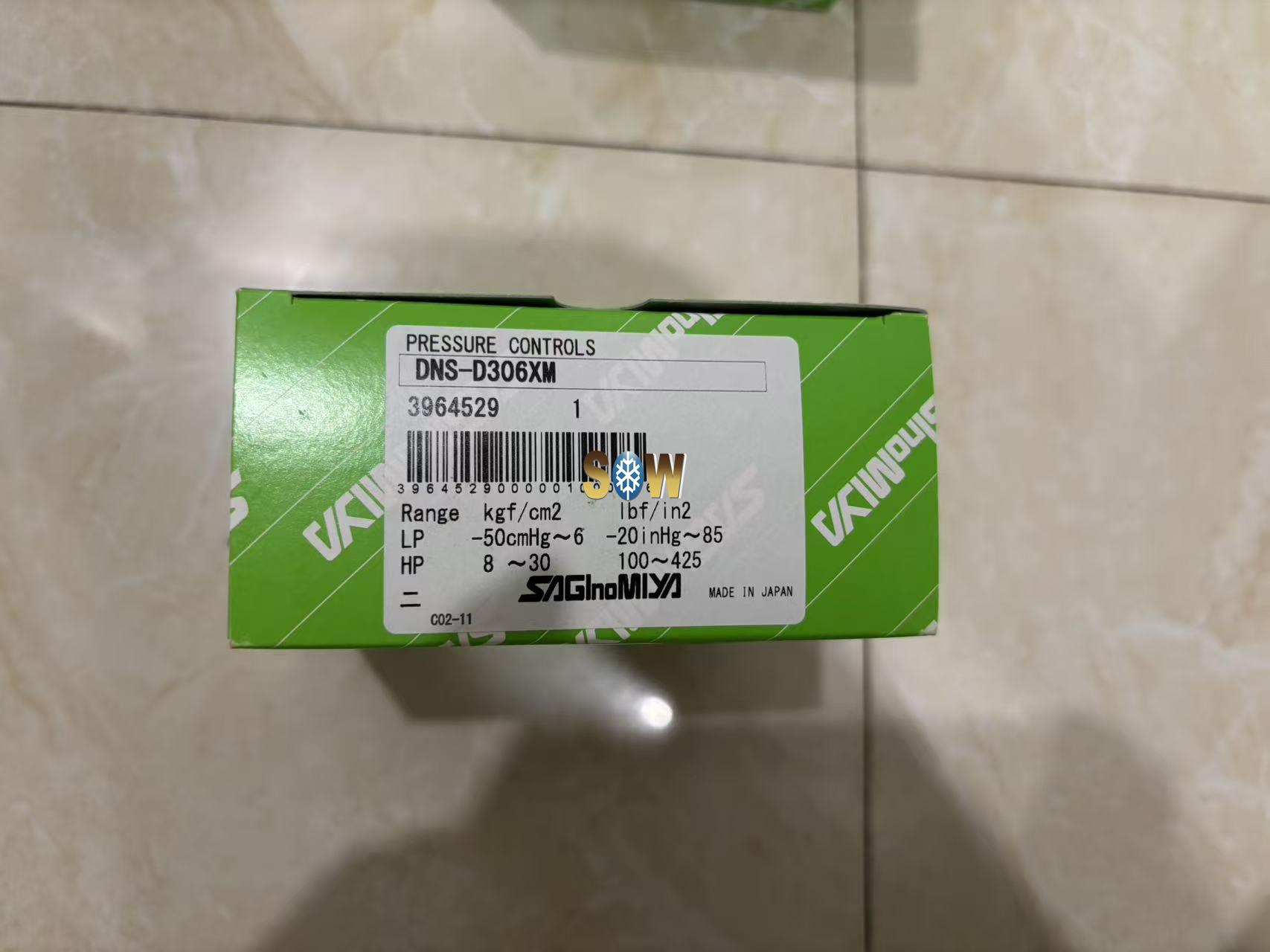

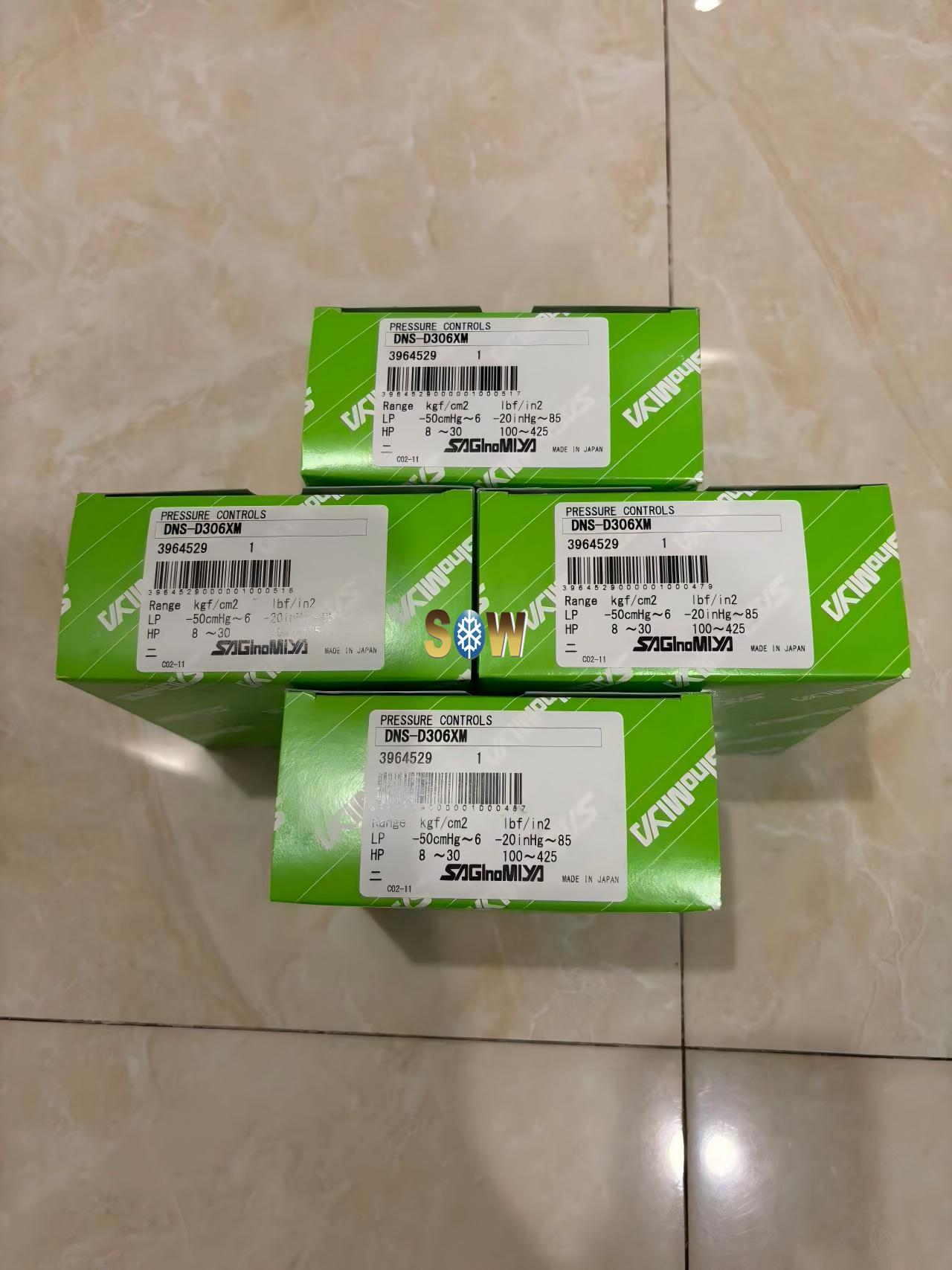

SAGINOMIYA Dual Pressure controls DNS-D306XM

Type DNS is dual pressure controls that is integrated with over pressure protection of the high pressure side and control of low pressure side of the refrigeration unit.

Scale plate with significantly clear visibility

Compact and light weight

Fluid temperature: －20 to 120°C

Ambient temperature: －20 to 70°C

Manufacturer : Saginomiya

Product No. :DNS–D306XM

Product Type. : DUAL PRESSURE CONTROLS

Range

Low Side : -0.06 {-50cmHg} min ,0.6 {6} max

High Side : 0.8 {8} min , 3 {30} max

Differential

Low Side : 0.06 {0.6} min ,0.4 {4}max

High Side: Automatic operation on pressure rise, and manual reset.

Factory Setting

Low Side : 0.2 {2} off , 0.3 {3 on

High Side: 2 {20} off, manual reset on

Max. Bellows Pressure :

Low Side : 1.65 {16.5}

High Side: 4 {40}

Weight : 0.51kgs/pc
