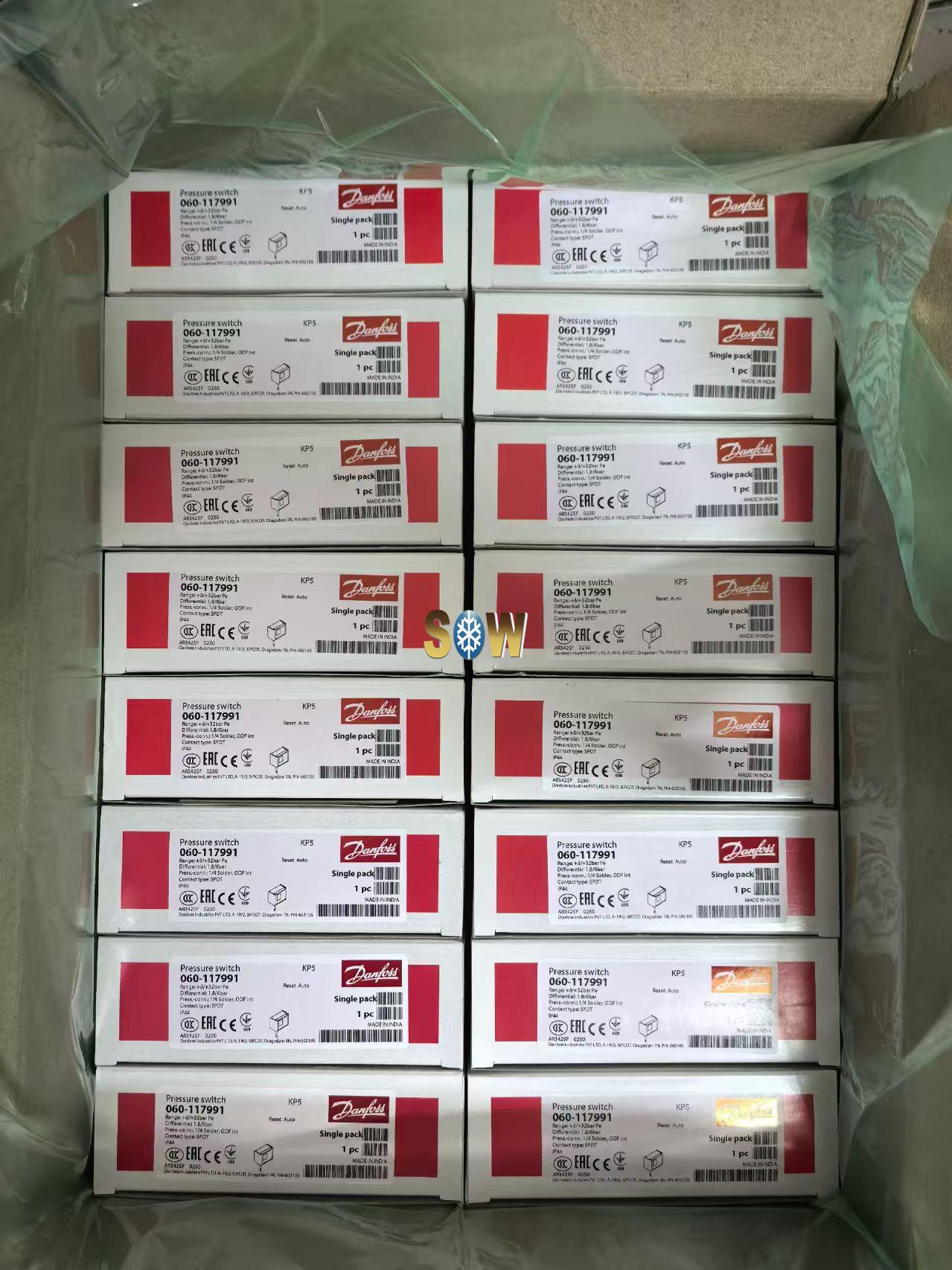

Danfoss Pressure switch, KP5 060-117991

Product details

Amb. Temp. Note	80 °C/176 °F for max 120 min
Ambient temperature range [°C] [max]	65 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [max]	149 °F
Ambient temperature range [°F] [min]	-40 °F
Approval	BV CCC CE DNV EAC GL LLC CDC EURO-TYSK LR Read more
CE evaluated	Yes
China RoHS compliance	Yes
Contact function	SPDT
Contact rating	AC15=10 A, 400 V AC1=16 A, 400 V AC3=16 A, 400 V DC13=12 W, 220 V LR=112 A, 400 V
Contains batteries	No
Differential [bar] [max]	6 bar
Differential [bar] [min]	1.8 bar
Differential [psi] [max]	87 psi
Differential [psi] [min]	26 psi
Electrical connection	Rubber cable gland
Electrical connection size	6-14 mm
EN 60947 electrical properties	Insulation: 400V Pollution degree: 3 Rated impulse voltage: 4 kV Short circuit prot, fuse: 16A
EN 60947 wiring properties	Flex, ferrules: 0.5-1.5 mm2 Flex, no ferrules: 0.7-2.5 mm2 Solid/stranded: 0.75-2.5 mm2
Enclosure rating IP	IP44
Enclosure rating Nema (~)	2
EU RoHS compliance	Yes
EU RoHS exemption clause	No
Lubricants compatibility	Oilfree applications
Max. test pressure [bar] Pe	35 bar
Max. test pressure [psig]	510 psig

Max. Working Pressure [bar]	35 bar
Max. Working Pressure [psig]	510 psig
Oil free refrigerants	R134a R513A R515B
Packing format	Multi pack
Pressure connection size	1/4
Pressure connection standard	EN 1254-1
Pressure connection type	Solder, ODF
Pressure Male/Female	Female
Pressure sensing element	Bellows
Product accessories	Switches accessories
Product description	Pressure Switch
Quantity per packing format	32 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1) Cadmium oxide (CAS no.1306-19-0)
Refrigerants	R113 R1234yf R1234yz R1234ze(E) R124 R134a R22 R404A Read more
Regulation range [bar] Pe [max]	32 bar
Regulation range [bar] Pe [min]	8 bar
Regulation range [psig] Pe [max]	464 psig
Regulation range [psig] Pe [min]	116 psig
Reset function	Auto
SCIP dossier no.	1b8fc5ed-65e2-48fc-8738-8cce613a9786
SCIP dossier product name	KP KPI
Serviceable	No
UL approval file name	E31024
UL approved refrigerants	R113 R124 R134a R22 R404A R407A R407C R407F Read more
UL mark	Yes
