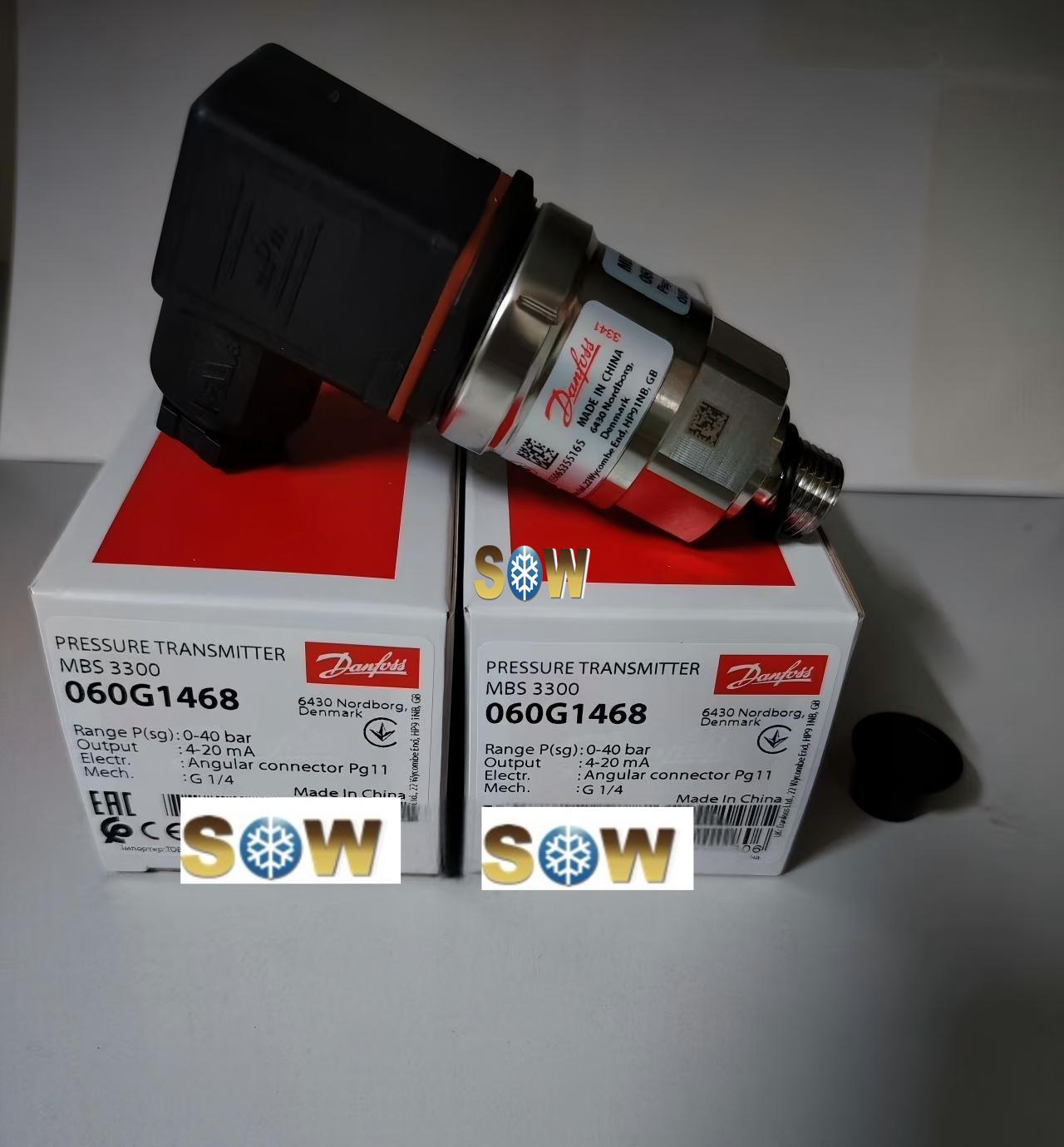

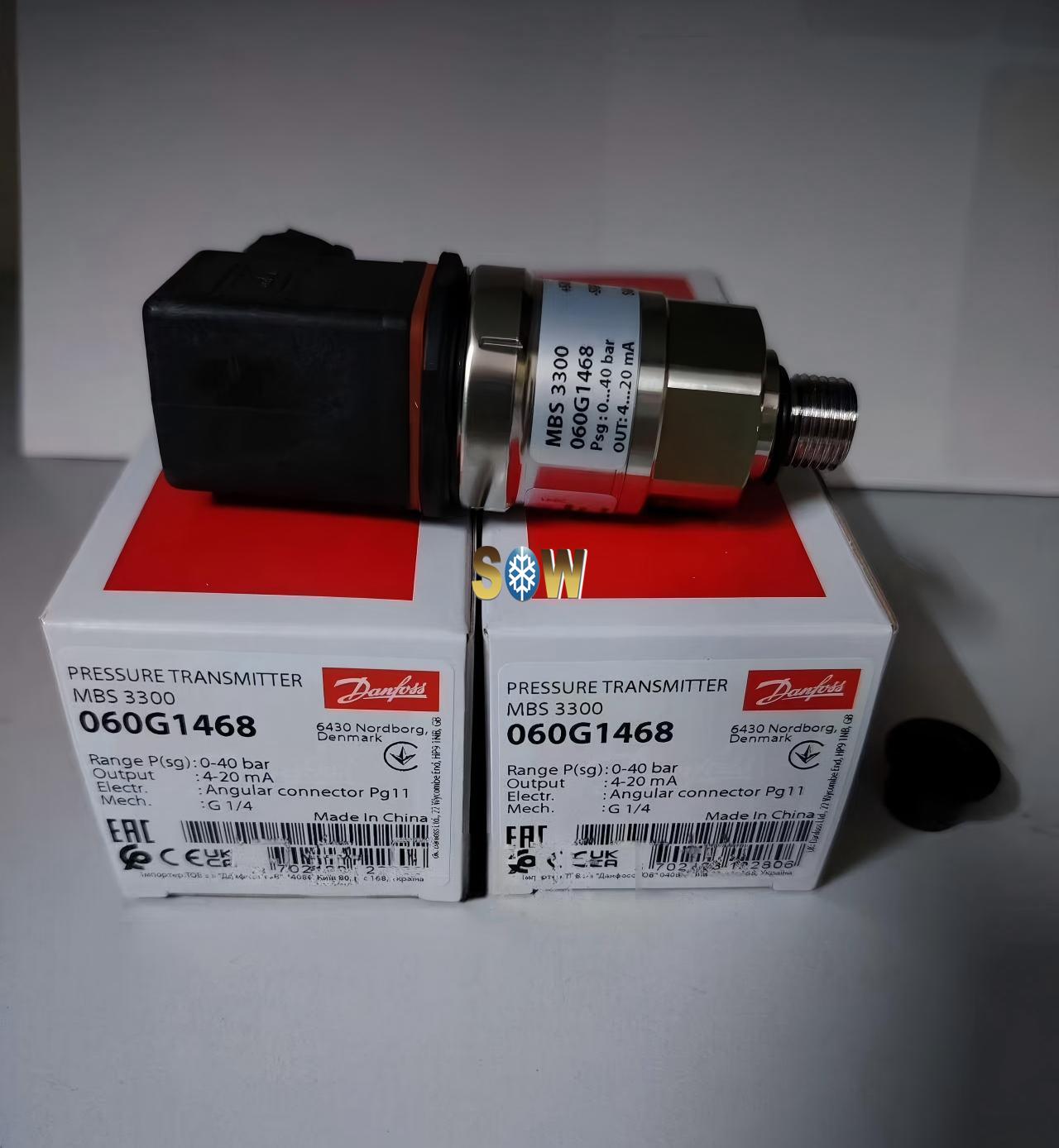

Name:	Danfoss Pressure transmitter, MBS 3300, 060G1468
Brand:	Danfoss
Model No.:	MBS 3300
Part No.:	060G1468
Country of origion:
G.W:	0.176kgs/pc
Pressure range [bar]:	0 bar - 40 bar
Pressure reference:	Sealed gauge
Output signal:	Current
Electrical connection:	Angular connector
Pressure connection type:	G
Pressure connection size:	1/4
Specification key:	MBS 3300-2631-A6FB04-4

Danfoss Pressure transmitter, MBS 3300, 060G1468

Product details

+ supply	Pin 1
- common	Pin 2
Accuracy, max. [±FS%]	1 %
Accuracy, typical [±FS%]	0.5 %
Adj. zero point and span	No
Ambient temperature range [°C] [max]	100 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [max]	212 °F
Ambient temperature range [°F] [min]	-40 °F
Approval	ATEX CE C UL US UL Recognized
Approval comments	ATEX Ex ec IIA T4 Gc
CE evaluated	Yes
China RoHS compliance	Out of scope
Compensated temp. range [°C] [max]	100 °C
Compensated temp. range [°C] [min]	0 °C
Compensated temp. range [°F] [max]	212 °F
Compensated temp. range [°F] [min]	32 °F
Contains batteries	No
EEE category	5 small equipment (any external dimension < 50 cm)
Electrical conn. Male/Female	Male and Female
Electrical connection	Angular connector
Electrical connection size	Pg 11
Electrical connection standard	EN 175301-803-A
Enclosure rating IP	IP65
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
Flush diaphragm	No
High Clipping Level	22.4
In scope of WEEE	No
International Article Number	5702423122806
Intrinsically safe	No
Low Clipping level	3.6

Medium temperature range [°C] [max]	125 °C
Medium temperature range [°C] [min]	-40 °C
Medium temperature range [°F] [max]	257 °F
Medium temperature range [°F] [min]	-40 °F
Non-linearity BFSL [±FS%]	0.5 %
Other RoHS documentation	Saudi Arabia RoHS
Output signal	Current
Output signal [mA] [max]	20 mA
Output signal [mA] [min]	4 mA
Overload pressure max. [bar]	100 bar
Packing format	Multi pack
Pressure connection HEX [mm]	27 mm
Pressure connection size	1/4
Pressure connection standard	DIN 3852-G
Pressure connection type	G
Pressure Male/Female	Male
Pressure range [bar] [max]	40 bar
Pressure range [bar] [min]	0 bar
Pressure range [psi] [max]	580 psi
Pressure range [psi] [min]	0 psi
Pressure reference	Sealed gauge
Pulse-snubber	No
Quantity per packing format	14 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Response time max. [ms]	4 ms
SCIP dossier no.	16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d
SCIP dossier product name	AKS/MBS
Specification key	MBS 3300-2631-A6FB04-4
Supply voltage [V] DC [max]	32 V
Supply voltage [V] DC [min]	9 V
UL mark	Yes
