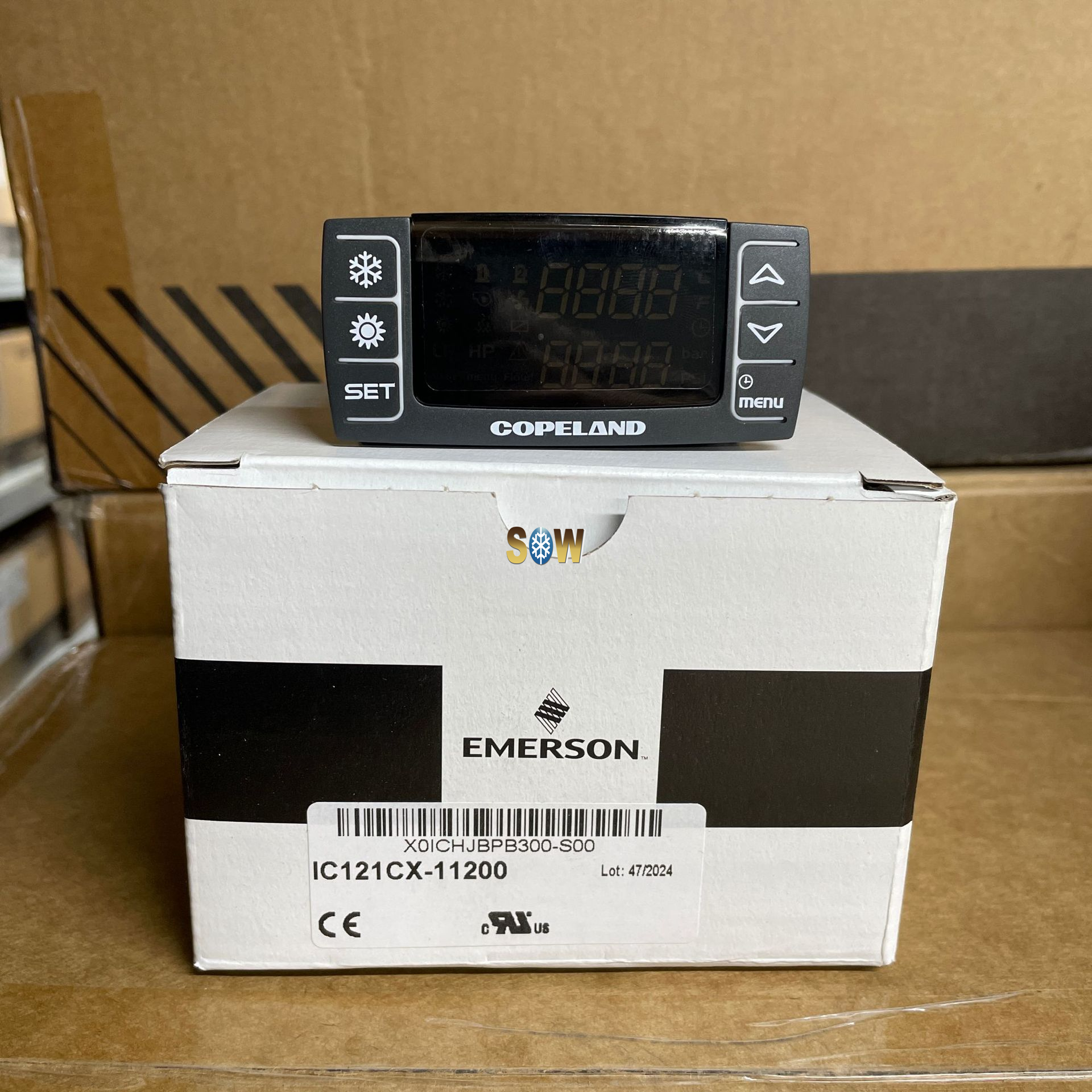

Copeland heat pump controller IC121CX-11200

ADVANCED MULTIFUNCTION CONTROLLER FOR CHILLER/HEAT PUMP WITH 1 CIRCUIT AND 2 COMPRESSORS

Features

Twin compressor functioning

Function of compressor capacity stages for high and low condensing pressure

ON/OFF or variable speed condensing fan control without the need to use external devices

Forced and combined defrost

Energy saving for time band or digital contact

Internal data logger with up to 50 alarms

Real time clock

Voltage output for additional external relay management

Analog input configurable as NTC, 4÷20mA and 0÷5V ratiometric

Configurable relays, probes and digital inputs

Hot Key for quick and easy programming

Serial connection to monitoring systems

Specifications

Analogs:4÷20MA/0÷10V optional

Buzzer:Optional

Digital Inputs:HP: present - LP: present - N° 4: configurable

Display:Dual with icons

Hot Key Output:Present

Power Supply:12, 24Vac/dc

Probe Inputs:Pb1: NTC - Pb2: NTC - Pb3: NTC, 4÷20mA, 0÷5V configurable - Pb4: NTC, DI configurable

Prog Tool Kit Output:Present

Real Time Clock:Optional

Relay Outputs:RL1 Compressor 1: 8A - RL2: 8A configurable - RL3: 8A configurable - RL4: 8A configurable - RL5: 8A configurable

Remote Display Output:1 X VICX610

Signal For Fan Speed Control:PWM

TTL Output:Present

Voltage Output For External Relay:12Vdc-40mA max
