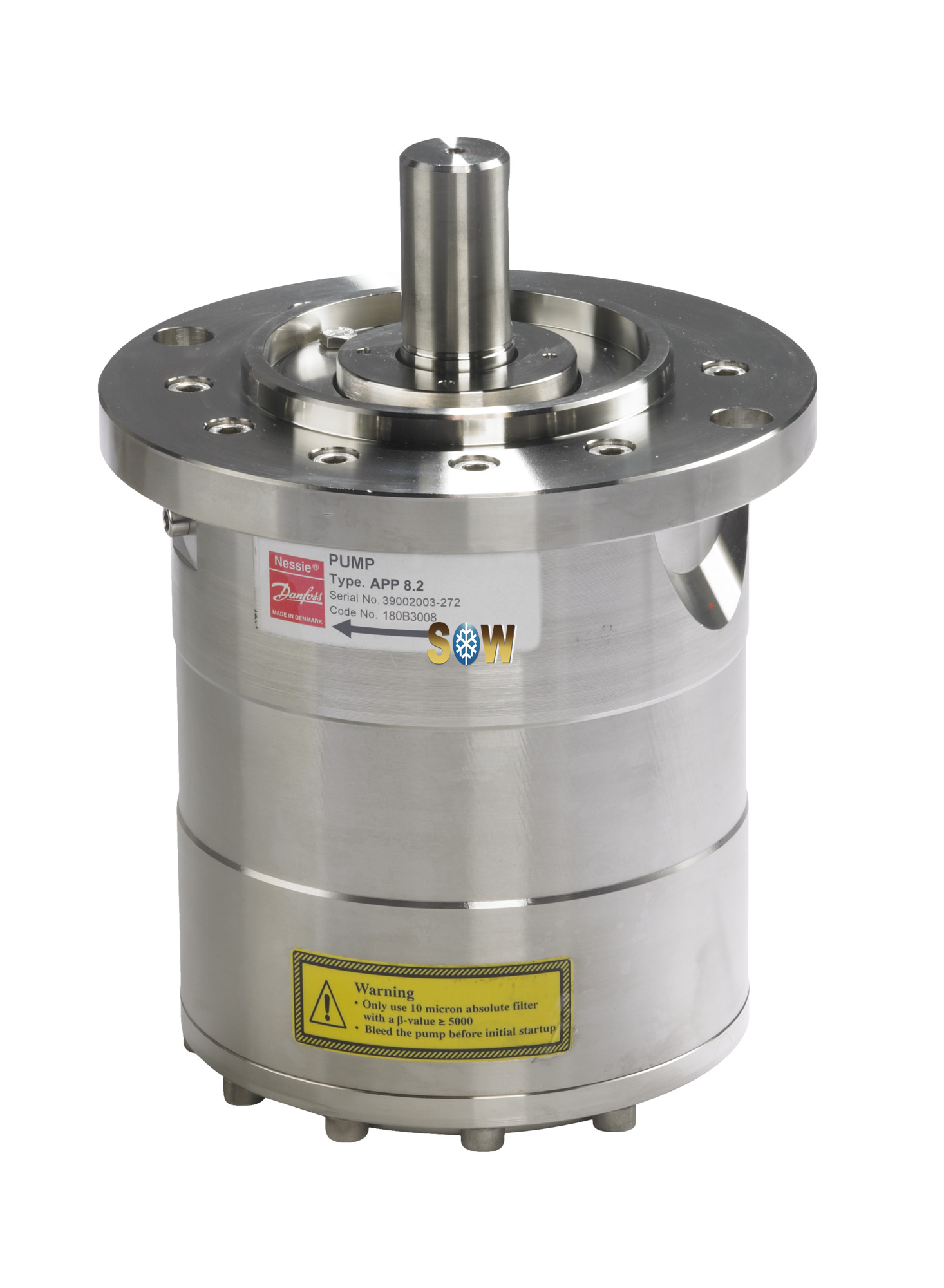

Danfoss APP pumps, APP 8.2 180B3008

Product details

Ambient temperature [°C] [max]	50 °C
Ambient temperature [°C] [min]	0 °C
Ambient temperature [°F] [max]	122 °F
Ambient temperature [°F] [min]	32 °F
Approval	CE
ATEX compliance	No
Body material	Duplex
CE mark	Yes
China RoHS compliance	Out of scope
Contains batteries	No
Country of origin	Denmark
Description	Pump for sea- or brackish water
Displacement [cm³/rev]	80.4 cm³/rev
Displacement [in³/rev]	4.91 in³/rev
Drain connection size (metric)	M6
Drain connection standard	Metric
Drain connection type	Thread
EU RoHS compliance	Out of scope
Flow [gpm] [Max]	36 gal/min
Flow [gpm] [Min]	13 gal/min
Flow [l/min] [Max]	138.5 l/min
Flow [l/min] [Min]	50 l/min
Flow [m³/h] [Max]	8.3 m³/h
Flow [m³/h] [Min]	3 m³/h
In scope of WEEE	No
Inlet connection size (metric)	M42
Inlet connection standard	Metric
Inlet connection type	Thread
Inlet pressure [barg] [Max]	5 barg

Inlet pressure [barg] [Min]	0.5 barg
Inlet pressure [psig] [Max]	72.5 psig
Inlet pressure [psig] [Min]	7.3 psig
Inlet pressure peak [barg] [Max]	5 barg
Inlet pressure peak [psig] [Max]	73 psig
Media temperature [°C] [Max]	50 °C
Media temperature [°C] [Min]	2 °C
Media temperature [°F] [Max]	122 °F
Media temperature [°F] [Min]	36 °F
Outlet connection size (metric)	M42
Outlet connection standard	Metric
Outlet connection type	Thread
Outlet pressure [barg] [Max]	83 barg
Outlet pressure [barg] [Min]	20 barg
Outlet pressure [psig] [Max]	1200 psig
Outlet pressure [psig] [Min]	290 psig
Outside dimensions of packaging LxWxH [in]	14,9x11,8x11,8
Outside dimensions of packaging LxWxH [mm]	380x300x300
Product description	APP pumps
REACH Candidate List substances	No
Seal Material	NBR
Serviceable	Yes
Sound pressure level [dB(A)]	78 dBA
Speed [rpm] [Max]	1800 rpm
Speed [rpm] [Min]	700 rpm
Speed continuous [rpm] [Min]	700 rpm
Type designation	APP 8.2
UL mark	No
