Product Description

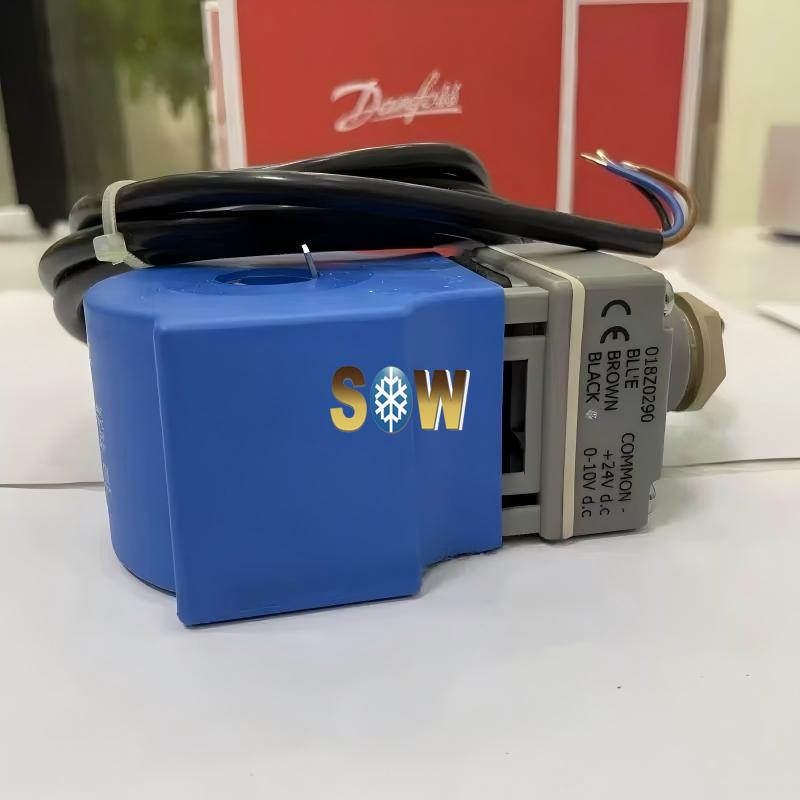

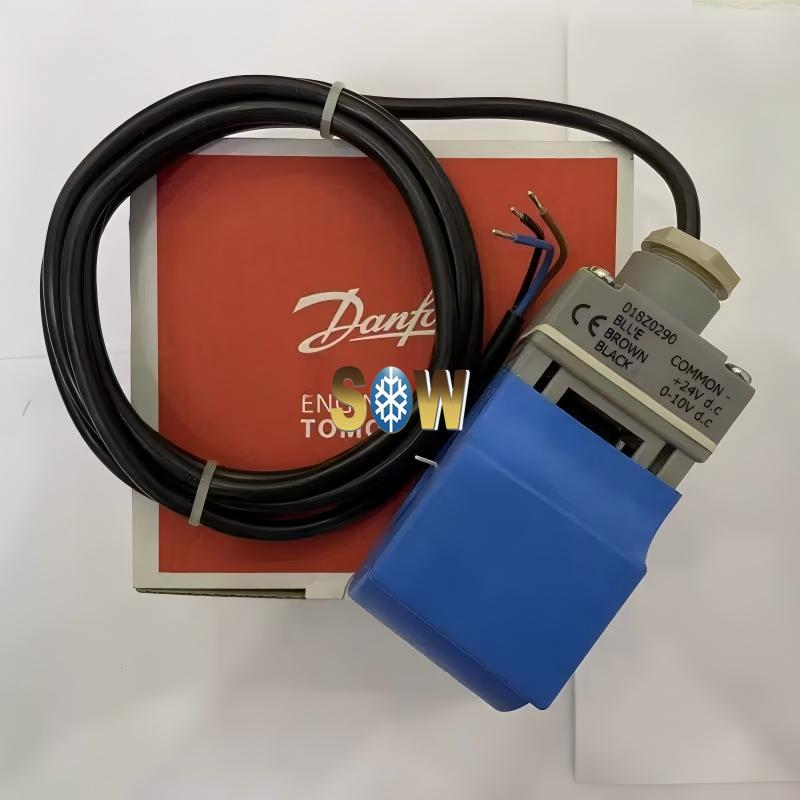

Danofss Solenoid coil, 018Z0290
Product details
| Gross weight | 0.774 Kilogram |
| Net weight | 0.739 Kilogram |
| Volume | 1.678 Liter |
| EAN | 5702423030118 |
| Type | BM024D |
| Product group | Solenoid valves |
| Product Name Description | Solenoid coil |
| Actuator size | 13.5 mm |
| Ambient temperature range [°C] [max] | 50 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 122 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Cable length [in] | 78.74 in |
| Cable length [m] | 2 m |
| China RoHS compliance | Out of scope |
| China RoHS exemption clause | No |
| Coil connection | Cable |
| Coil fastening | Nut and snap |
| Colour | Blue |
| Contains batteries | No |
| Division | 01 |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | Cable |
| Enclosure rating IP | IP65 |
| Enclosure rating Nema (~) | 4 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| In scope of WEEE | Yes |
| Packing format | Multi pack |
| Parts Program name | EV260B |
| PFAS content [Yes/No] | No |
| Power consumption [W] DC | 23 W |
| Product accessories | Solenoid coil accessories |
| Quantity per packing format | 12 pc |
| REACH Candidate List substances | No |
| Rel. Humidity [% RH] [max] | 100 % |
| Rel. Humidity [% RH] [min] | 0 % |
| Serviceable | No |
| Supply voltage [V] DC | 24 V |
| Type designation | BM024D |
