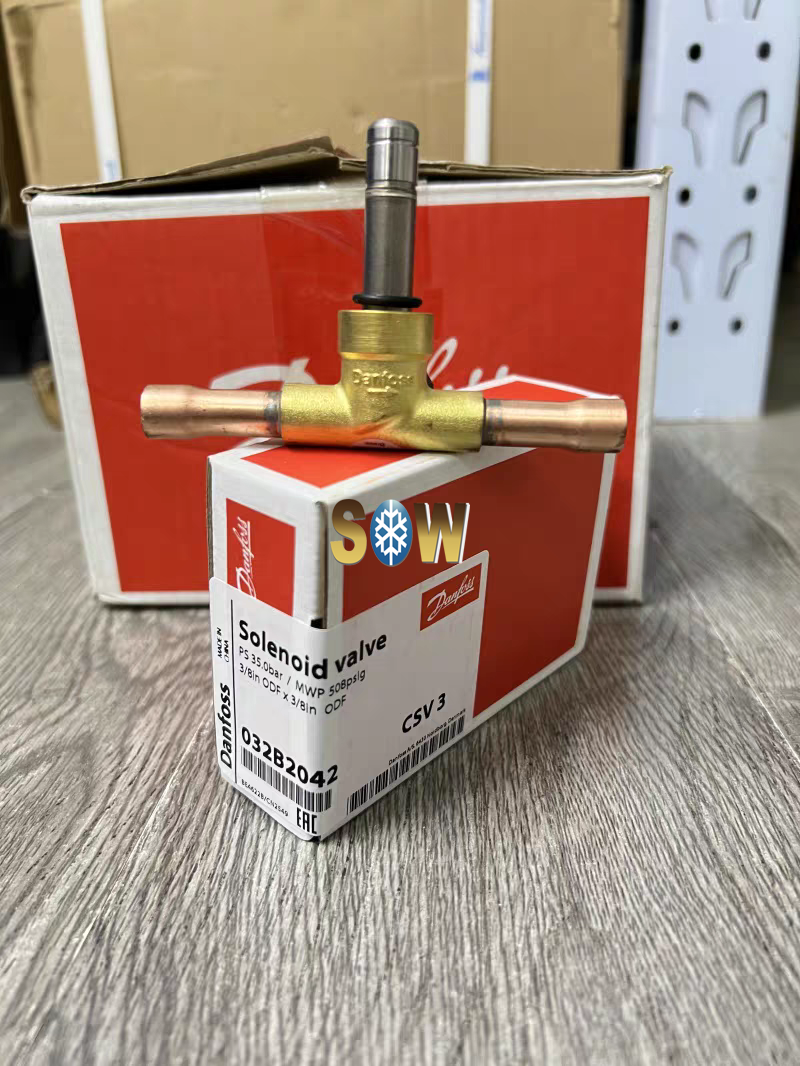

Danfoss Solenoid valve, CSV 3 032B2042

Product details

Gross weight	0.107 Kilogram
Net weight	0.08 Kilogram

Volume	0.336 Liter
EAN	5702428478632

Actuator system [mm]	9 mm
Ambient temperature	-20 - 55 °C
Ambient temperature range [°F] [max]	131 °F
Ambient temperature range [°F] [min]	-4 °F
Approval	EAC LLC CDC TYSK
Brand	Snow dragon
China RoHS compliance	Yes exceed limitations
Coil	No
Contain batteries	No
Cv value [gal/min]	0.35 gal/min
Direction	Straightway
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
Fluid Group	1 2
Function	NC
Inlet connection type	Solder, ODF
Inlet size [in]	3/8 in
Kv value [m³/h]	0.3 m³/h
Lubricants compatibility	AB MO PAG PAO POE PVE
Manual operation option	No
Max. Working Pressure [bar]	35 bar
Max. Working Pressure [psig]	508 psig
MaxOPD[bar] 7W AC	26 bar

MaxOPD[psi] 7W AC	376 psi
Medium temperature range [°C] [max]	105 °C
Medium temperature range [°C] [min]	-40 °C
Medium temperature range [°F] [max]	221 °F
Medium temperature range [°F] [min]	-40 °F
MinODP [bar]	0.05 bar
MinODP [psi]	1 psi
MOPD[bar/psi]	Coil Dependent
Orifice size [mm]	3.5 mm
Outlet connection type	Solder, ODF
Outlet size [in]	3/8 in
Packing format	Multi pack
PED category	Art. 4, par. 3
Product accessories	No
Product group	Solenoid valves
Product Name Description	Solenoid valve
Quantity per packing format	38 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R1234ze(E) R134a R22/R407C R290 R404A/R507A R452A R513A R600 R600a
SCIP dossier no.	d9d5728d-cd94-47e1-8ca4-3a2768e38bd9
Serviceable	No
Type	CSV 3
Type designation	Solenoid valve
