Location:Index--->Product Center >> HVAC Control cools spare parts >> Danfoss Temperature sensor, EKS 111, 084N1180

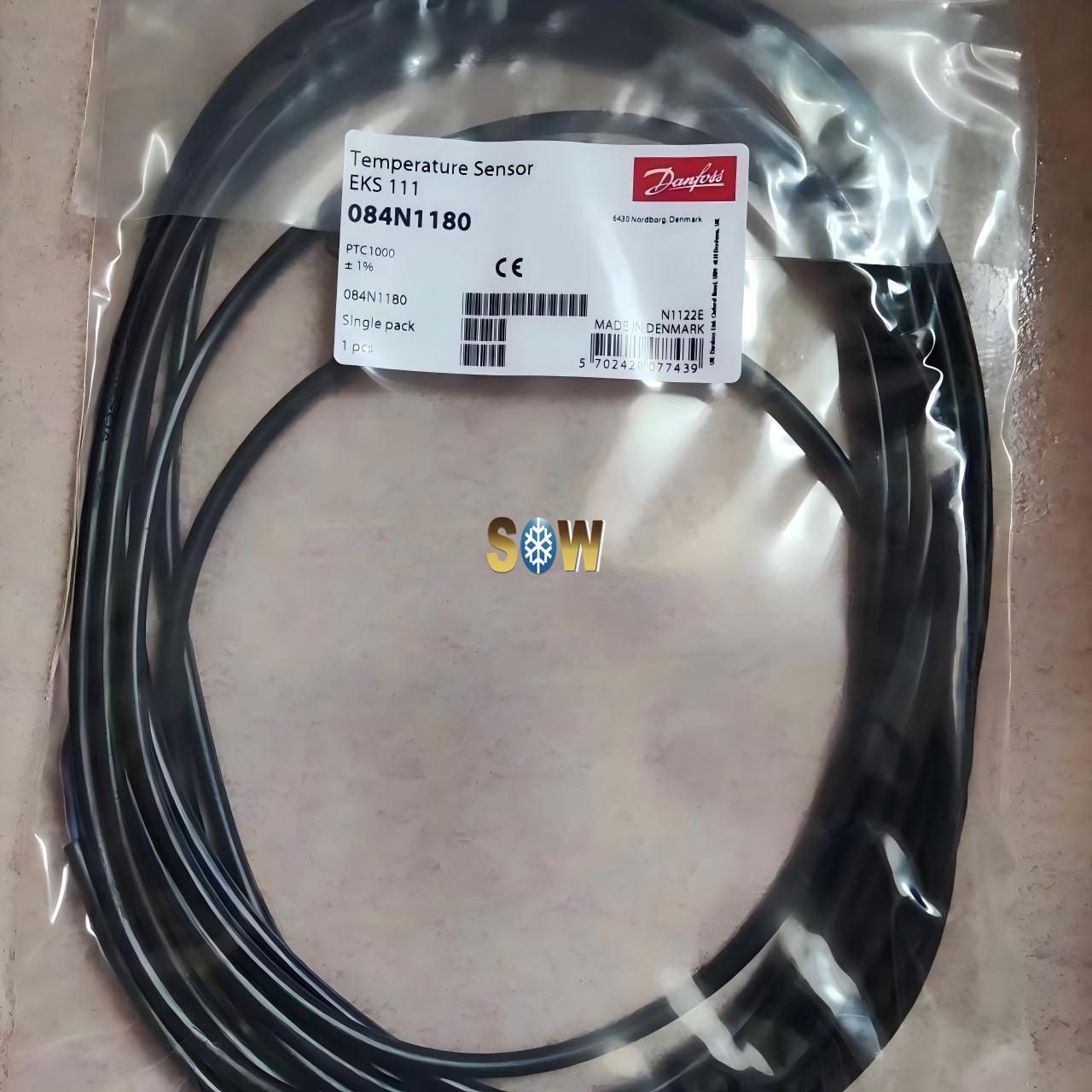

Name:Danfoss Temperature sensor, EKS 111, 084N1180
Brand:Danfoss
Model No.:EKS 111
Part No.:084N1180
Country of origion:Denmark
G.W:0.17kgs/pc
Cable length:6m

Product Description

Danfoss Temperature sensor, EKS 111, 084N1180

Product details

Gross weight 0.17 kg
Net weight 0.16 kg
EAN 5702428077439
Ambient temperature max. [°C] 80 °C
Ambient temperature max. [°F] 176 °F
Cable length [in] 236.22 in
Cable length [m] 6 m
Cable tempr. range [°C] [Max] 80 °C
Cable tempr. range [°C] [Min] -30 °C
Cable type PVC
Electrical connection CABLE WITH PINS
Electrical connection size 2 wire
Identical product 084N1173
Measuring range [°C] [Max] 150 °C
Measuring range [°C] [Min] -55 °C
Measuring range [°F] [Max] 302 °F
Measuring range [°F] [Min] -67 °F
Packing format Multi pack
Product family name EKS
Product group Sensors
Product name Temperature sensor
Protection tube diameter [in] 0.24 in
Protection tube diameter [mm] 6 mm
Protection tube length [in] 1.18 in
Protection tube length [mm] 30 mm
Protection tube material Stainless steel
PTC Element characteristic 990 Ohm/25°C
Quantity per packing format 20 pc
Sensor elem. resistance [Ohm] 1000 Ohm
Sensor element [pc] 1 pc
Sensor element tolerance ± 1%
Sensor element type PTC
Sensor Insert Fixed
Type EKS 111
Wires [pcs] 2 pc
Ambient temperature max. [°C] 80 °C
Ambient temperature max. [°F] 176 °F
Cable length [in] 236.22 in
Cable length [m] 6 m
Cable tempr. range [°C] [Max] 80 °C
Cable tempr. range [°C] [Min] -30 °C
Cable type PVC
Electrical connection CABLE WITH PINS
Electrical connection size 2 wire
Identical product 084N1173
Measuring range [°C] [Max] 150 °C
Measuring range [°C] [Min] -55 °C
Measuring range [°F] [Max] 302 °F
Measuring range [°F] [Min] -67 °F
Packing format Multi pack
Product family name EKS
Product group Sensors
Product name Temperature sensor
Protection tube diameter [in] 0.24 in
Protection tube diameter [mm] 6 mm
Protection tube length [in] 1.18 in
Protection tube length [mm] 30 mm
Protection tube material Stainless steel
PTC Element characteristic 990 Ohm/25°C
Quantity per packing format 20 pc
Sensor elem. resistance [Ohm] 1000 Ohm
Sensor element [pc] 1 pc
Sensor element tolerance ± 1%
Sensor element type PTC
Sensor Insert Fixed
Type EKS 111
Wires [pcs] 2 pc
